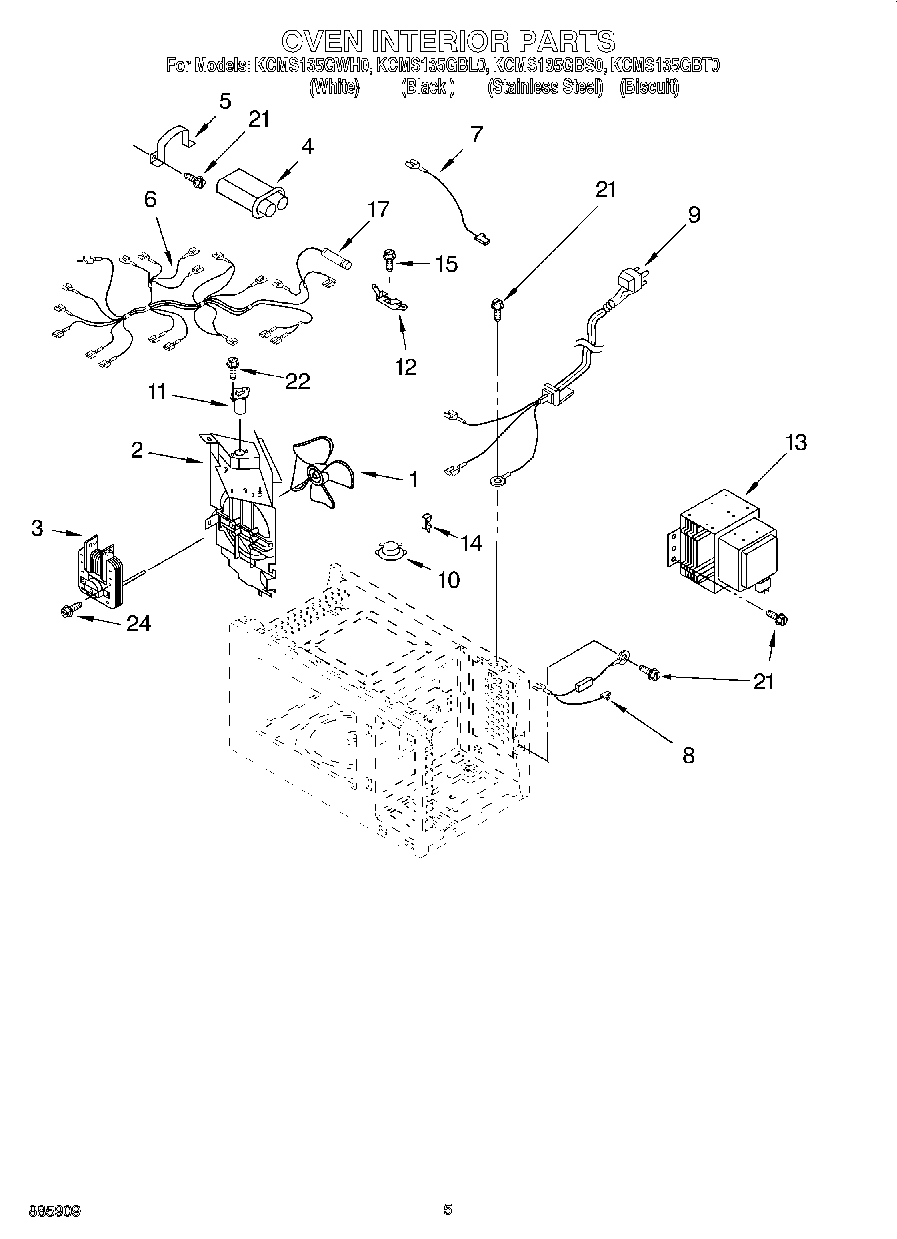

KCMS135GBT0 05 – OVEN INTERIOR, LITERATURE

Products

PositionProduct
Tech Sheet Installation/Instructions Trim Kits
Cook Guide Label
Use & Care Guide
Installation/Instructions Trim Kits (24“)
Installation/Instructions Trim Kits (30“)
Installation/Instructions Trim Kits (27“)
1Blower Fan
2Guide, Suction
3Motor, Fan
4H.V. Capacitor
5H.V.C Bracket
6Leadwire Assembly
7H.V. Cable Ass`y
8WP8205489 Whirlpool Microwave Voltage Wire
9Power Cord
10Thermostat
11Lamp, Baseless
12Holder, Fuse
13Magnetron
14Holder
15Screw
17WP8183507 Whirlpool Microwave Fuse
214344826 Whirlpool Refrigerator Screw
22Screw
24W10815455 Whirlpool Screw
