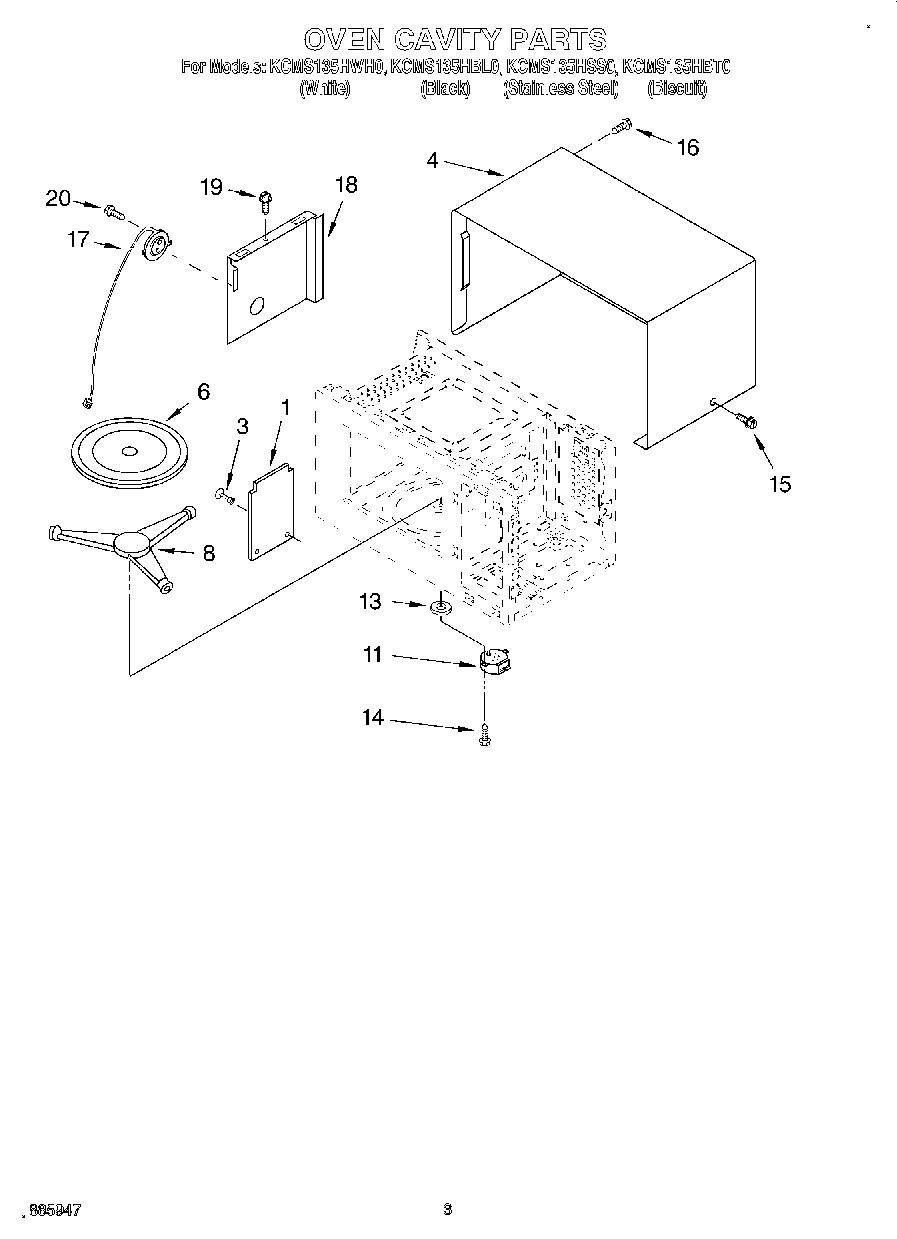

KCMS135HBL0 03 – OVEN CAVITY

Written by

Products

Position	Product
1	Canopy
3	WP4359508 Whirlpool Microwave Stir Rivet
4	Outer Case (Black)
4	Outer Case (White)
4	Outer Case (Biscuit)
4	Outer Case (Stainless)
6	WPW10267856 Whirlpool Microwave Cook Tray
8	Turntable Support
11	Motor, Synchronous
13	Seal, Water
14	Screw
15	Screw (Black)
15	Screw
16	Screw
17	Sensor
18	Sensor Duct
19	W11380570 Whirlpool Microwave Screw
20	Screw
