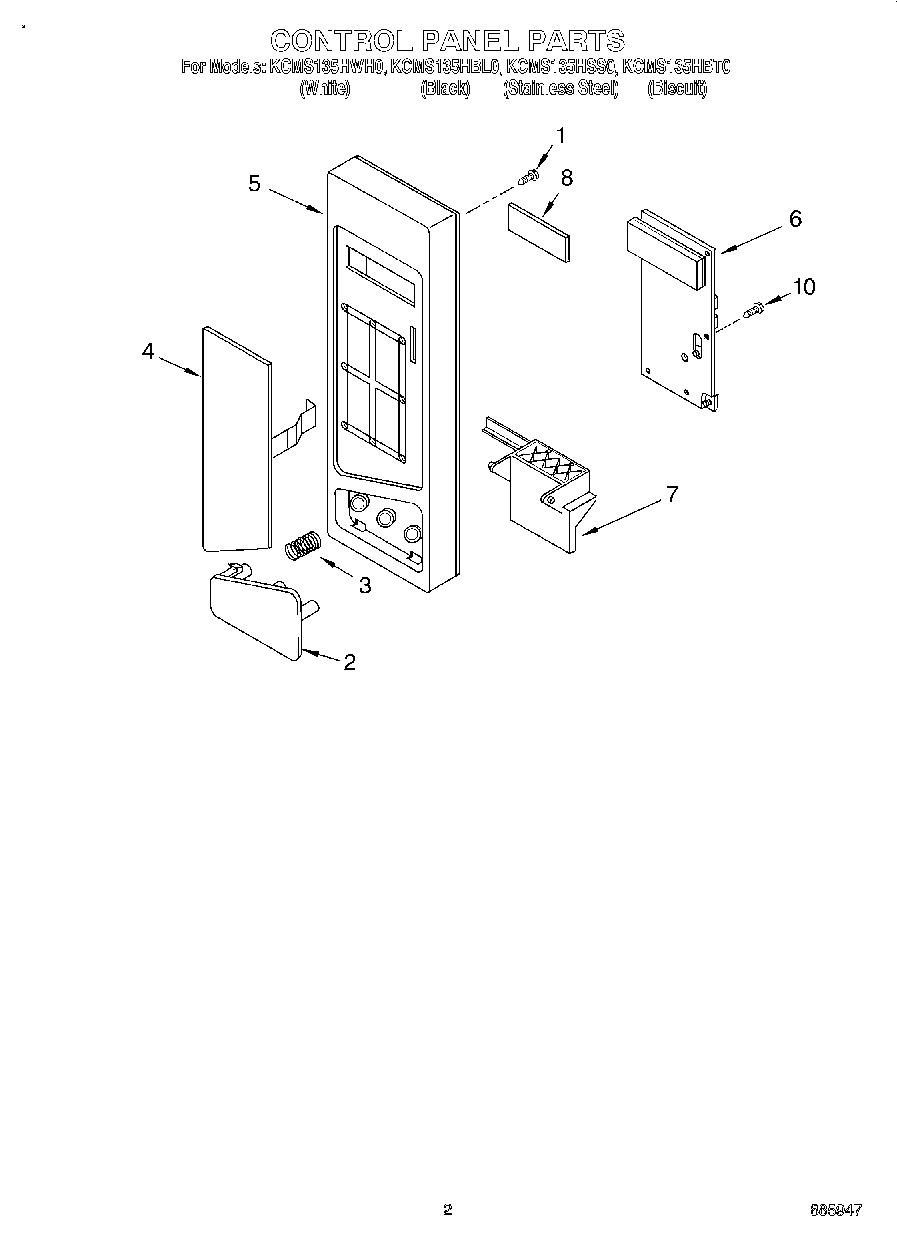

KCMS135HSS0 02 – CONTROL PANEL

Products

Position	Product
1	Screw
2	Release Button (Black)
2	Release Button (Stainless)
2	Release Button (White)
2	Release Button (Biscuit)
3	WP4158178 Whirlpool Microwave Spring
4	Key Membrane (Stainless Steel)
4	Key Membrane (Biscuit)
4	Key Membrane (Black)
4	Key Membrane (White)
5	Control Panel (Stainless)
5	Control Panel (Biscuit)
5	Control Panel (Black)
5	Control Panel (White)
6	P.C.B. Sub Assy
7	Lever, Release
8	Window
10	Screw
