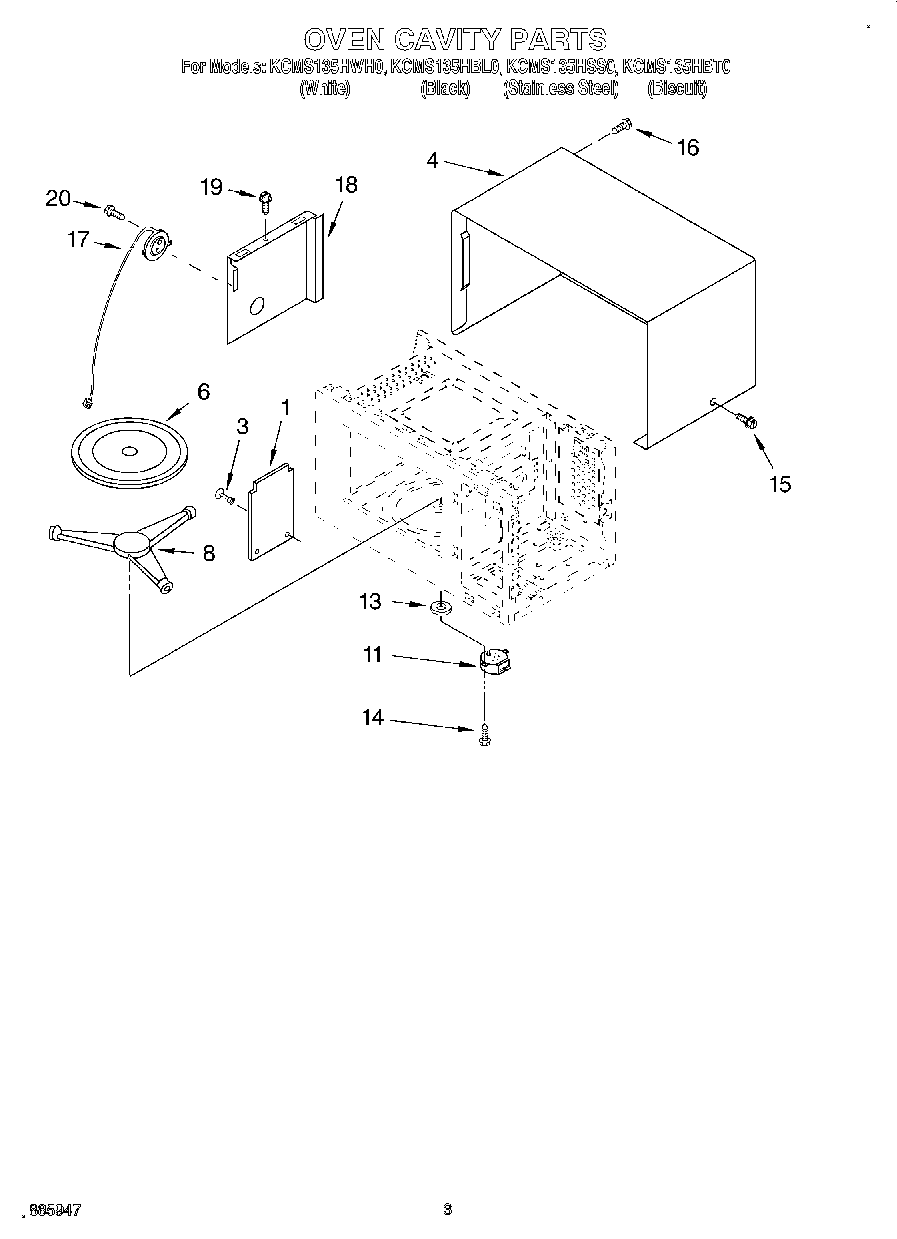

KCMS135HSS0 03 – OVEN CAVITY

Products

PositionProduct
1Canopy
3WP4359508 Whirlpool Microwave Stir Rivet
4Outer Case (Black)
4Outer Case (White)
4Outer Case (Biscuit)
4Outer Case (Stainless)
6WPW10267856 Whirlpool Microwave Cook Tray
8Turntable Support
11Motor, Synchronous
13Seal, Water
14Screw
15Screw (Black)
15Screw
16Screw
17Sensor
18Sensor Duct
19W11380570 Whirlpool Microwave Screw
20Screw
