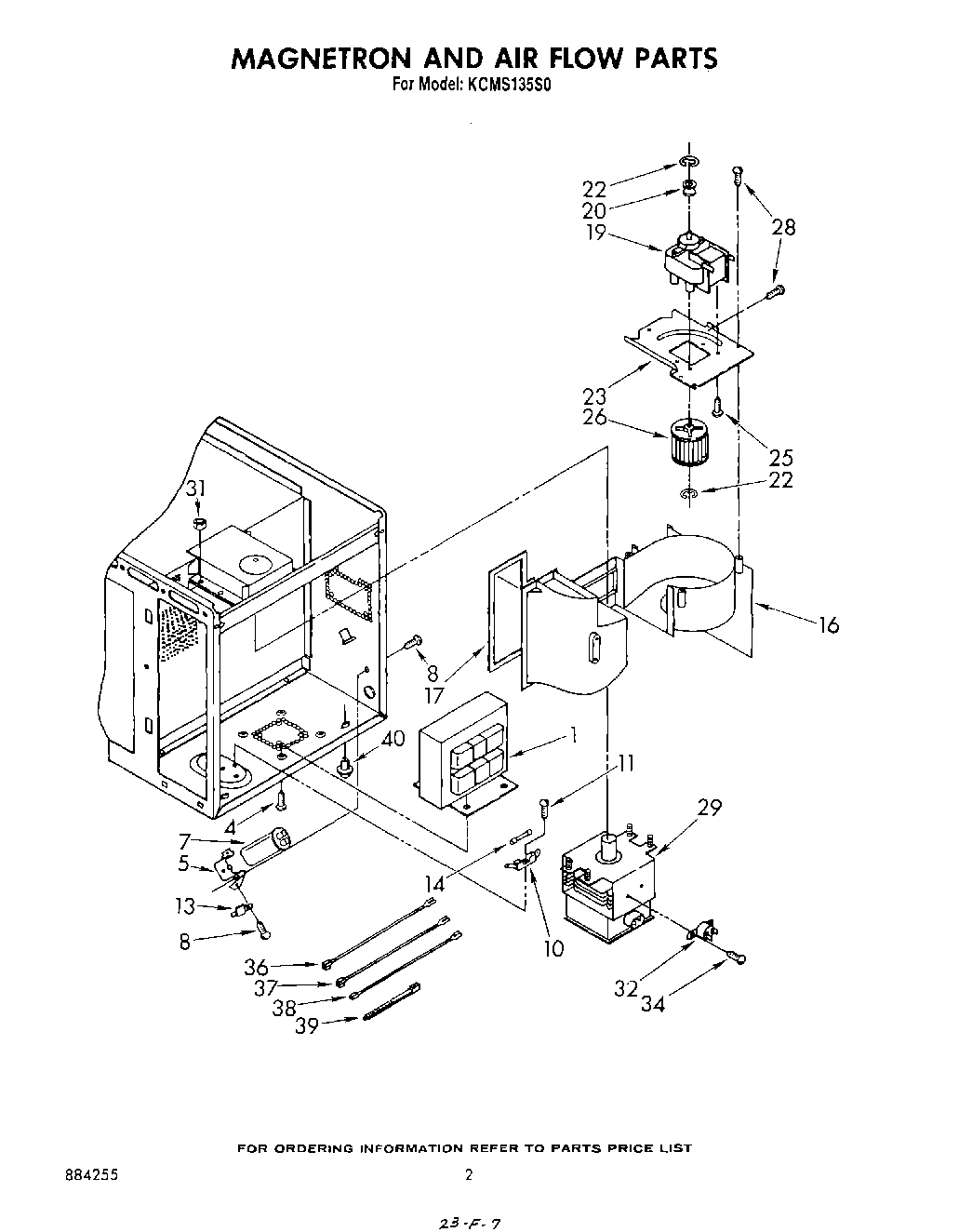

KCMS135S0 02 – MAGNETRON AND AIR FLOW

KCMS135S0 02 – MAGNETRON AND AIR FLOW

Written by

in

KCMS135S0 02 – MAGNETRON AND AIR FLOW

Products

PositionProduct
1Transformer
4Screw, 10-32 x 1/2 Hex Washer W/Ground Ring (10)
5Bracket, Capacitor
7Capacitor
7capacitor (alt.)
8screw
10Fuse Holder
11Screw
13rectifier, high voltage (alt.)
13rectifier, high voltage
14Fuse (15 Amp) (Alt.)
14Fuse (15 Amp)
16Air Duct (Horizontal)
17Seal, Air Duct
19Transmotor
20Pulley, Motor
22“E“ Ring
23Bracket, Motor
25WP486579 Whirlpool Air Conditioner Screw
26Wheel, Blower
28Screw, 11-16 x 1/2 Double Load Space Thread (5)
29Magnetron (Alt.)
29Magnetron
29Magnetron (Alt.)
29Magnetron (Alt.)
31Flange Nut (4)
32Thermal Protector
32Thermal Protector (Alt.)
34Screw, 6A x 3/8 (2)
36Jumper, High Voltage Black 6-5/16“
37Jumper, High Voltage Gray 8-11/16“
38Jumper, High Voltage Red (6-5/16“)
39WPW10339879 Whirlpool Wire Tie
40Foot, Base (4)
