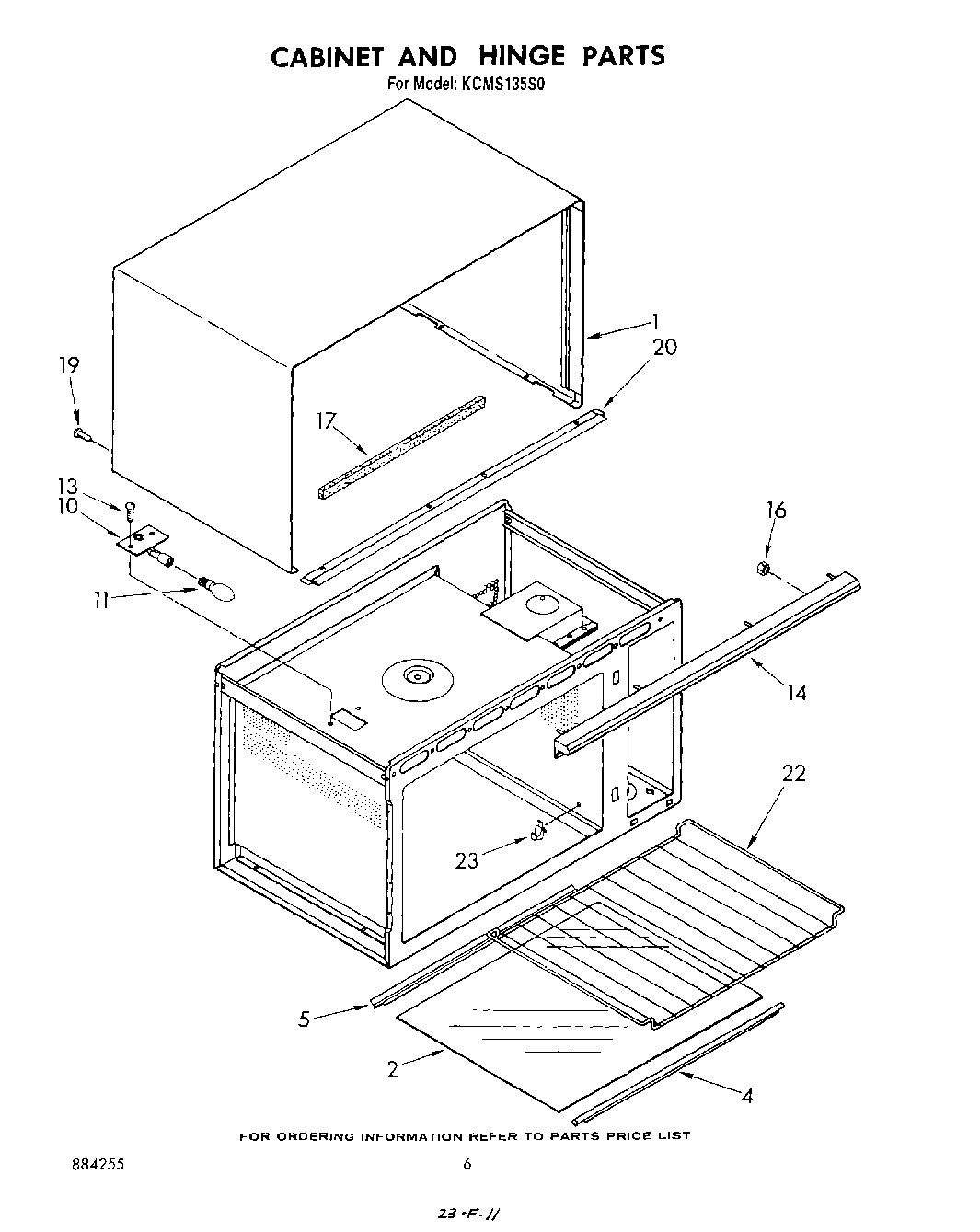

KCMS135S0 04 – CABINET AND HINGE

Written by

Products

Position	Product
1	Wrapper, Cabinet
2	Shelf, Microwave (Install with Silastic 482338)
4	Trim, Shelf (Front)
5	Trim, Shelf (Rear)
10	Snap-In Socket
11	WP3395618 Whirlpool Light Bulb
13	screw
14	Grille, Air
16	Nut (3)
17	Seal, Foam
19	WP488729 Whirlpool Refrigerator Door Screw
20	Trim, Wrapper Lower
22	rack, wire
23	WP3149478 Whirlpool Microwave Support
