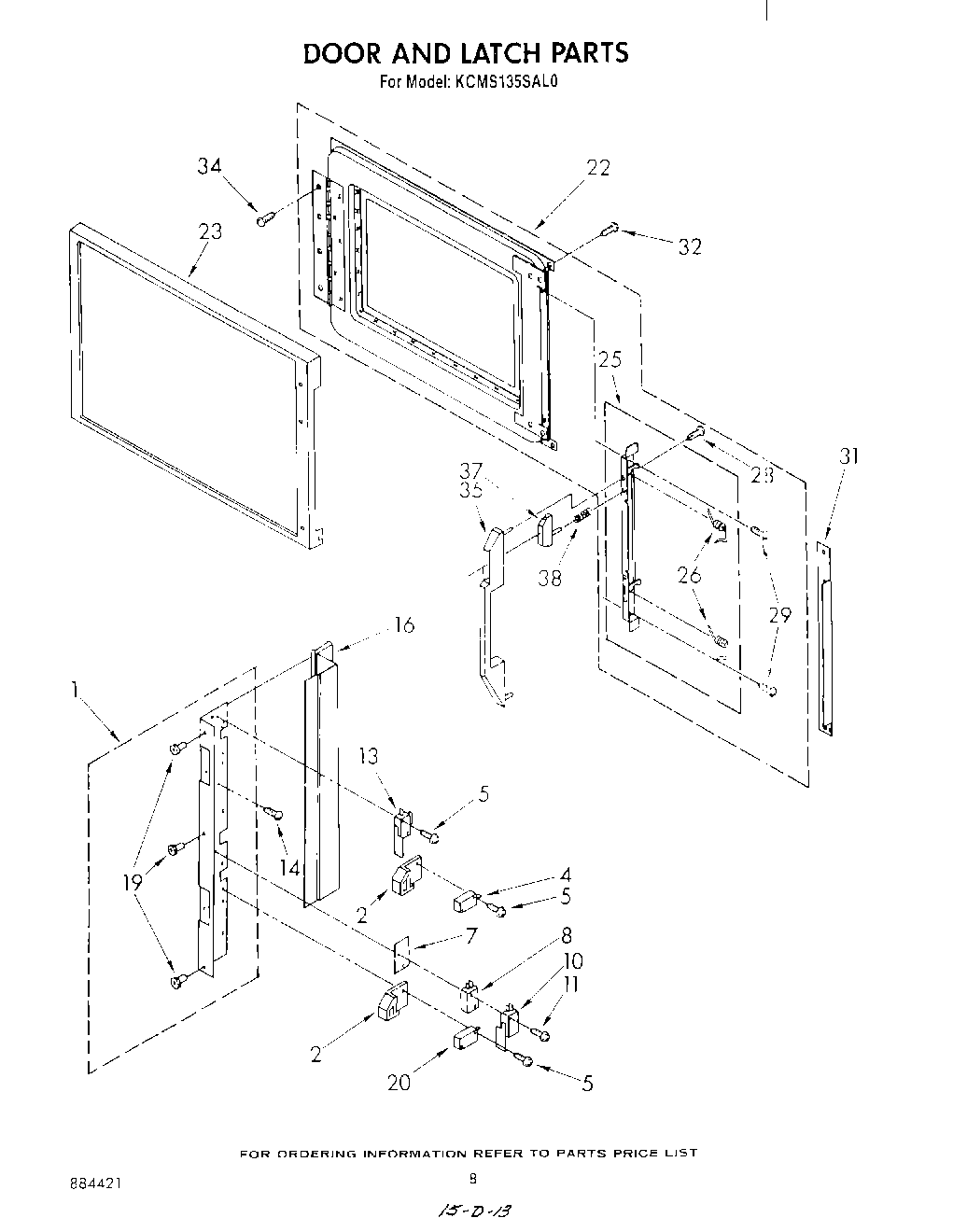

KCMS135SAL0 06 – DOOR AND LATCH , LITERATURE AND OPTIONAL

Products

Position	Product
	WPL LIT884421
	WPL LIT3147005
	Tech Sheet
	Guide, Use & Care
1	Bracket, Catch
2	Catch (2)
5	WPL 312717
7	Insulator
8	Switch
8	Switch (Alt.)
8	Spring
10	Switch, Light Monitor (Alt.)
10	Switch, Light/ Monitor
10	Switch, Light Monitor (Alt.)
11	Screw, 4-40 x 10 (2)
13	Switch, Miniature
14	WPL 309080
16	shield
19	Rivet, Pop (3)
20	814037 Whirlpool Microwave Switch
22	Door, Inner
23	Frame, Door
25	Latch Assembly
26	Spring, Torsion (2)
28	303776 Whirlpool Dishwasher Screw
29	Screw (2)
31	End Cap
32	Screw, 8-22 (5)
34	WPW10068250 Whirlpool Dishwasher Screw
35	Handle, Door
37	Button, Door Handle
38	Rear Top Burner-Lt. or Rt. (Inc`s 64 & 65)
38	Cord Brown
38	Built-in Kits (30“)
38	WP482338 Whirlpool Refrigerator Adhesive
38	24“ Built-In Kit
38	27“built-in Kit
38	WP261869 Whirlpool Microwave Paint
38	Wire, 25“ Roll (White 14 GA.)
38	Wire, 25` Roll (Red 14 Ga.)
38	Wire, 25` Roll (Black 14 Ga.)
38	242831 Whirlpool Oven Wire
38	Wire (14 Ga. 150 c Blue)
38	261900 Whirlpool Microwave Spray
38	WPL 832985
38	WPL 591014
38	1
38	Wire (14 Ga. 200 c Brown)
38	18 Ga. 80~c Rating (Red)
38	Paint, Cord Brown Spray (13 Oz.)
38	Wire (12 Ga. 150 c Black)
38	Wire (14 Ga. 150 c Yellow)
38	Wire (14 Ga. 150 c Orange)
38	Wire (14 Ga. 150 c Green)
38	Wire (14 Ga. 150 c Brown)
38	Wall Mount Kit
