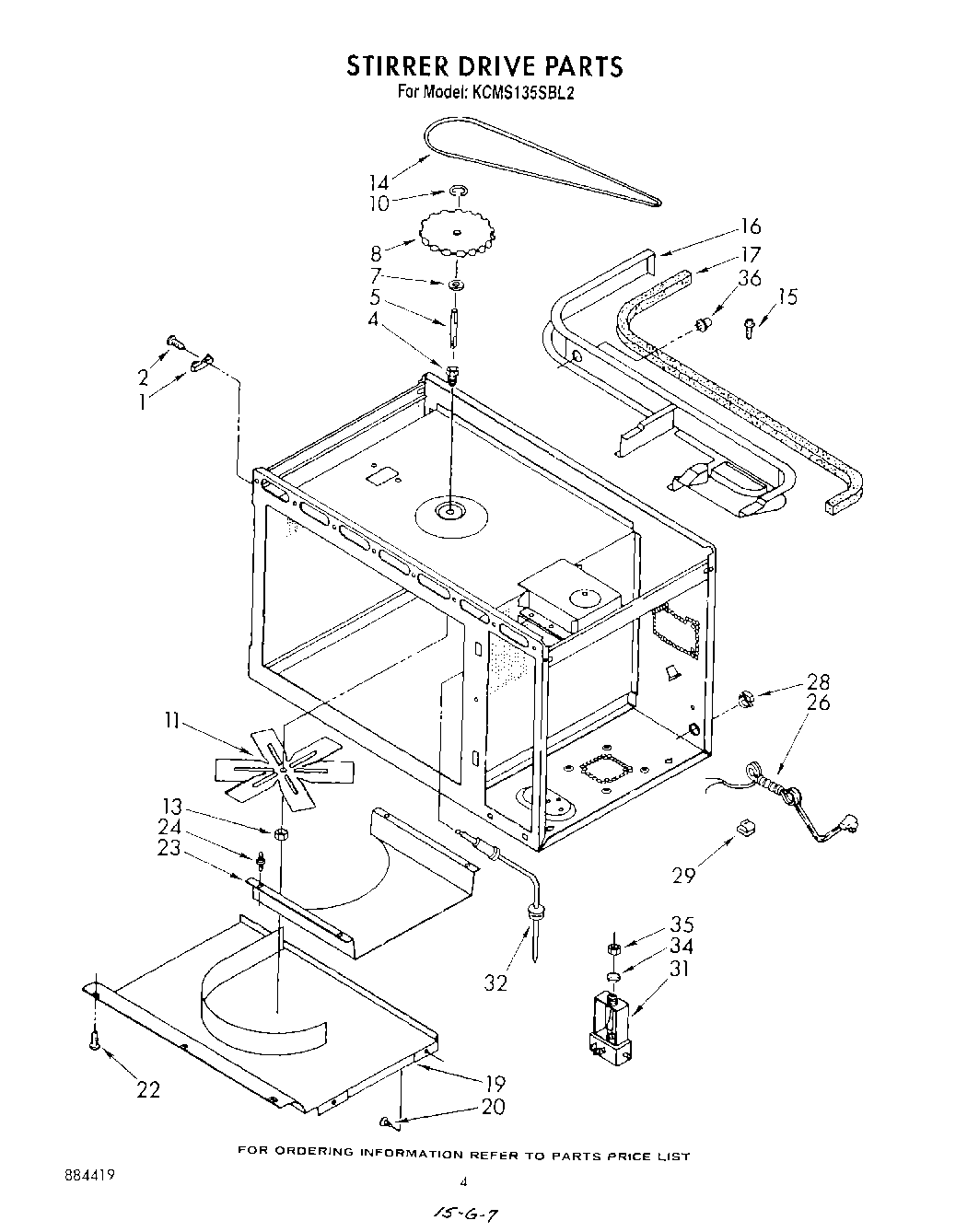

KCMS135SBL2 03 – STIRRER DRIVE

Products

Position	Product
1	Fuse, Thermal
2	screw
4	Bushing, Stirrer
5	Shaft, Stirrer
7	Washer, Nylon
8	Pulley, Stirrer Blade
10	“E“ Ring
11	Stirrer Blade
13	WP487939 Whirlpool Refrigerator Nut
14	WP313646 Whirlpool Microwave Drive Belt
15	Fastener (2)
16	Baffle, Air
17	Seal, Foam
19	Silicone Rubber Gasket
20	Fastener (4)
22	screw, 8-32 x 1/2 (3)
23	Plate, Tuning
24	Support (4)
26	Power, Cord (Alt.)
26	Power, Cord
26	Power, Cord (Alt.)
28	Strain Relief, Bushing
29	Clip
31	Probe Jack
32	(Alt.)
34	Washer, Internal Lock
35	Nut
36	Sensor, Gas
36	Screw
