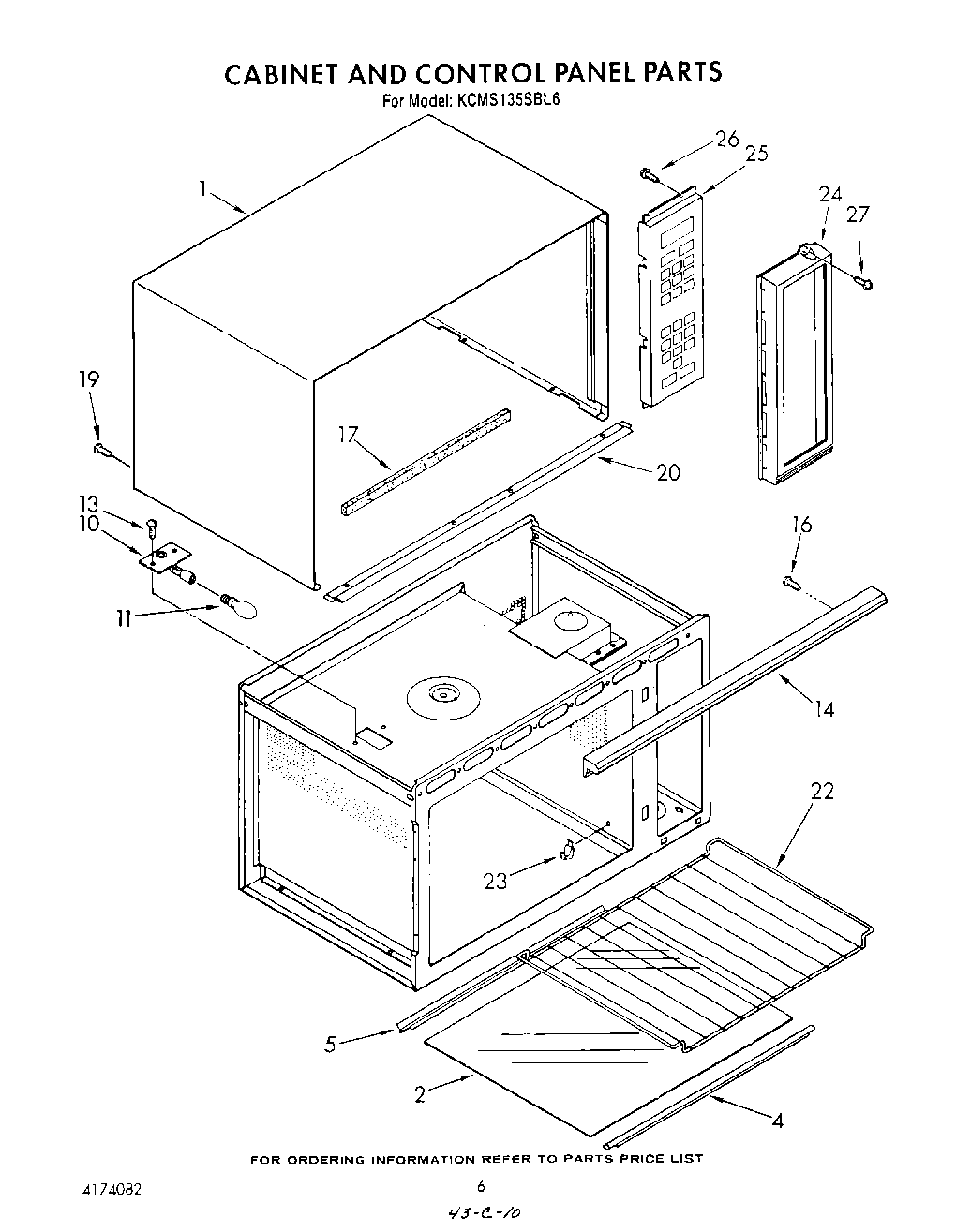

KCMS135SBL6 04 – CABINET AND CONTROL PANEL

Products

PositionProduct
1Wrapper, Cabinet
2W10841140 Whirlpool Dishwasher Adhesive
2Shelf, Microwave (Install with Silastic 482338)
4Trim, Shelf (Front)
5Trim, Shelf (Rear)
10Snap-In Socket
11WP3395618 Whirlpool Light Bulb
13screw
14Grill, Air (Black)
16screw (3)
17Seal, Foam
20Trim, Wrapper Lower
20WP488729 Whirlpool Refrigerator Door Screw
22rack, wire
23WP3149478 Whirlpool Microwave Support
24frame, control panel
25microcomputer
26Screw
27Screw 8-32 X 1/2
