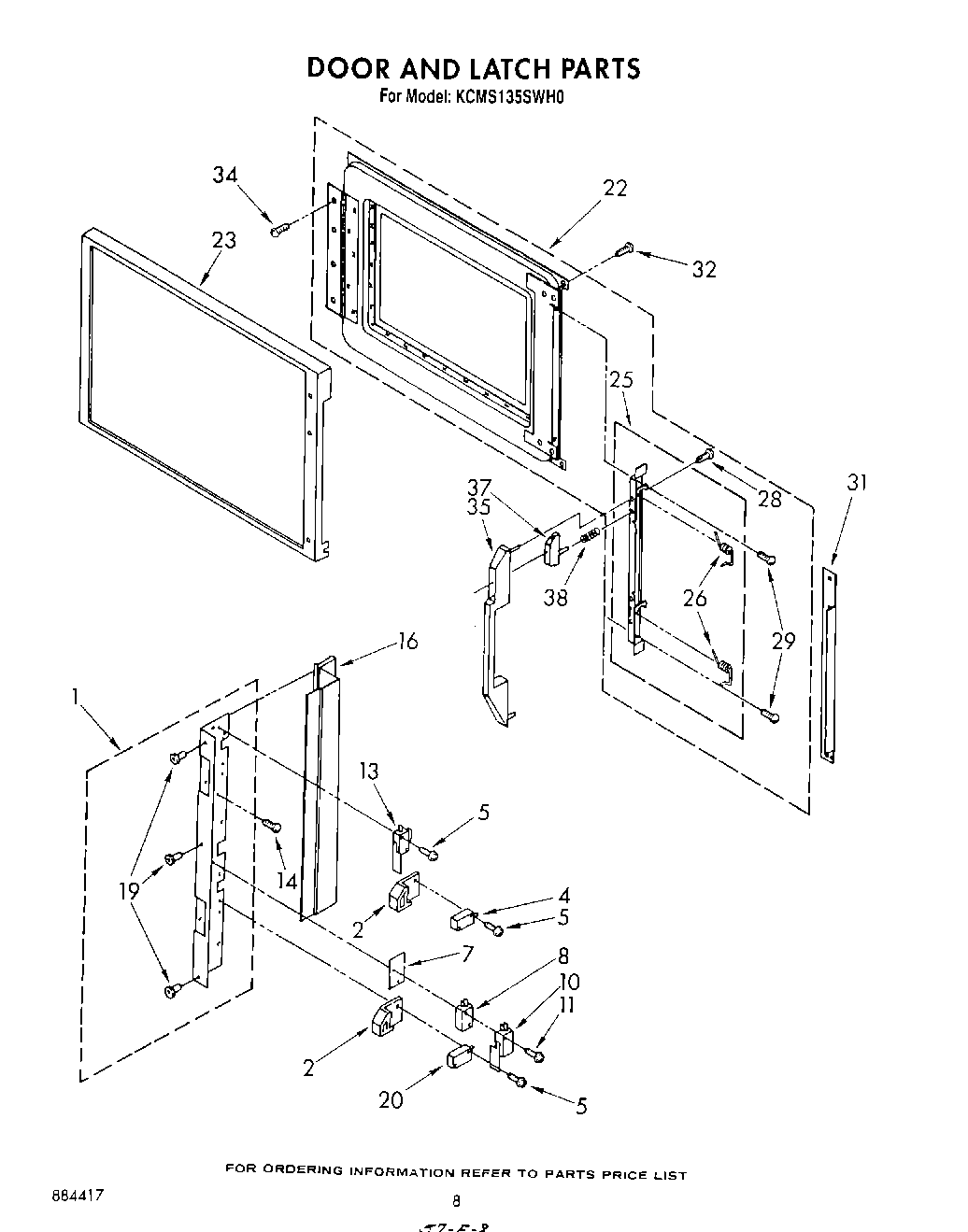

KCMS135SWH0 06 – DOOR AND LATCH

Products

PositionProduct
1Bracket, Catch
2Catch (2)
5WPL 312717
7Insulator
8Switch
8Switch (Alt.)
8Spring
10Switch, Light Monitor (Alt.)
10Switch, Light Monitor (Alt.)
10Switch, Light/ Monitor
11Screw, 4-40 x 10 (2)
13Switch, Miniature
14WPL 309080
16shield
19Rivet, Pop (3)
20814037 Whirlpool Microwave Switch
22Door, Inner
23Outer Door Asm. (White Unit)
25Latch Assembly
26Spring, Torsion (2)
28303776 Whirlpool Dishwasher Screw
29Screw (2)
31End Cap (White)
32Screw, 8-22 (5)
34WPW10068250 Whirlpool Dishwasher Screw
35Handle, Door (White)
37Button, Door Handle
38Rear Top Burner-Lt. or Rt. (Inc`s 64 & 65)
