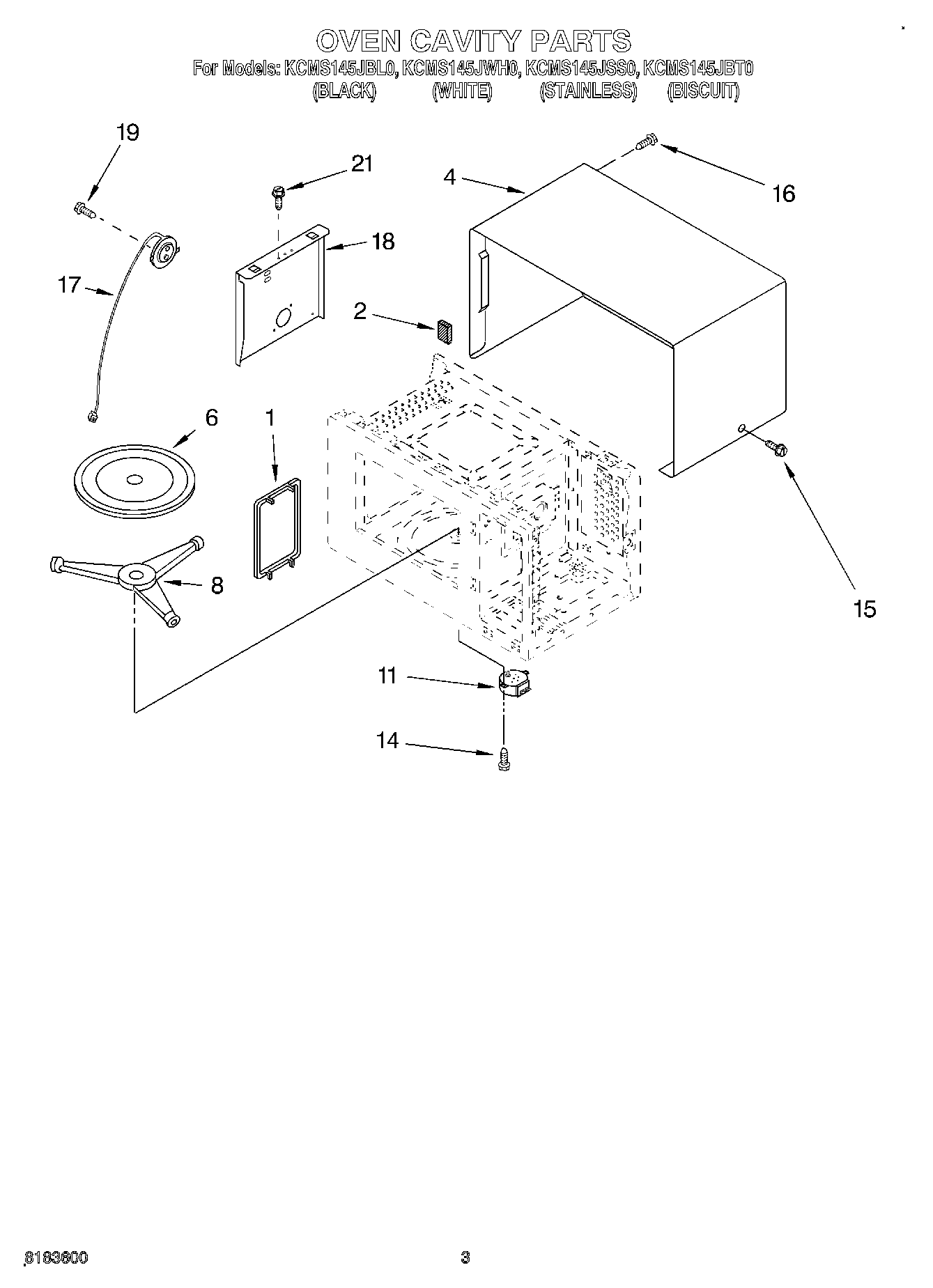

KCMS145JBT0 03 – OVEN CAVITY

KCMS145JBT0 03 – OVEN CAVITY

Written by

in

KCMS145JBT0 03 – OVEN CAVITY

Products

PositionProduct
1Canopy
2Cushion
4Outer Case (Black)
4Outer Case (Biscuit)
4Outer Case (Stainless)
4Outer Case (White)
6WPW10267856 Whirlpool Microwave Cook Tray
8Turntable Support
11WPW10159107 Whirlpool Microwave Turn Motor
14Screw
15Screw
15W11245710 Whirlpool Refrigerator Screw
16Screw
17Sensor, Humidity
18Guide, Sensor
19Screw
21W11380570 Whirlpool Microwave Screw
