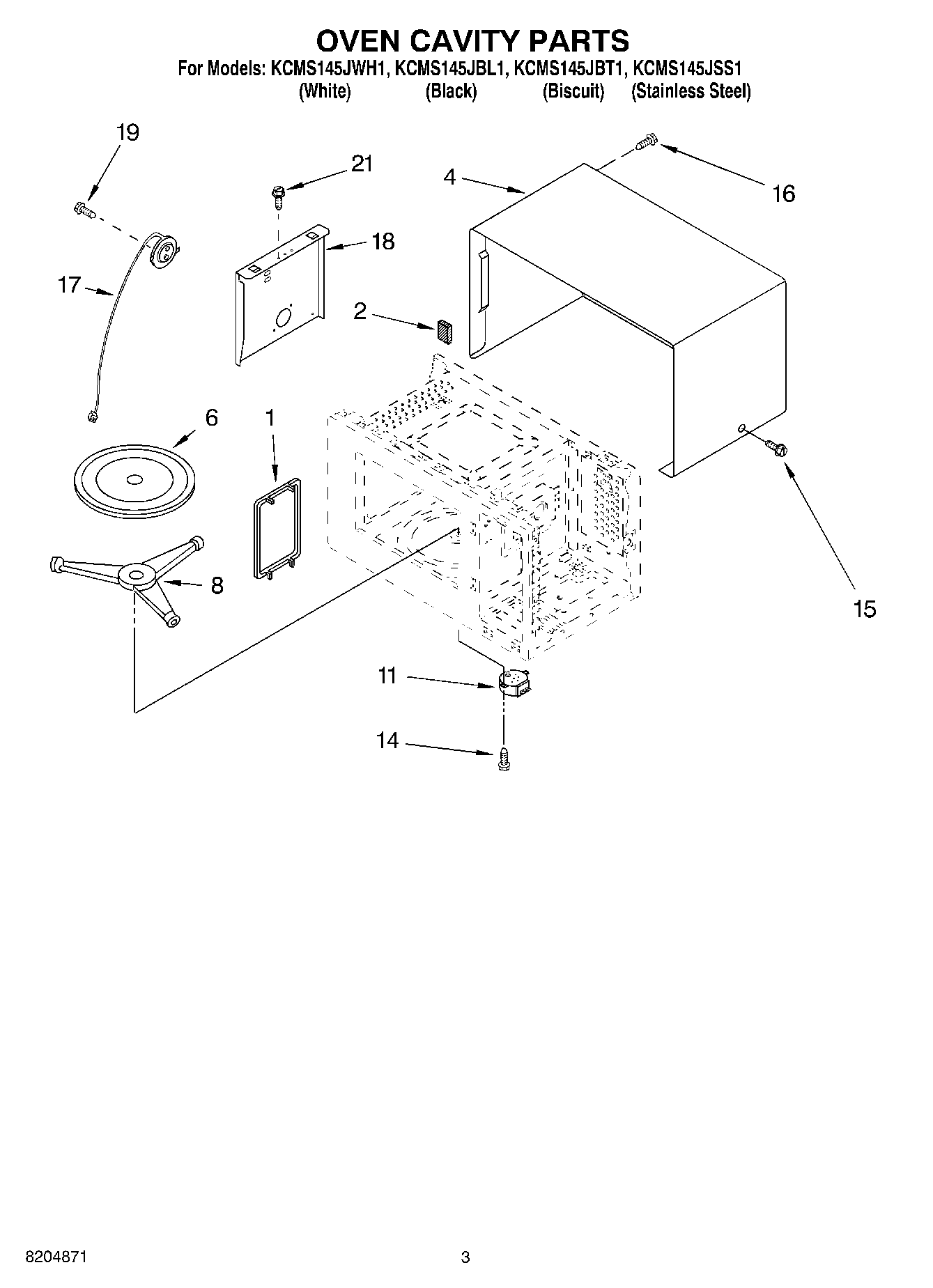

KCMS145JBT1 03 – OVEN CAVITY PARTS

Products

Position	Product
1	Canopy
2	Cushion
4	Outer Case (Biscuit)
4	Outer Case (Stainless)
4	Outer Case (White)
4	Outer Case (Black)
6	WPW10267856 Whirlpool Microwave Cook Tray
8	Turntable Support
11	WPW10159107 Whirlpool Microwave Turn Motor
14	Screw
15	W11245710 Whirlpool Refrigerator Screw
15	Screw
16	Screw
17	Sensor, Humidity
18	Guide, Sensor
19	Screw
21	W11380570 Whirlpool Microwave Screw
