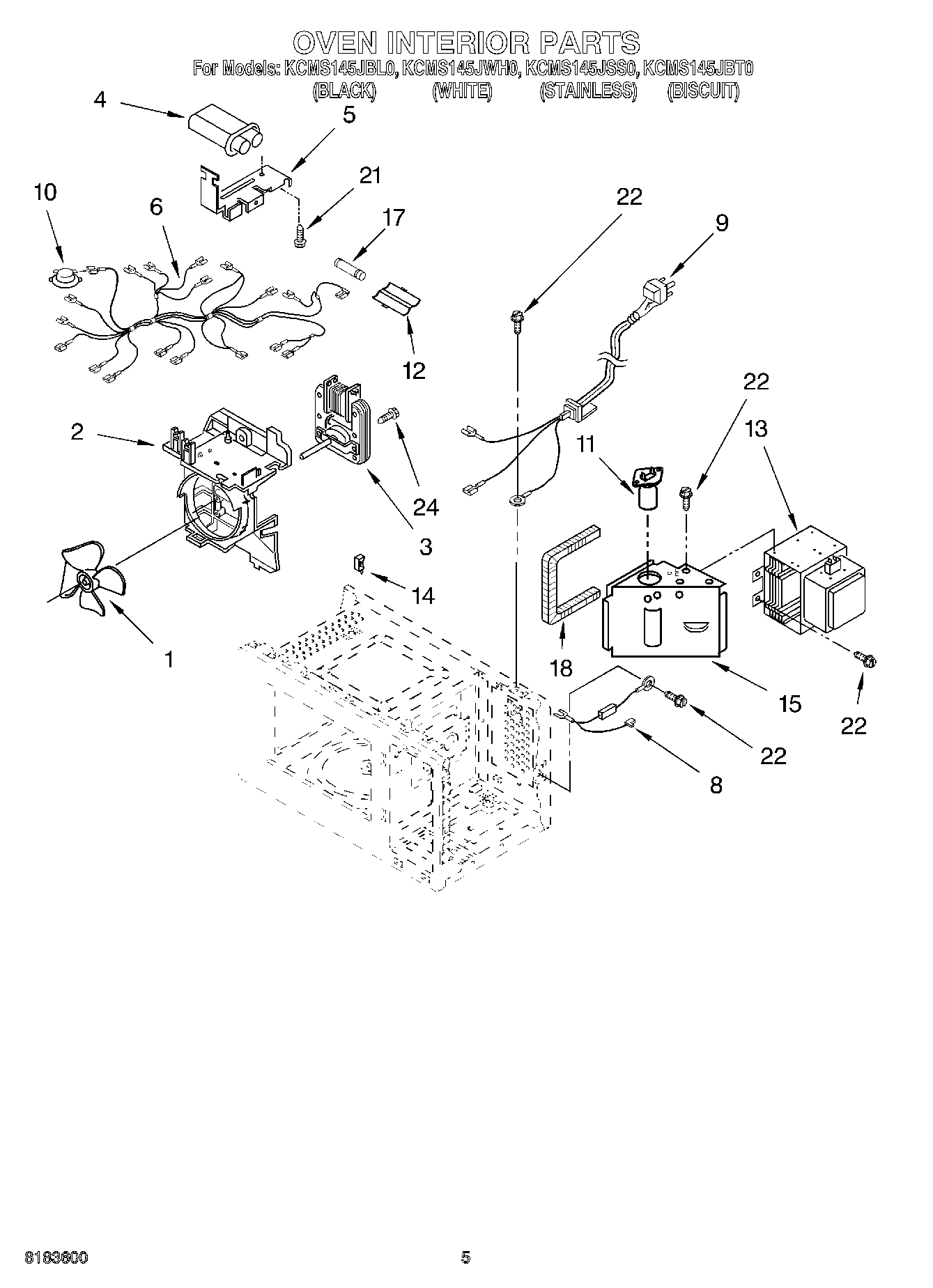

KCMS145JSS0 05 – OVEN INTERIOR

Products

Position	Product
1	8184292 Whirlpool Microwave Fan Blade
2	Guide, Suction
3	Motor, Fan
4	WP8184813 Whirlpool Microwave Magnetron Capacitor
5	Bracket, H.V.C.
6	Leadwire Assembly
8	WP8205489 Whirlpool Microwave Voltage Wire
9	Cord, Power
10	Thermostat
11	Lamp, Baseless
12	Fuse Cap
13	W10859575 Whirlpool Magnetron
14	Holder
15	Duct, Air
17	WP8183507 Whirlpool Microwave Fuse
18	Cushion (Not Serviceable)
21	Screw
22	4344826 Whirlpool Refrigerator Screw
24	Screw
