KCMS145JWH0 02 – CONTROL PANEL

KCMS145JWH0 02 – CONTROL PANEL

Written by

in

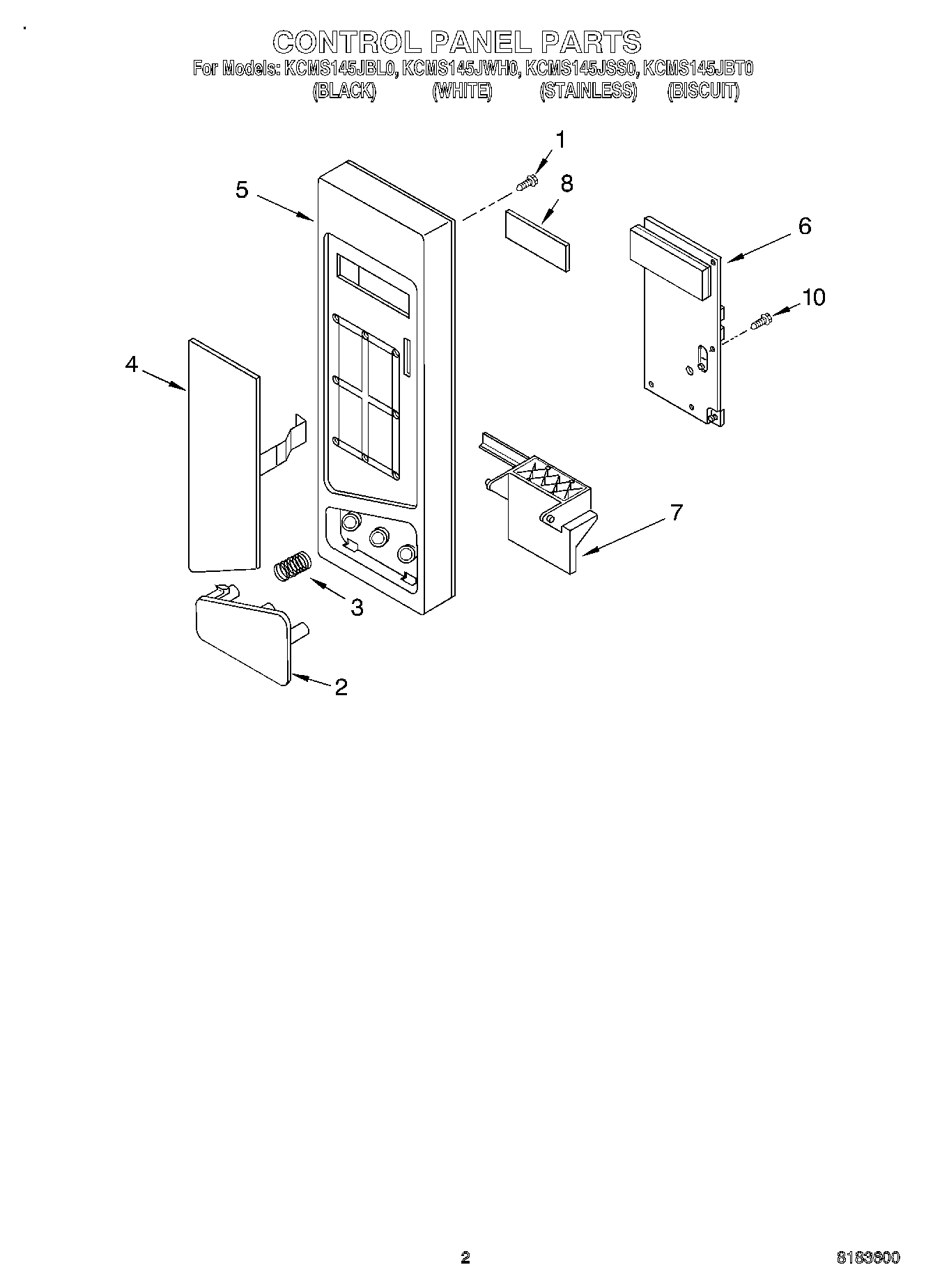

KCMS145JWH0 02 – CONTROL PANEL

Products

PositionProduct
1Screw
2Release Button (Black)
2Release Button (Stainless)
2Release Button (White)
2Release Button (Biscuit)
3WP4158178 Whirlpool Microwave Spring
4Key Membrane (White)
4Key Membrane (Black)
4Key Membrane (Biscuit)
4Key Membrane (Stainless)
5Control Panel (Biscuit)
5Control Panel (Black)
5Control Panel (White)
5Control Panel (Stainless)
6P.C.B Sub Assembly
7Lever, Release
8Window
10Screw
