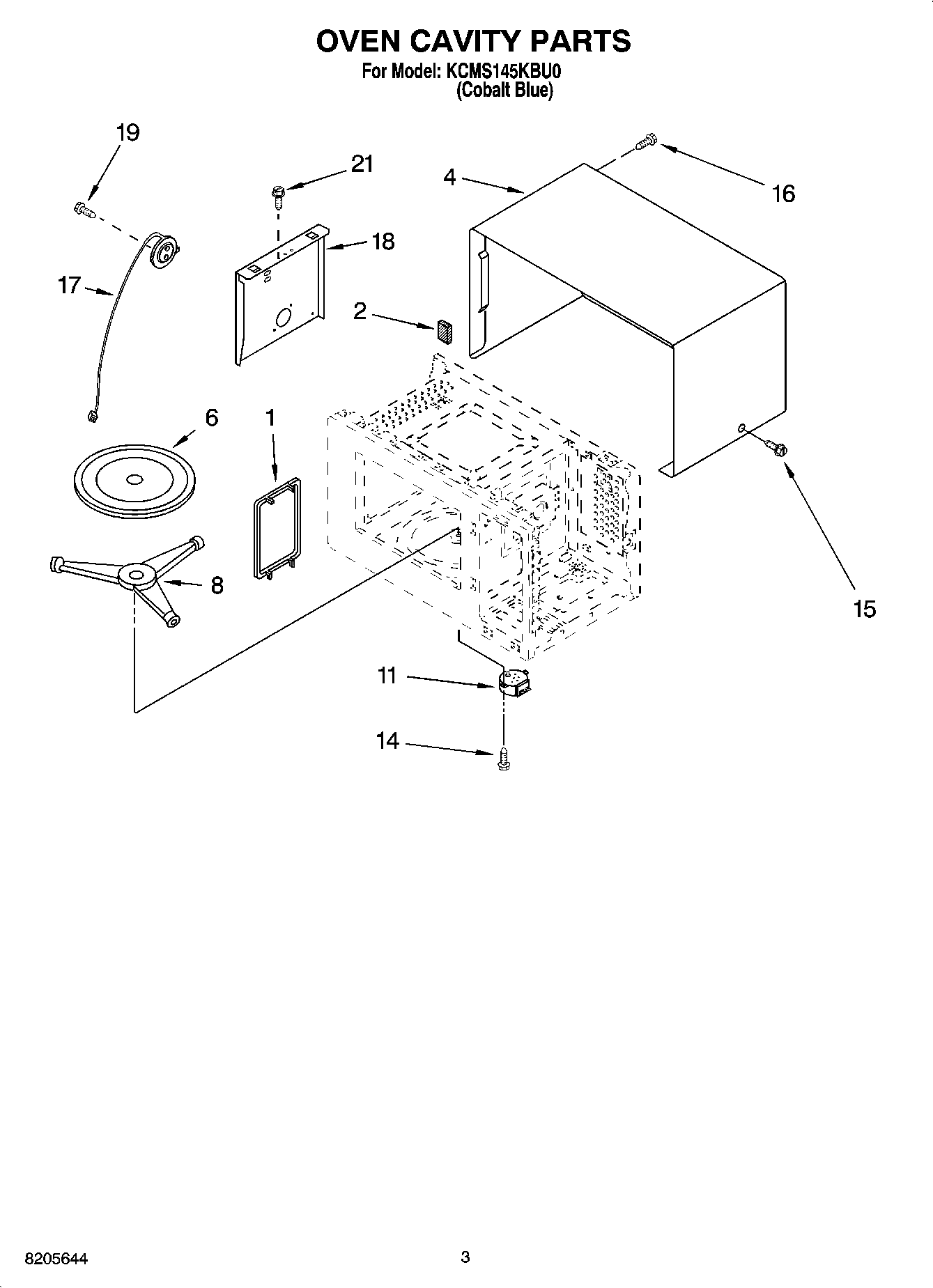

KCMS145KBU0 03 – OVEN CAVITY PARTS

Written by

Products

Position	Product
1	Canopy
2	CUSHION
4	Outer Case
6	WPW10267856 Whirlpool Microwave Cook Tray
8	Turntable Support
11	WPW10159107 Whirlpool Microwave Turn Motor
14	Screw
15	W11245710 Whirlpool Refrigerator Screw
16	Screw
17	Sensor, Humidity
18	Guide, Sensor
19	Screw
21	W11380570 Whirlpool Microwave Screw
