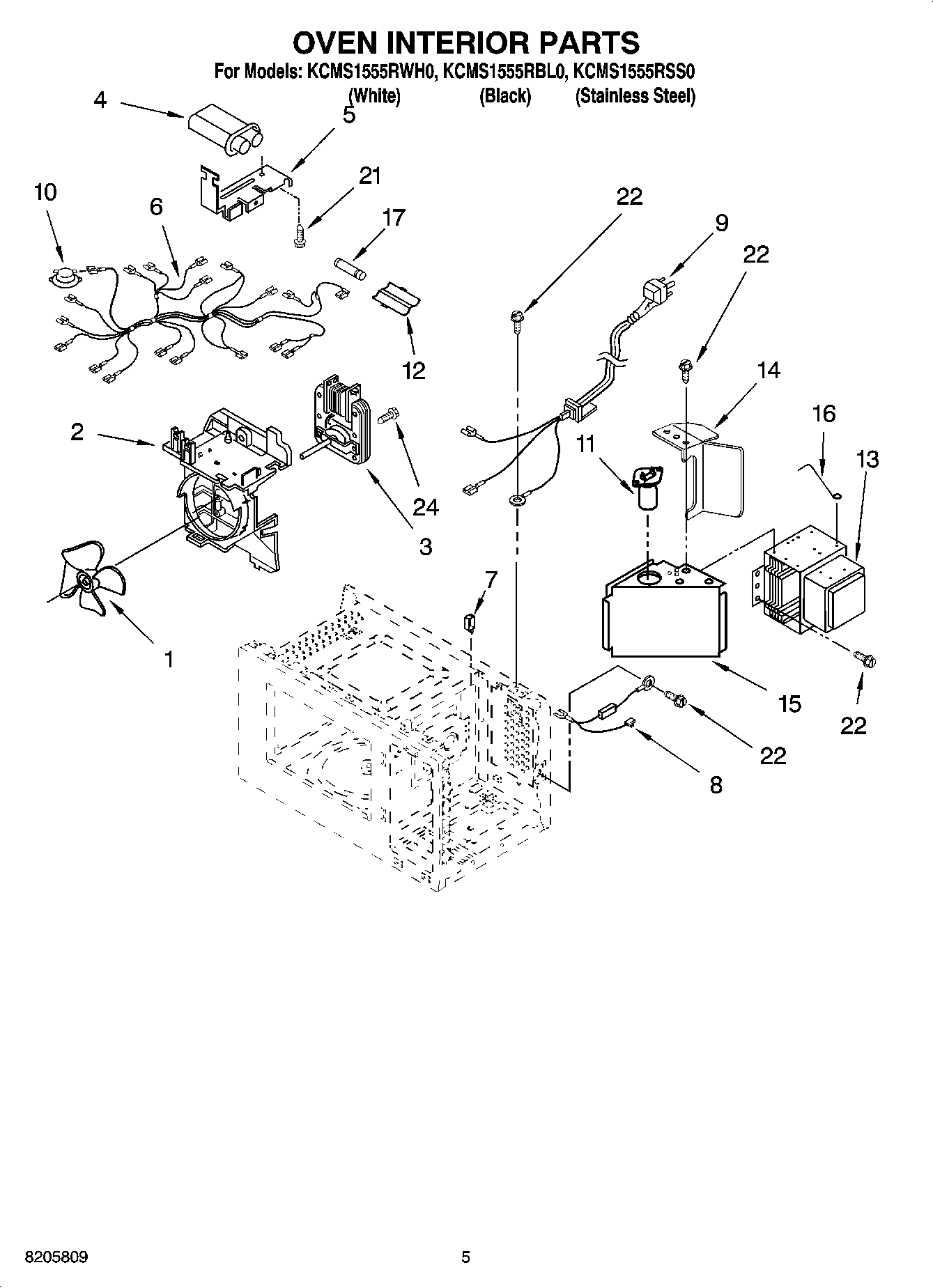

KCMS1555RBL0 05 – OVEN INTERIOR PARTS

KCMS1555RBL0 05 – OVEN INTERIOR PARTS

Written by

in

KCMS1555RBL0 05 – OVEN INTERIOR PARTS

Products

PositionProduct
1Blade, Fan
2Guide, Suction
3Motor, Fan
4WP8184813 Whirlpool Microwave Magnetron Capacitor
5H.V.C Bracket
6Leadwire Assembly
7Holder
8WP8205489 Whirlpool Microwave Voltage Wire
9Power Cord
10Thermostat
11Lamp, Baseless
12Cap, Fuse
13W10859575 Whirlpool Magnetron
14Bracket
15Duct, Air
16Bracket, Support
17WP8183507 Whirlpool Microwave Fuse
21Screw
224344826 Whirlpool Refrigerator Screw
24Screw
