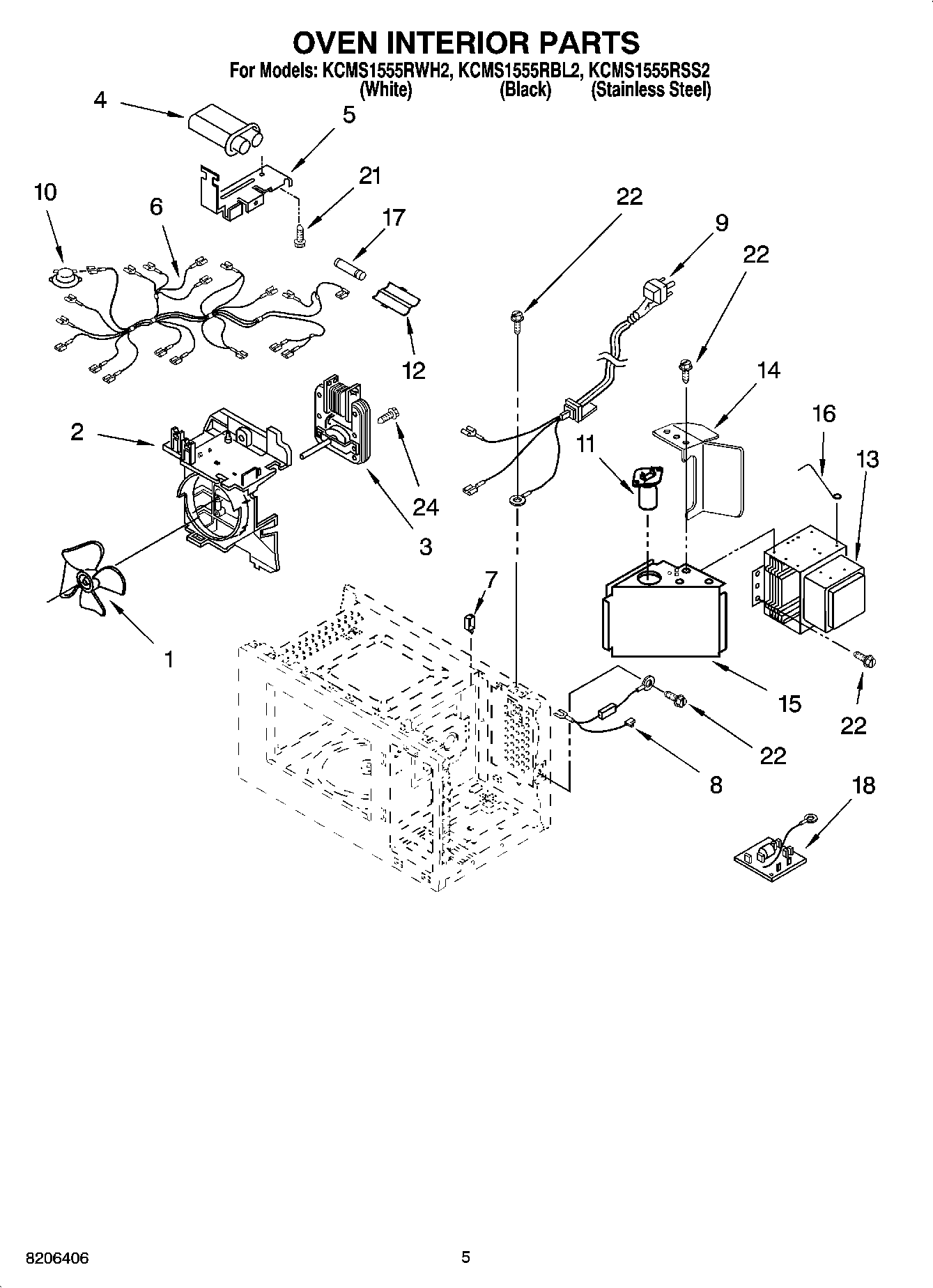

KCMS1555RSS2 05 – OVEN INTERIOR PARTS

Products

Position	Product
1	Blade, Fan
2	Guide, Suction
3	Motor, Fan
4	WP8184813 Whirlpool Microwave Magnetron Capacitor
5	H.V.C Bracket
6	Leadwire Assembly
7	Holder
8	WP8205489 Whirlpool Microwave Voltage Wire
9	8206281 Whirlpool Microwave Power Cord
10	Thermostat
11	Lamp, Baseless
12	Cap, Fuse
13	W10859575 Whirlpool Magnetron
14	Bracket
15	Duct, Air
16	Bracket, Support
17	WP8183507 Whirlpool Microwave Fuse
18	Filter, Noise
21	Screw
22	4344826 Whirlpool Refrigerator Screw
24	Screw
