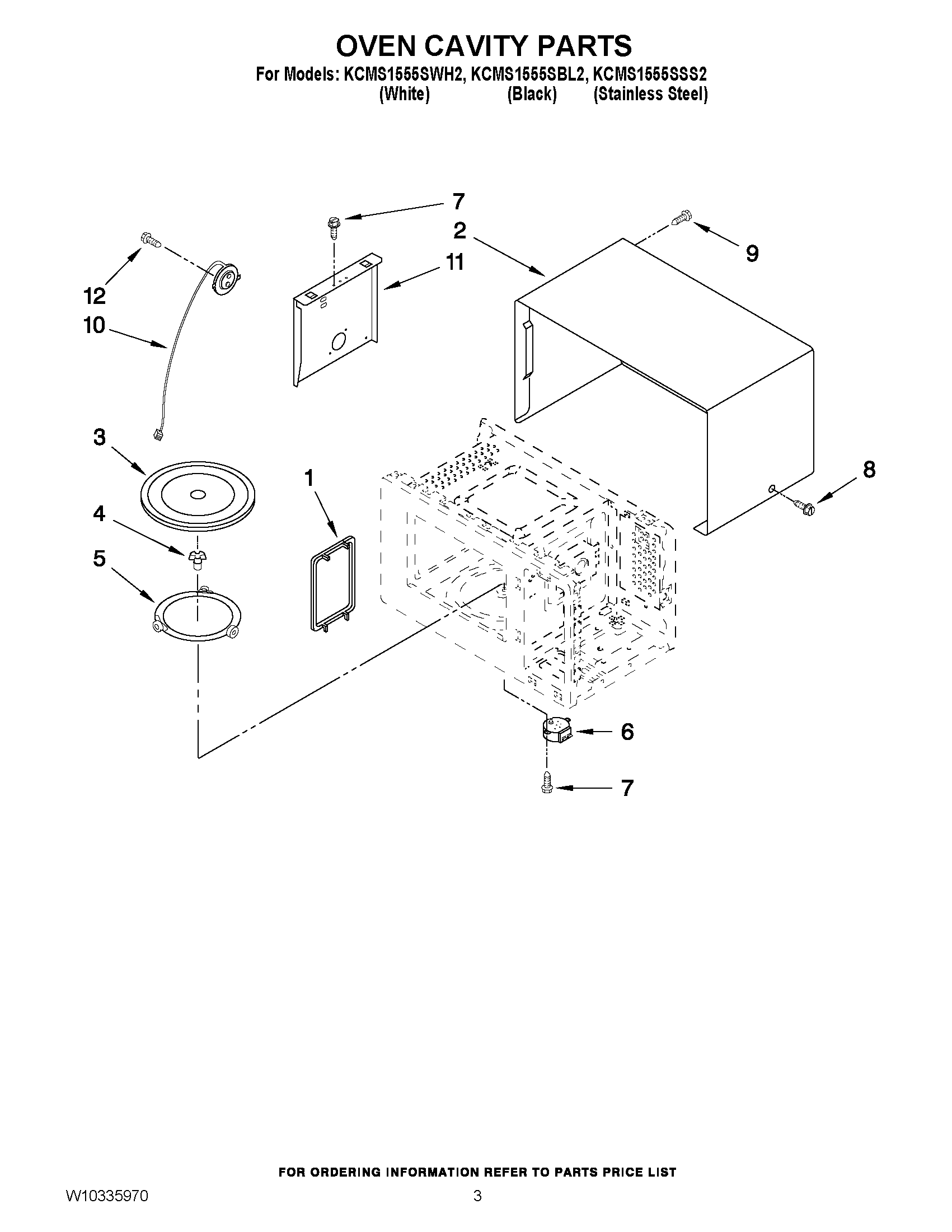

KCMS1555SBL2 03 – OVEN CAVITY PARTS

Written by

Products

Position	Product
1	Canopy
2	Outer Case (White)
2	Outer Case (Black)
2	Outer Case (Stainless)
3	Tray, Glass
4	Shaft, Turntable
5	RING, ROTATING
6	MOTOR, SYNCHRONOUS
7	Screw
8	W11245710 Whirlpool Refrigerator Screw
9	Screw
10	Sensor, Humidity
11	Guide, Sensor
12	Screw
