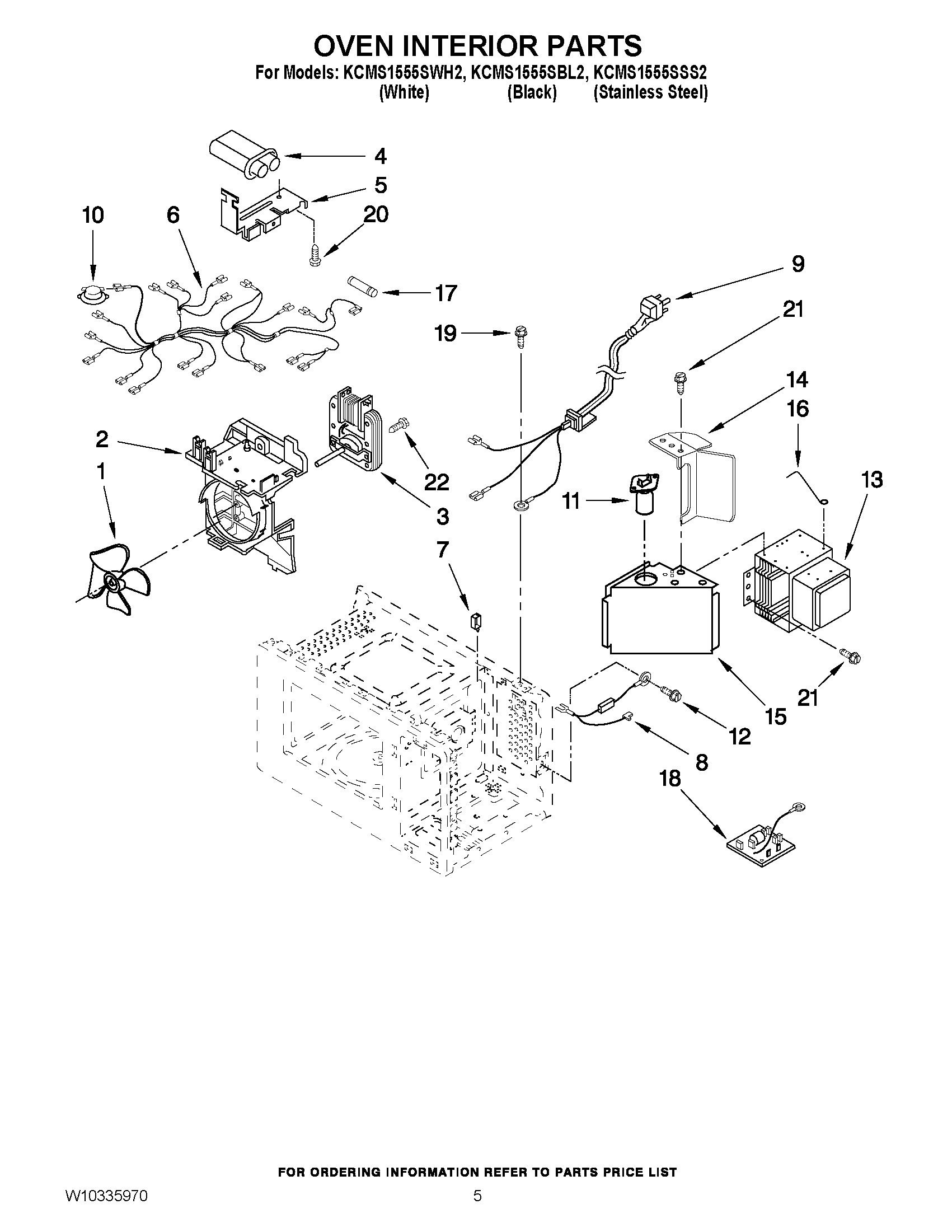

KCMS1555SBL2 05 – OVEN INTERIOR PARTS

Products

Position	Product
1	Blade, Fan
2	Guide, Suction
3	Motor, Fan
4	WP8184813 Whirlpool Microwave Magnetron Capacitor
5	H.V.C Bracket
6	W10329752 Whirlpool Microwave Wire Harness
7	Holder
8	WPR9800486 Whirlpool Microwave High Voltage Diode
9	W10329906 Whirlpool Microwave Power Cord
10	Thermostat
11	Lamp, Baseless
12	Screw
13	W10859575 Whirlpool Magnetron
14	Bracket
15	Duct, Air
16	Bracket, Support
17	WP8183507 Whirlpool Microwave Fuse
18	FILTER, NOISE
19	Screw
20	Screw
21	4344826 Whirlpool Refrigerator Screw
22	Screw
