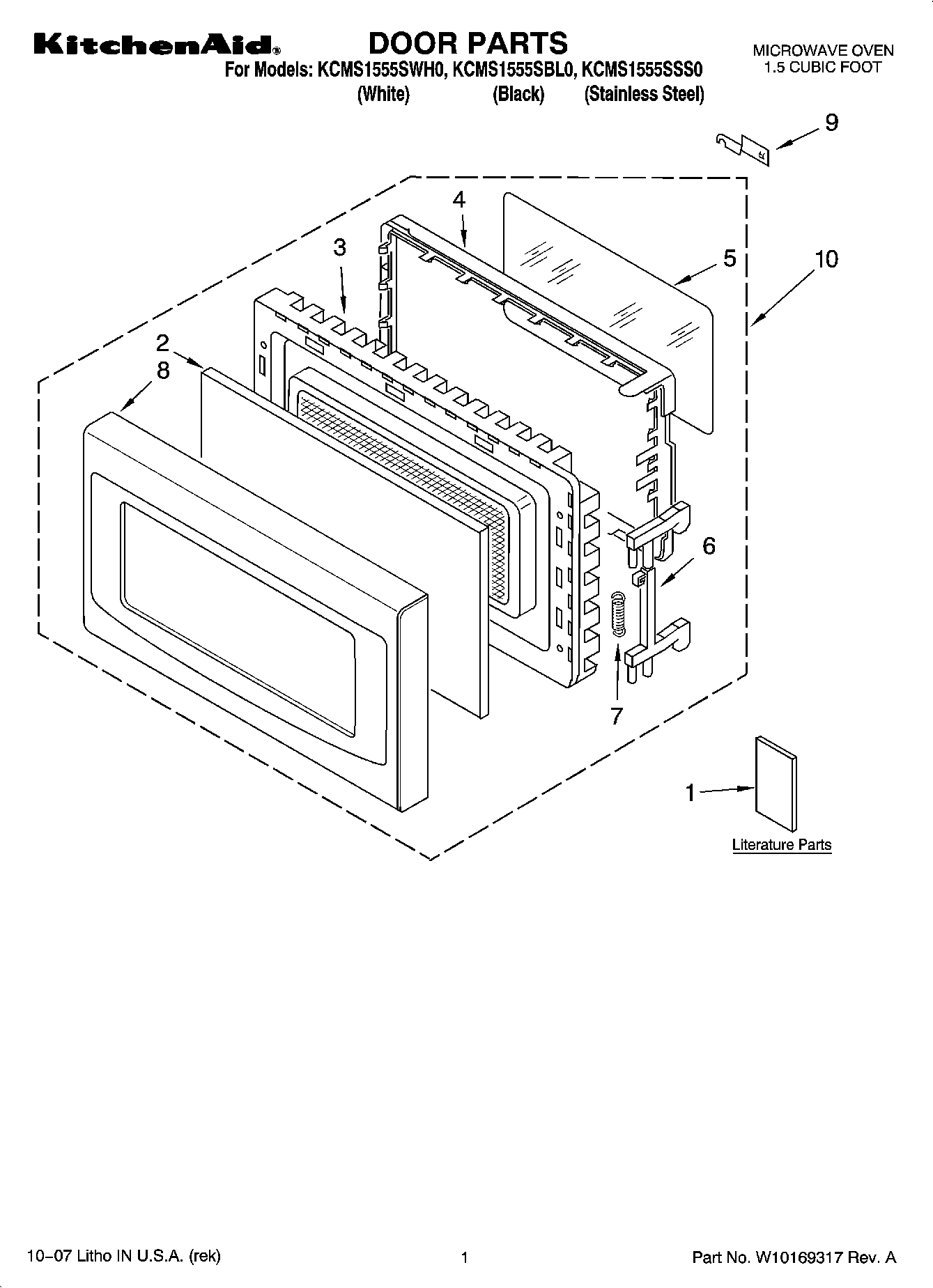

KCMS1555SSS0 01 – DOOR PARTS

Products

Position	Product
1	Instructions, Installation (For Trim Kit)
1	Use & Care Guide
1	Tech Sheet
1	Cook Guide Label
2	Front Screen
3	Frame Assembly (Non-Serviceable)
4	Choke Cover
5	TAPE,SEAL
6	Latch
7	Spring
8	PANEL, DOOR
8	Panel, Door (White)
8	Panel, Door (Black)
9	Cap
10	Door Assembly (Black)
10	Door Assembly (White)
10	DOOR ASSEMBLY
