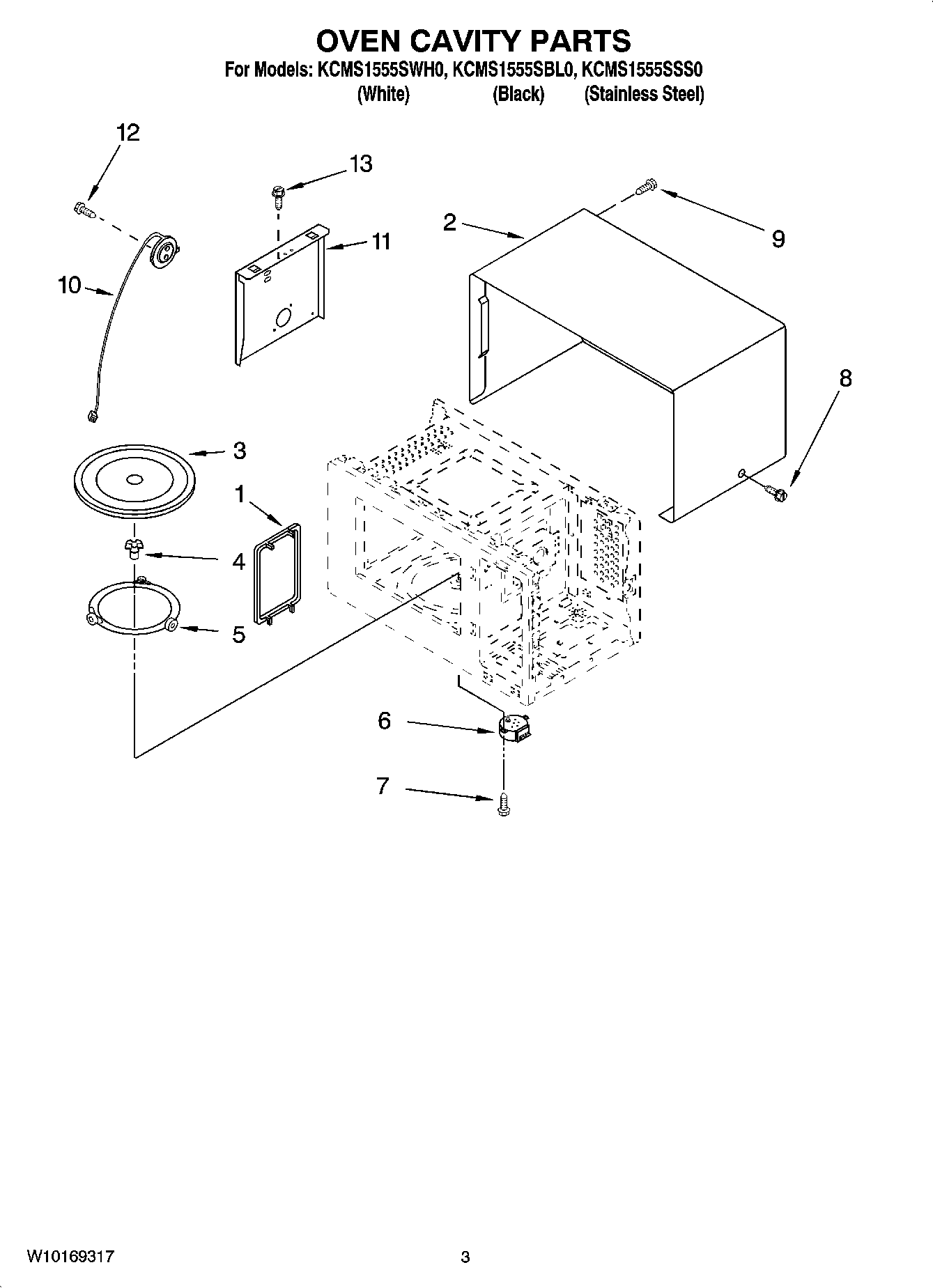

KCMS1555SWH0 03 – OVEN CAVITY PARTS

Written by

Products

Position	Product
1	Canopy
2	Outer Case (Stainless)
2	Outer Case (White)
2	Outer Case (Black)
3	Tray, Glass
4	Shaft, Turntable
5	RING, ROTATING
6	Motor, Synchronous
7	Screw
8	W11245710 Whirlpool Refrigerator Screw
9	Screw
10	Sensor, Humidity
11	Guide, Sensor
12	Screw
13	W11380570 Whirlpool Microwave Screw
