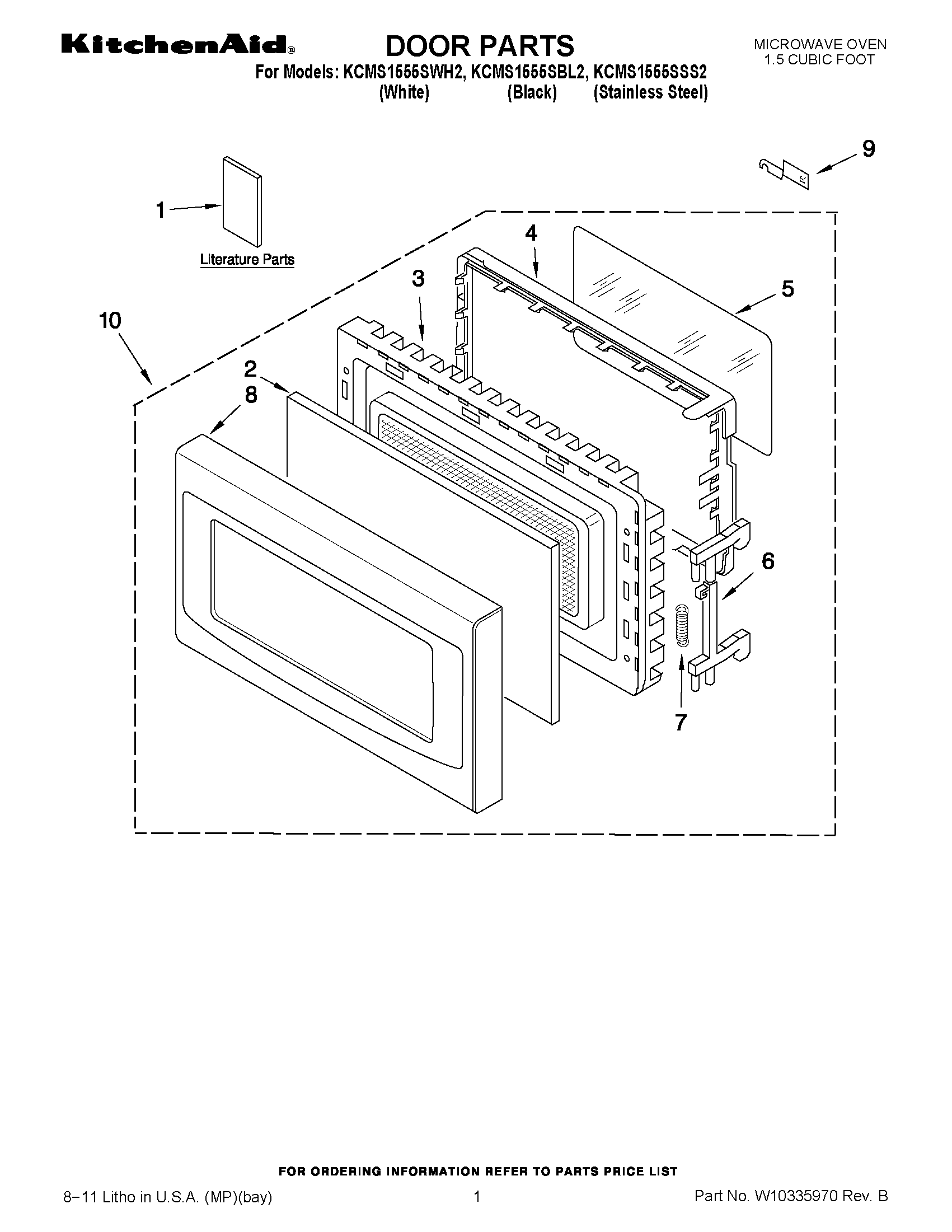

KCMS1555SWH2 01 – DOOR PARTS

Products

Position	Product
1	Instructions, Installation (For Trim Kit)
1	USE & CARE GUIDE
1	TECH SHEET
2	FRONT SCREEN
3	CABINET (NOT A SERVICEABLE PART)
4	Choke Cover
5	TAPE,SEAL
6	Latch
7	Spring
8	Panel, Door (Black)
8	Panel, Door (White)
8	PANEL, DOOR
9	Cap
10	Door Assembly (White)
10	Door Assembly (Black)
10	DOOR ASSEMBLY
