KCMS185JBL0 02 – CONTROL PANEL

KCMS185JBL0 02 – CONTROL PANEL

Written by

in

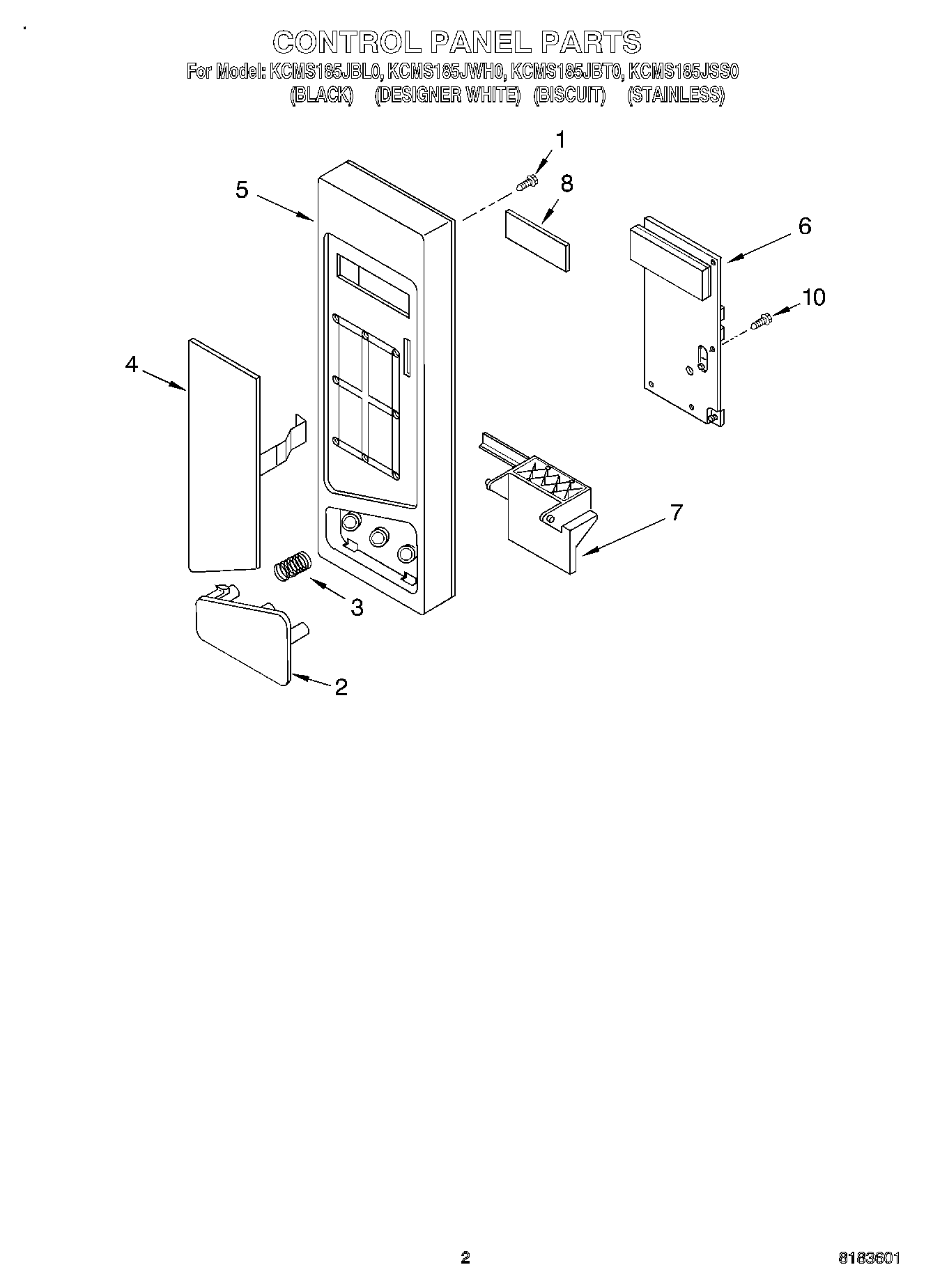

KCMS185JBL0 02 – CONTROL PANEL

Products

PositionProduct
1Screw
2Button, Release (Stainless)
2Release Button (Black)
2Release Button (White)
2Release Button (Biscuit)
3WP4158178 Whirlpool Microwave Spring
4Switch, Membrane (Biscuit)
4Switch, Membrane (Black)
4Switch, Membrane (White)
4Switch, Membrane (Stainless)
5Control Panel (White)
5Control Panel (Black)
5Control Panel (Stainless)
5Control Panel (Biscuit)
6Microcomputer
7Lever, Release
8Window
10Screw
