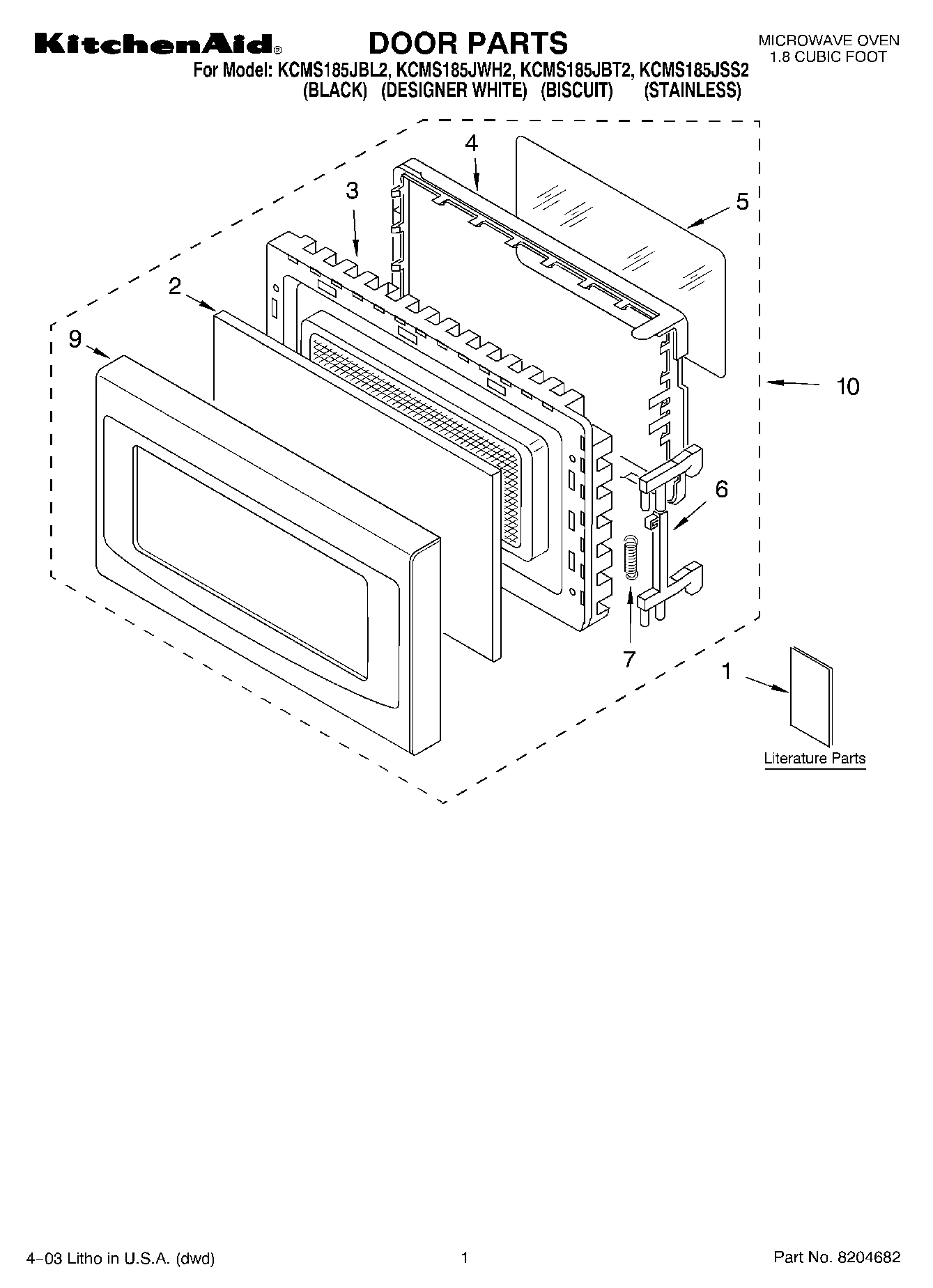

KCMS185JBL2 01 – DOOR PARTS

Products

Position	Product
1	Literature (Cook Guide Label) (Spanish)
1	Literature Parts (Built-In Cook Guide Label)
1	Literature (Cook Guide Label) (English)
1	Literature (Use & Care Guide)
1	Literature Parts (Instructions, Installation)
1	Literature Parts (Template, B/I Kit)
2	Front Screen
2	Front Screen (SS Model)
3	Door Frame Assembly (Biscuit)
3	Door Frame Assembly (Black)
3	Shield
4	Choke Cover
5	Tape, Seal
6	Latch
7	Spring, Latch
9	Panel, Door (Stainless)
9	Panel, Door (Biscuit)
9	Panel, Door (White)
9	Panel, Door (Black)
10	Door Assembly (Black)
10	Door Assembly (White)
10	Door Assembly (Biscuit)
10	Door Assembly (Stainless)
