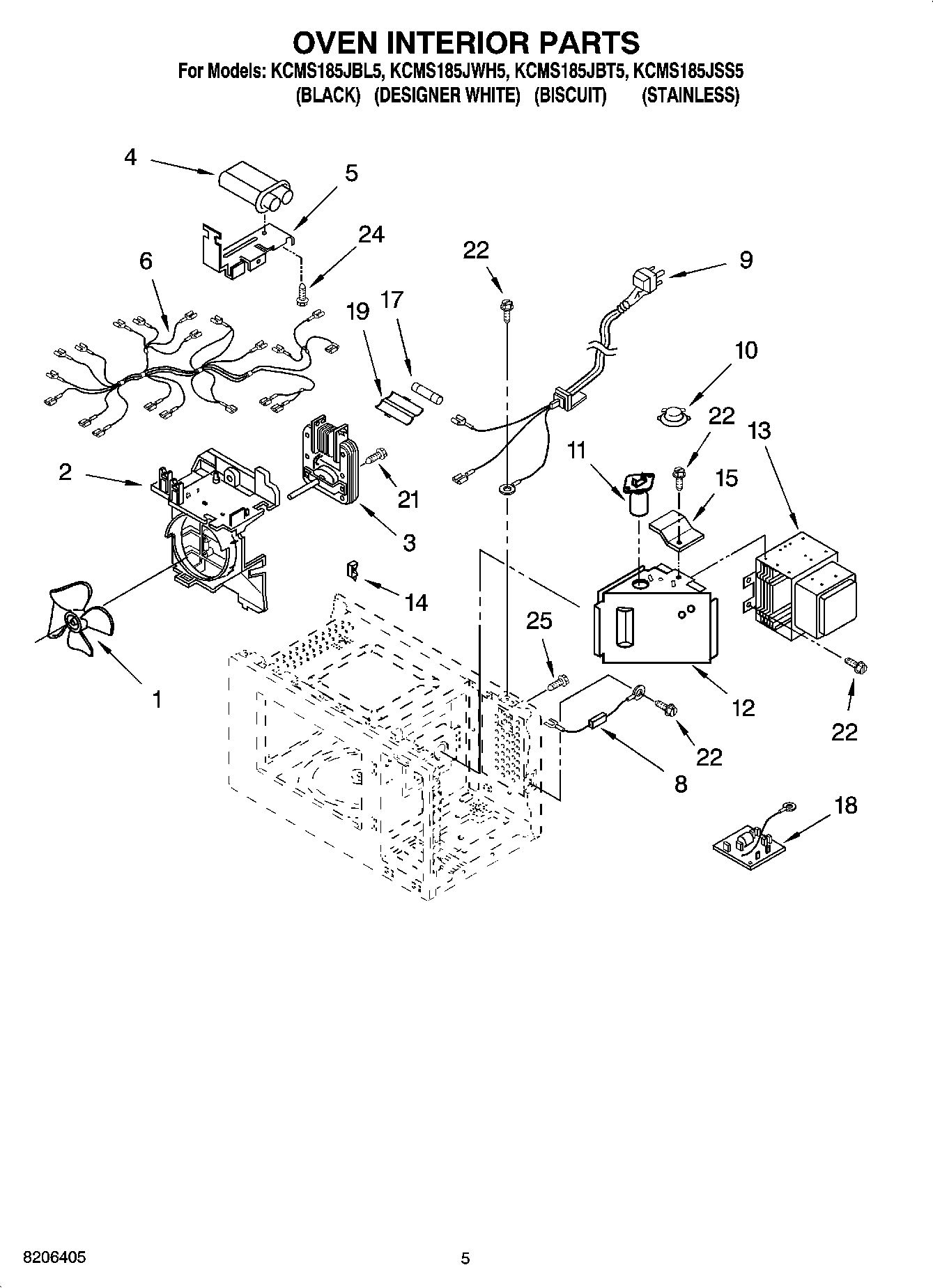

KCMS185JBL5 05 – OVEN INTERIOR PARTS

Products

PositionProduct
1Propeller
2Guide, Suction
3Motor, Fan
4WP8184813 Whirlpool Microwave Magnetron Capacitor
5Bracket, H.V.C.
6Leadwire Assembly
8WP8205489 Whirlpool Microwave Voltage Wire
98206281 Whirlpool Microwave Power Cord
10Thermostat
11Lamp, Baseless
12Duct, Air
13W10859575 Whirlpool Magnetron
14Holder
15Bracket, Support
17WP8183507 Whirlpool Microwave Fuse
18Filter, Noise
19Fuse Cap
21Screw
224344826 Whirlpool Refrigerator Screw
24Screw
25Screw
