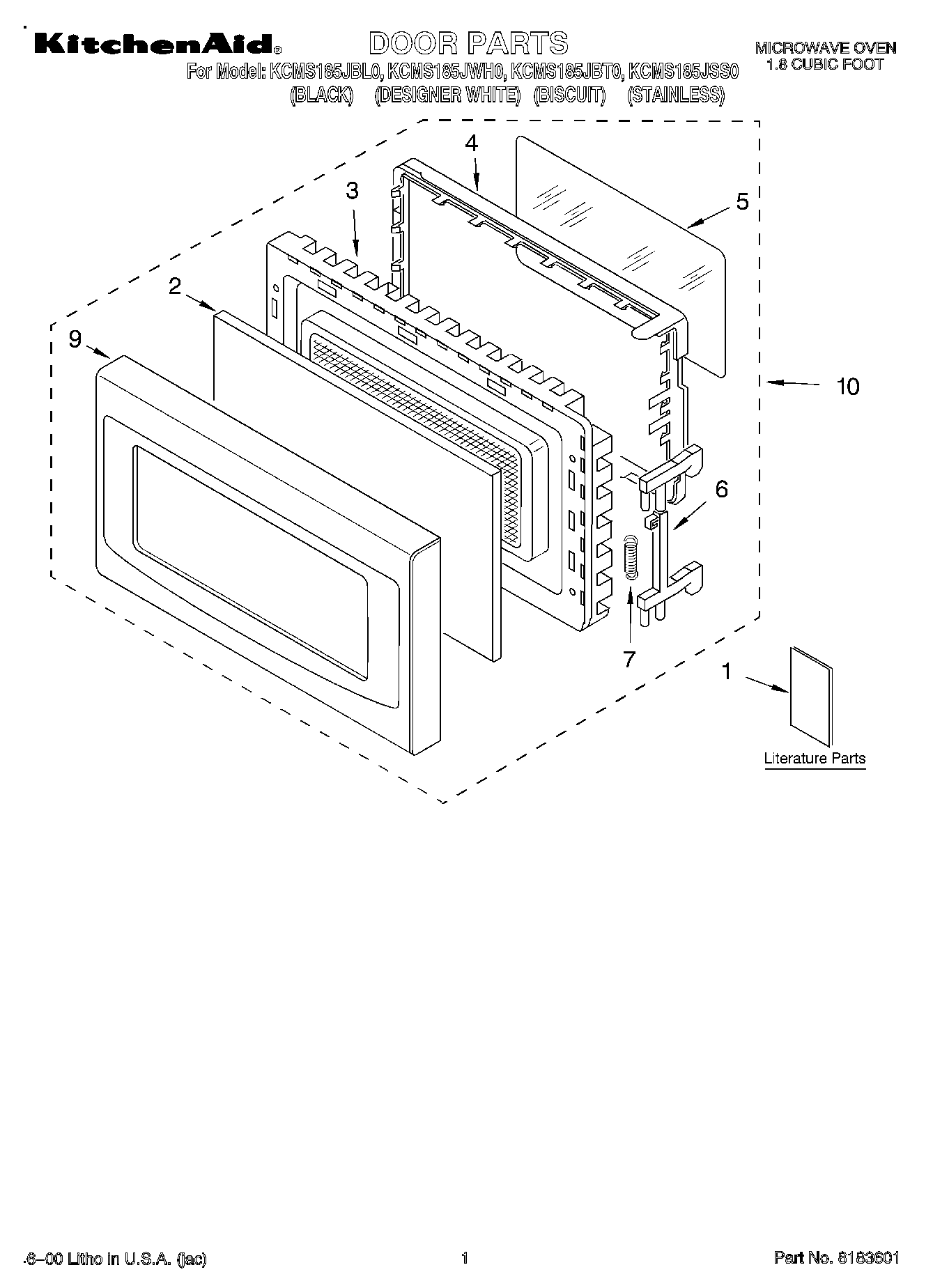

KCMS185JBT0 01 – DOOR, LITERATURE

KCMS185JBT0 01 – DOOR, LITERATURE

Written by

in

KCMS185JBT0 01 – DOOR, LITERATURE

Products

PositionProduct
1Literature Parts (Instructions, Installation)
1Literature (Cook Guide Label) (English)
1Literature (Use & Care Guide)
1Literature (Cook Guide Label) (Spanish)
1Literature Parts (Template, B/I Kit)
1Literature Parts (Built-In Cook Guide Label)
2Front Screen
3Door Frame Assembly (Black)
4Choke Cover
5Tape, Seal
6Latch
7Spring, Latch
9Panel, Door (Black)
9Panel, Door (White)
9Panel, Door (Biscuit)
9Panel, Door (Stainless)
10Door Assembly (Black)
10Door Assembly (White)
10Door Assembly (Biscuit)
10Door Assembly (Stainless)
