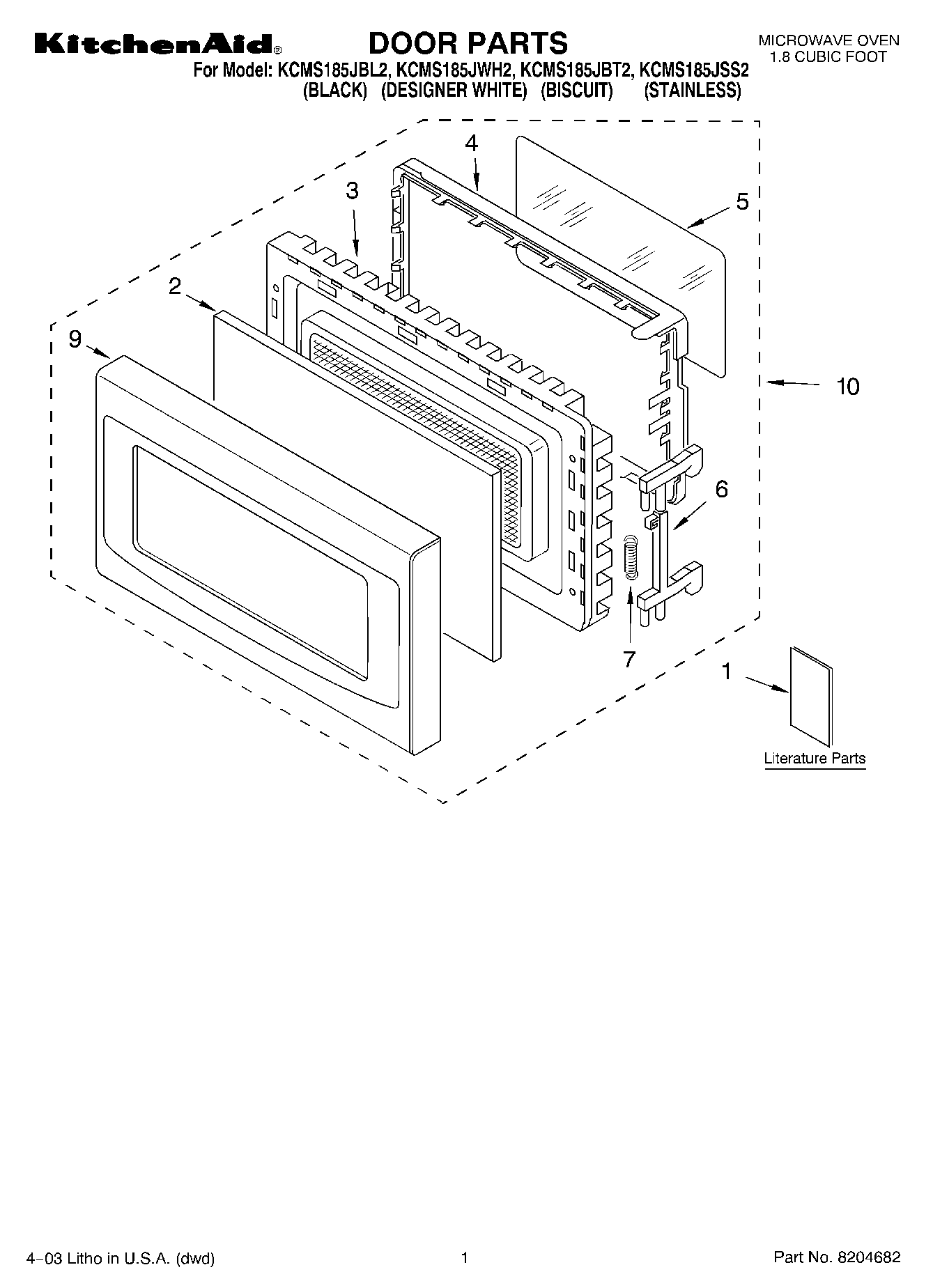

KCMS185JBT2 01 – DOOR PARTS

Products

PositionProduct
1Literature (Cook Guide Label) (Spanish)
1Literature Parts (Built-In Cook Guide Label)
1Literature (Cook Guide Label) (English)
1Literature (Use & Care Guide)
1Literature Parts (Instructions, Installation)
1Literature Parts (Template, B/I Kit)
2Front Screen
2Front Screen (SS Model)
3Door Frame Assembly (Biscuit)
3Door Frame Assembly (Black)
3Shield
4Choke Cover
5Tape, Seal
6Latch
7Spring, Latch
9Panel, Door (Stainless)
9Panel, Door (Biscuit)
9Panel, Door (White)
9Panel, Door (Black)
10Door Assembly (Black)
10Door Assembly (White)
10Door Assembly (Biscuit)
10Door Assembly (Stainless)
