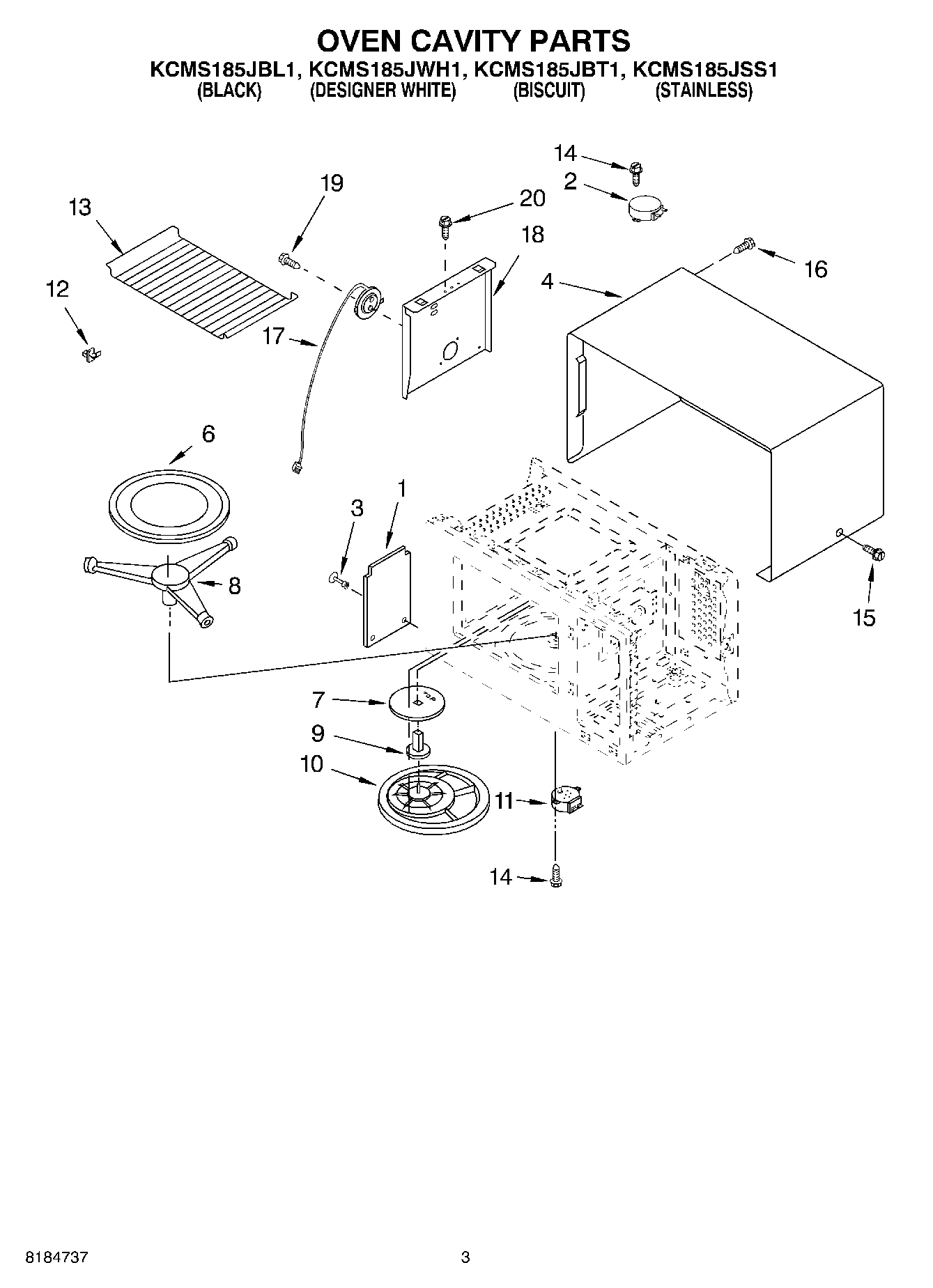

KCMS185JSS1 03 – OVEN CAVITY

KCMS185JSS1 03 – OVEN CAVITY

Written by

in

KCMS185JSS1 03 – OVEN CAVITY

Products

PositionProduct
1Canopy
2Motor, Fan
3WP4359508 Whirlpool Microwave Stir Rivet
4Outer Case (Stainless)
4Outer Case (White)
4Outer Case (Biscuit)
4Outer Case (Black)
6WP8184775 Whirlpool Microwave Cooking Tray
7Fan, Stirrer
8Turntable Support
9Holder
10Cover
11Motor, Synchronous
12Shelf Holder
13Rack
14Screw
15Screw
15Screw
16Screw
17Sensor, Humidity
18Guide, Sensor
19Screw
20W11380570 Whirlpool Microwave Screw
