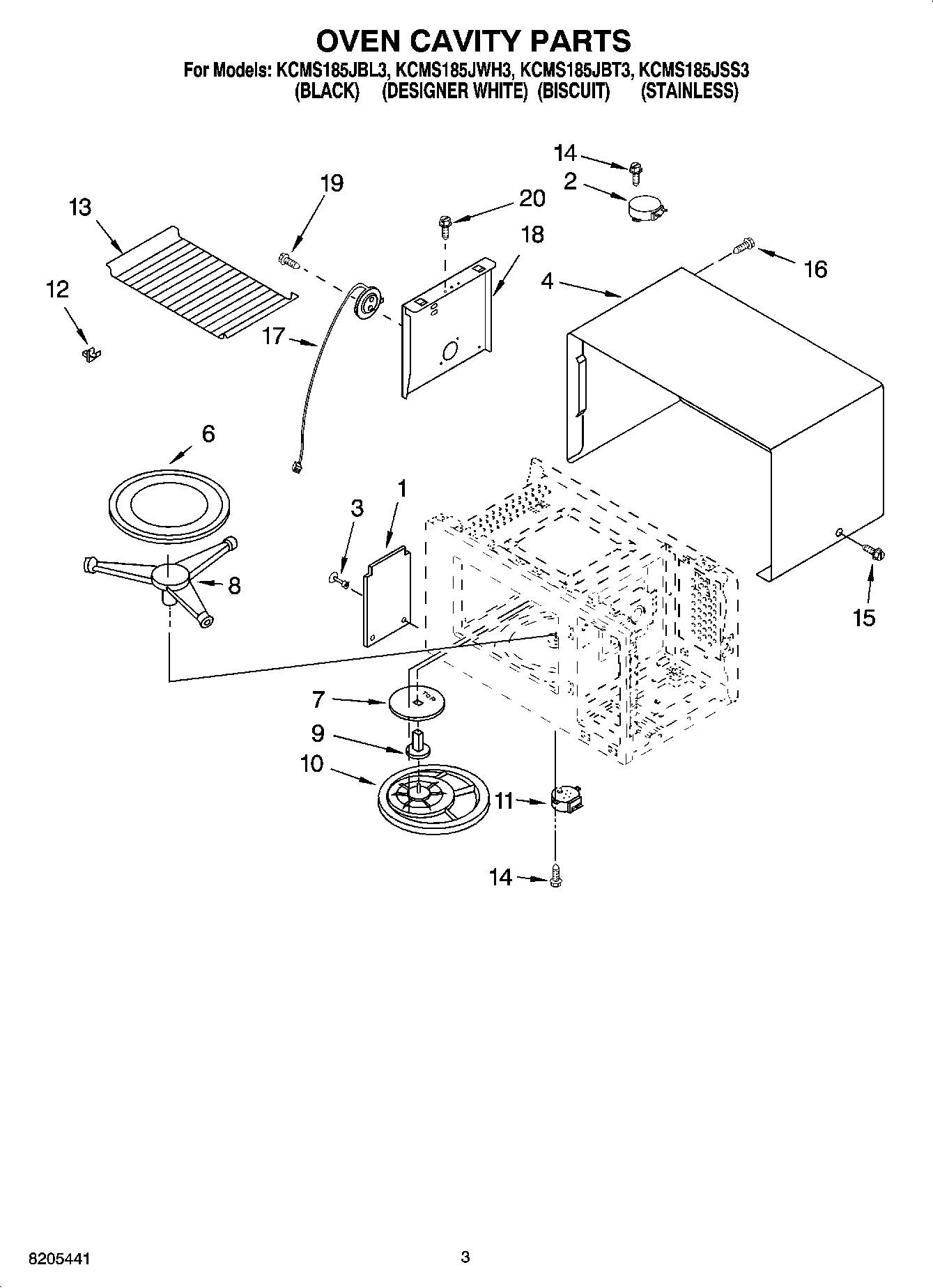

KCMS185JSS3 03 – OVEN CAVITY PARTS

Products

Position	Product
1	Canopy
2	Motor, Fan
3	WP4359508 Whirlpool Microwave Stir Rivet
4	Outer Case (Black)
4	Outer Case (Stainless)
4	Outer Case (White)
4	Outer Case (Biscuit)
6	WP8184775 Whirlpool Microwave Cooking Tray
7	Fan, Stirrer
8	Turntable Support
9	Holder
10	Cover
11	Motor, Synchronous
12	Shelf Holder
13	Rack
14	Screw
15	Screw
15	W11245710 Whirlpool Refrigerator Screw
16	Screw
17	Sensor, Humidity
18	Guide, Sensor
19	Screw
20	W11380570 Whirlpool Microwave Screw
