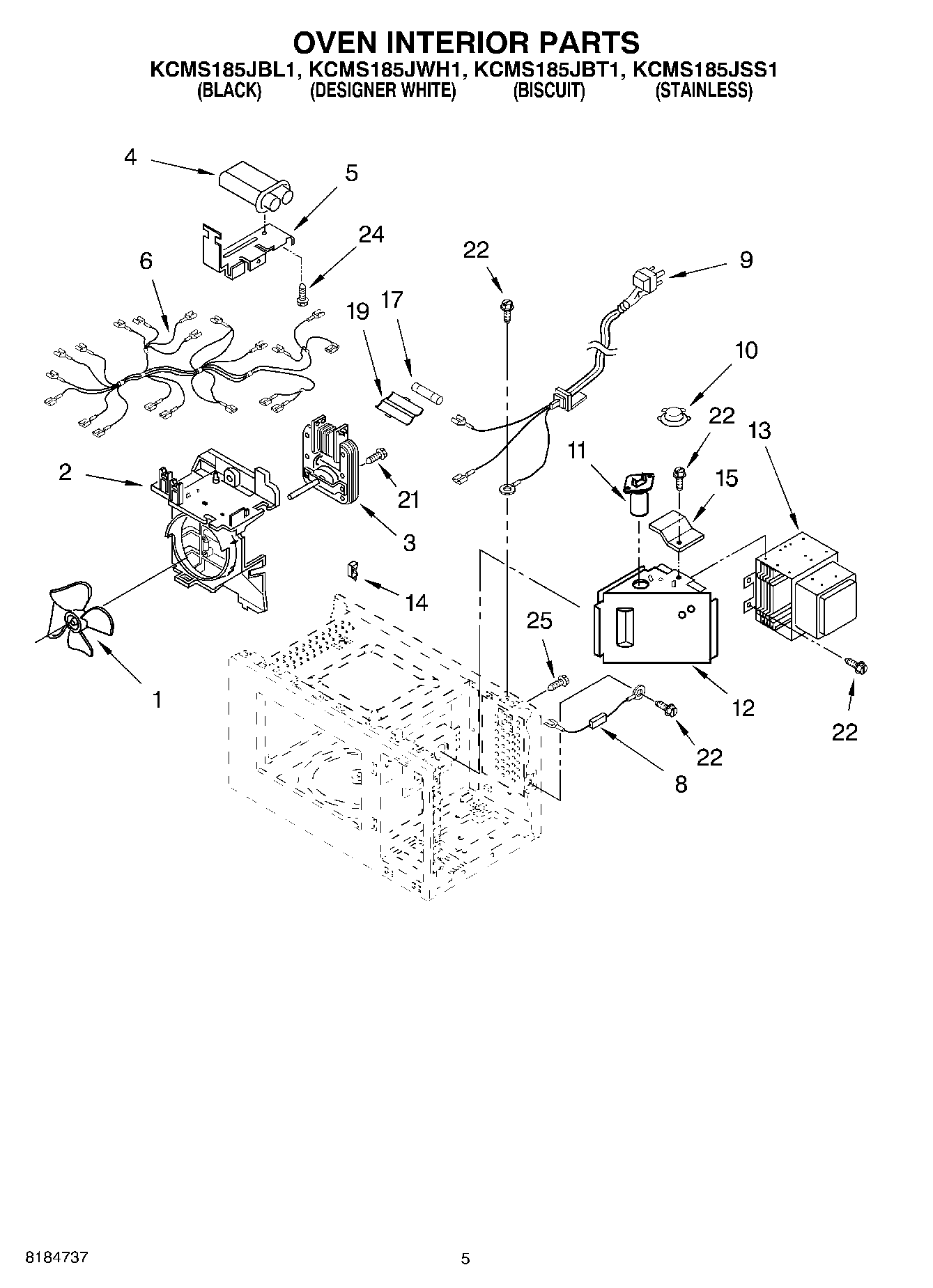

KCMS185JWH1 05 – OVEN INTERIOR

Products

Position	Product
1	8184292 Whirlpool Microwave Fan Blade
2	Guide, Suction
3	Motor, Fan
4	WP8184813 Whirlpool Microwave Magnetron Capacitor
5	Bracket, H.V.C.
6	Leadwire Assembly
8	WP8205489 Whirlpool Microwave Voltage Wire
9	Power Cord
10	Thermostat
11	Lamp, Baseless
12	Duct, Air
13	W10859575 Whirlpool Magnetron
14	Holder
15	Bracket, Support
17	WP8183507 Whirlpool Microwave Fuse
19	Fuse Cap
21	Screw
22	4344826 Whirlpool Refrigerator Screw
24	Screw
25	Screw
