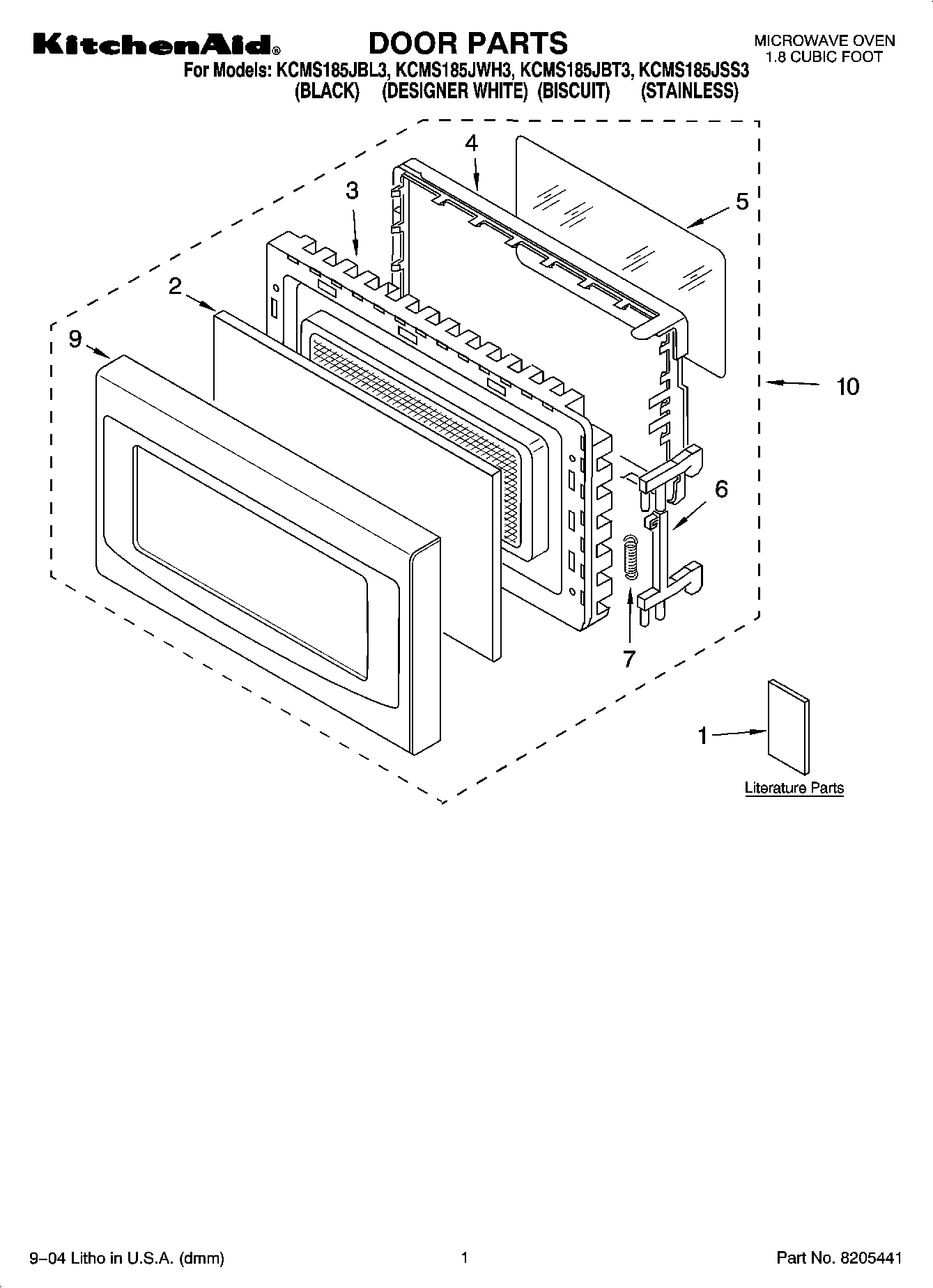

KCMS185JWH3 01 – DOOR PARTS

Products

Position	Product
1	Guide, U & C
1	Spanish
1	Tech Sheet Instructions, Installation
1	English
1	Template-B/I Kit
1	Built-In Cook Guide Label
2	Front Screen
2	Front Screen (SS Model)
3	Door Frame Assembly (Biscuit)
3	Shield
3	Door Frame Assembly (Black)
4	Choke Cover
5	Tape, Seal
6	Latch
7	Spring, Latch
9	Panel, Door (Stainless)
9	Panel, Door (Black)
9	Panel, Door (Biscuit)
9	Panel, Door (White)
10	Door Assembly (White)
10	Door Assembly (Black)
10	Door Assembly (Biscuit)
10	Door Assembly (Stainless)
