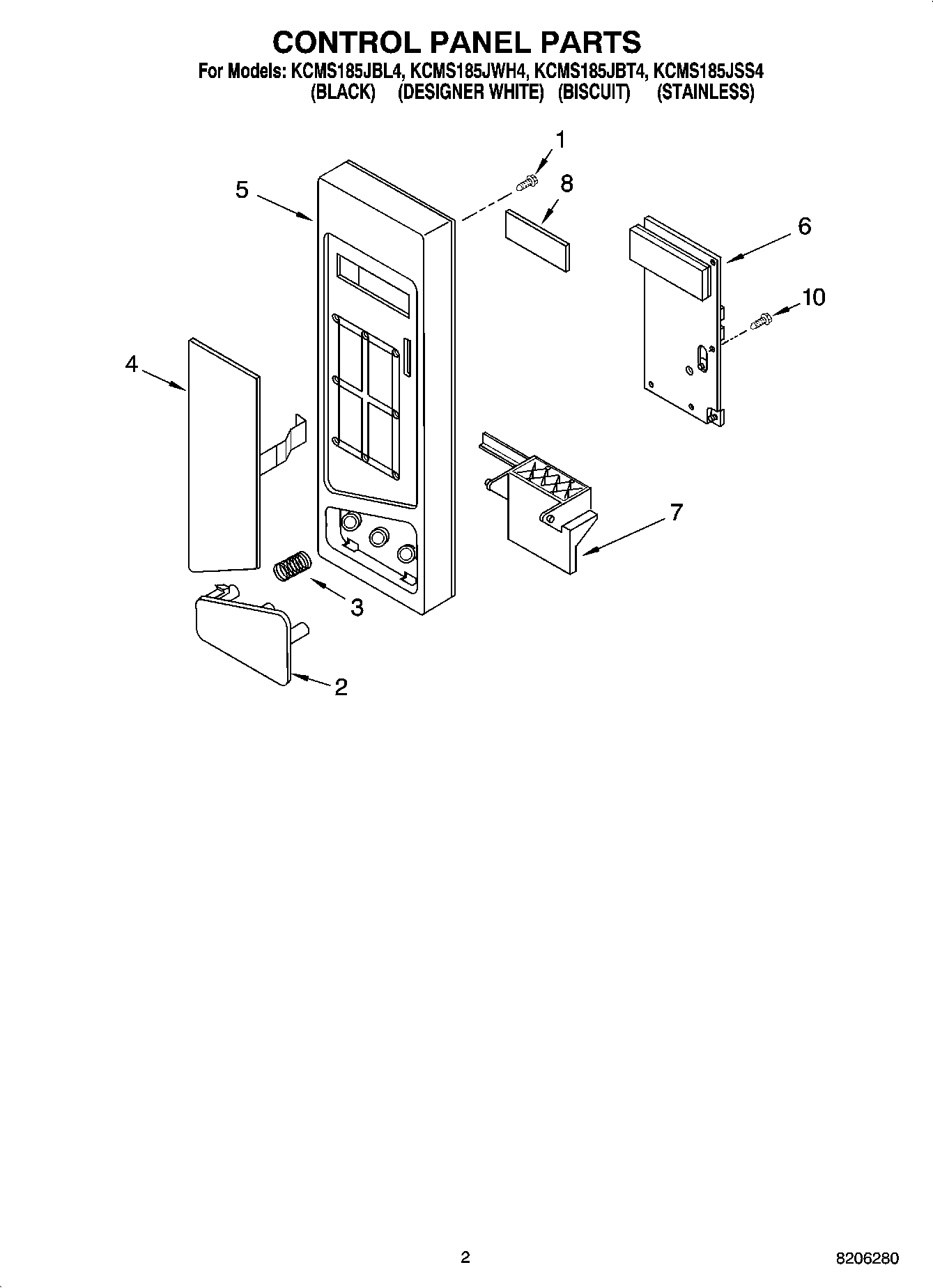

KCMS185JWH4 02 – CONTROL PANEL PARTS

KCMS185JWH4 02 – CONTROL PANEL PARTS

Written by

in

KCMS185JWH4 02 – CONTROL PANEL PARTS

Products

PositionProduct
1Screw
2Release Button (Biscuit)
2Release Button (White)
2Release Button (Black)
2Button, Release (Stainless)
3WP4158178 Whirlpool Microwave Spring
4Switch, Membrane (Stainless)
4Switch, Membrane (Biscuit)
4Switch, Membrane (White)
4Switch, Membrane (Black)
5Control Panel (Black)
5Control Panel (White)
5Control Panel (Biscuit)
5Control Panel (Stainless)
6Microcomputer
7Lever, Release
8Window
10Screw
