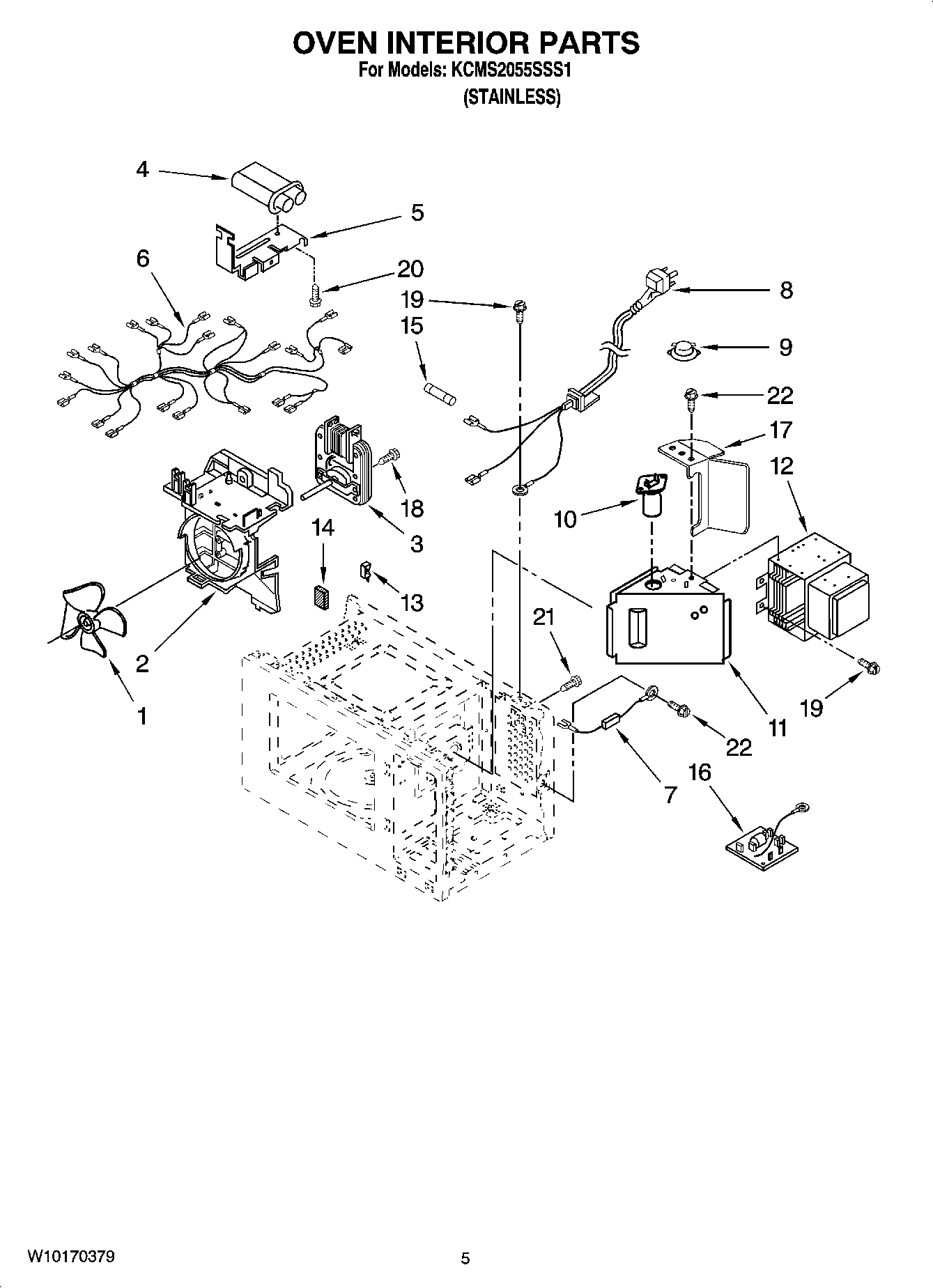

KCMS2055SSS1 05 – OVEN INTERIOR PARTS

KCMS2055SSS1 05 – OVEN INTERIOR PARTS

Written by

in

KCMS2055SSS1 05 – OVEN INTERIOR PARTS

Products

PositionProduct
1Blade, Fan
2Guide, Suction
3Motor, Fan
4WP8184813 Whirlpool Microwave Magnetron Capacitor
5H.V.C Bracket
6Leadwire Assembly
7WPR9800486 Whirlpool Microwave High Voltage Diode
88206281 Whirlpool Microwave Power Cord
9Thermostat
10Lamp, Baseless
11Duct, Air
12W10859575 Whirlpool Magnetron
13Holder
14Cushion
15WP8183507 Whirlpool Microwave Fuse
16Filter, Noise
17Bracket
18Screw
194344826 Whirlpool Refrigerator Screw
20Screw
21Screw
22Screw
