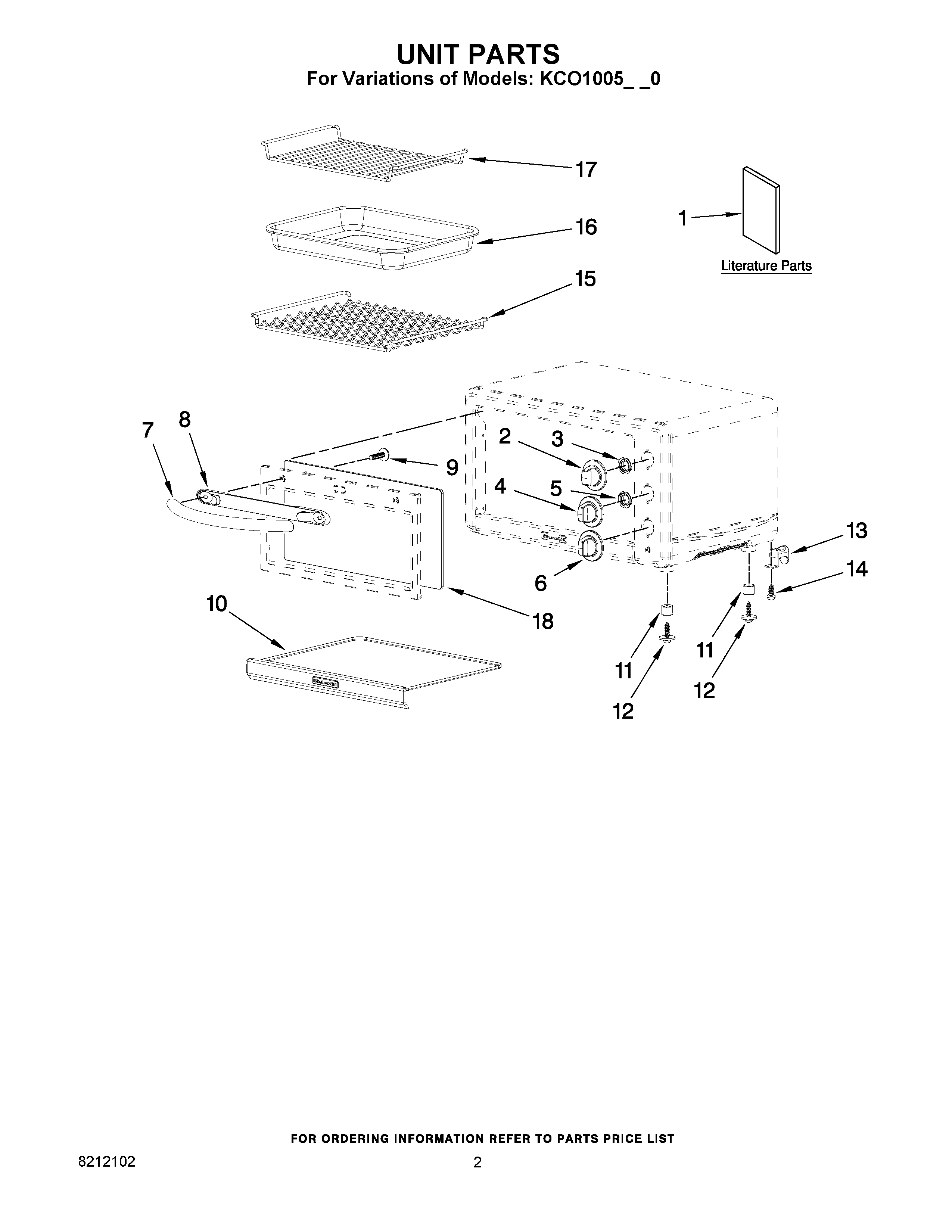

KCO1005ER0 01 – UNIT PARTS

Products

Position	Product
1	REPAIR PARTS LIST
1	USE & CARE GUIDE
2	KNOB, FUNCTION (INCL ILLUS 3)
3	BASE, KNOB (FUNCTION)
4	KNOB, THERMOSTAT (INCL ILLUS 5)
5	BASE, KNOB (THERMOSTAT)
6	KNOB, TIMER
7	HANDLE (INCL ILLUS 8 & 9)
8	KNUCKLE GUARD
9	SCREW
10	CRUMB TRAY ASSY (INCLUDES BADGE)
11	FOOT (INCL ILLUS 12)
12	SCREW
13	STORAGE, CORD (INCL ILLUS 14)
14	SCREW
15	RACK
16	BAKING PAN
17	BROILING GRILL
18	GLASS
