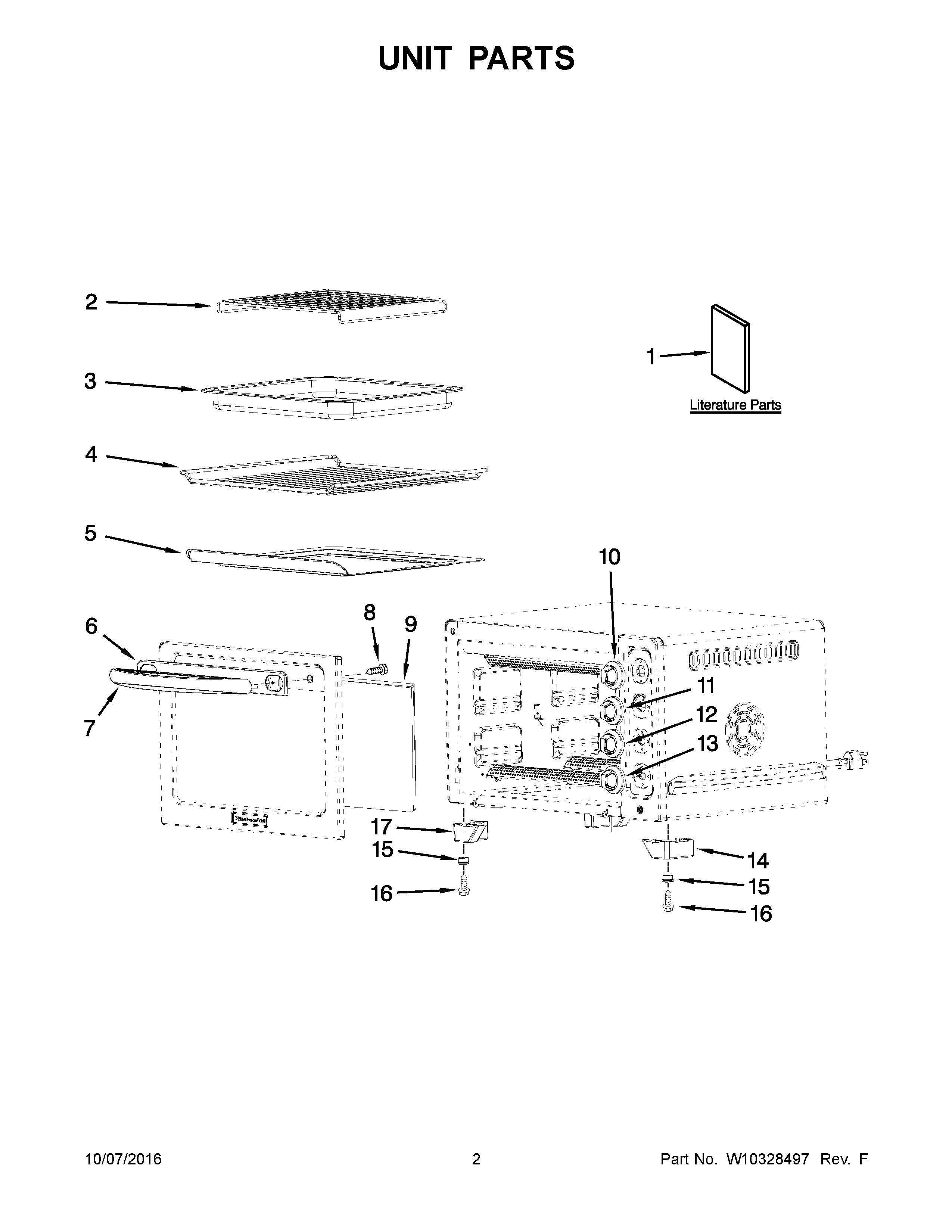

KCO223CCU0 02 – UNIT PARTS

KCO223CCU0 02 – UNIT PARTS

Written by

in

KCO223CCU0 02 – UNIT PARTS

Products

PositionProduct
1USE & CARE GUIDE
2W11171130 Whirlpool Rack
3PAN, BROIL
4RACK, WIRE
5TRAY, CRUMB
6W10339096 Whirlpool Handle
8W10328490 Whirlpool Appliance Screw
9GLASS, DOOR
10W10339095 Whirlpool Function Knob
11KNOB, TEMPERATURE
12W10339093 Whirlpool Knob Assembly
13W10339092 Whirlpool Knob
14FOOT, RIGHT
15W10328486 Whirlpool Foot Assembly
16W10328484 Whirlpool Screw
17W10328488 Whirlpool Foot
