KCO234CCU0 02 – UNIT PARTS – Aparts

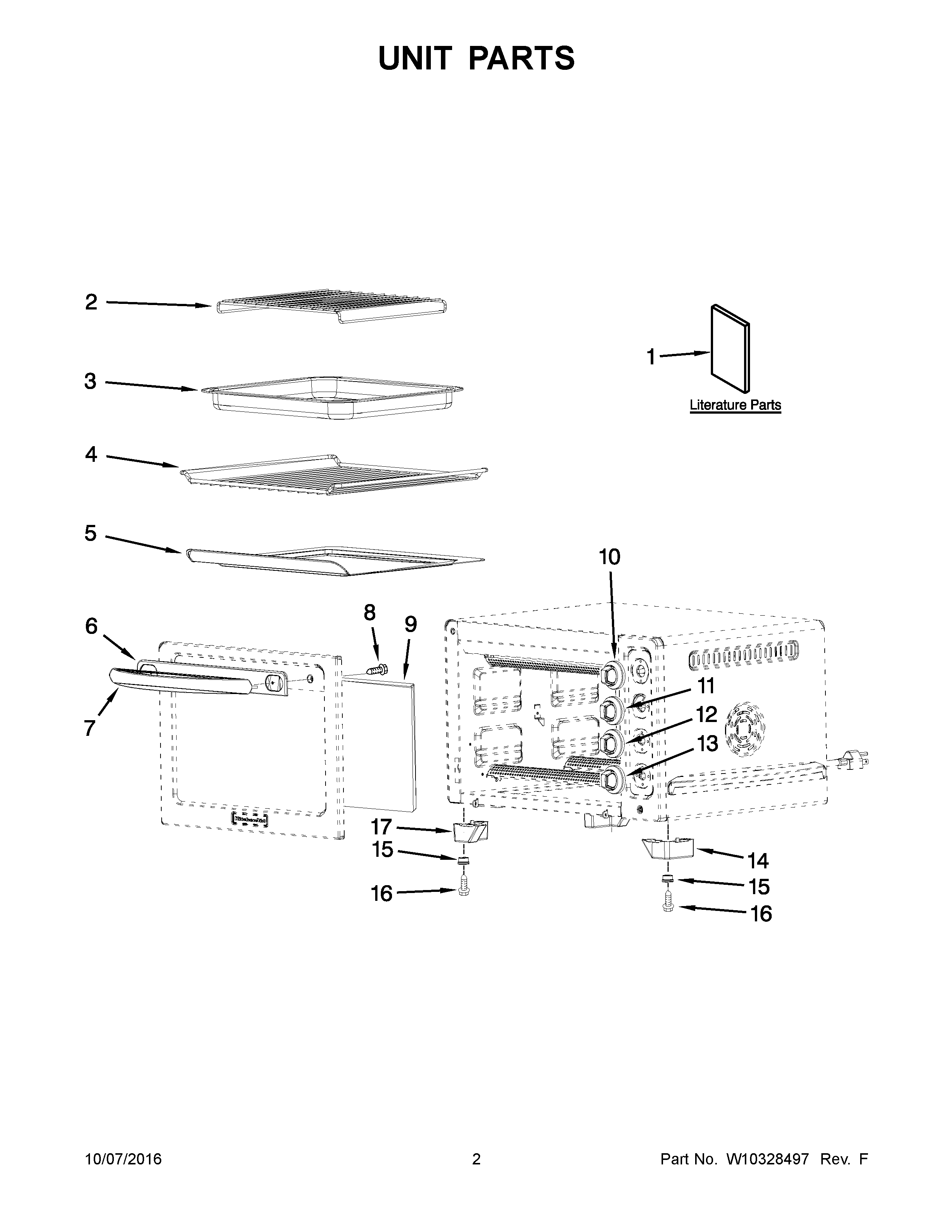

KCO234CCU0 02 – UNIT PARTS

Products

Position	Product
1	USE & CARE GUIDE
2	W11171130 Whirlpool Rack
3	PAN, BROIL
4	RACK, WIRE
5	TRAY, CRUMB
6	W10339096 Whirlpool Handle
8	W10328490 Whirlpool Appliance Screw
9	GLASS, DOOR
10	W10339095 Whirlpool Function Knob
11	KNOB, TEMPERATURE
12	W10339093 Whirlpool Knob Assembly
13	W10339092 Whirlpool Knob
14	FOOT, RIGHT
15	W10328486 Whirlpool Foot Assembly
16	W10328484 Whirlpool Screw
17	W10328488 Whirlpool Foot
