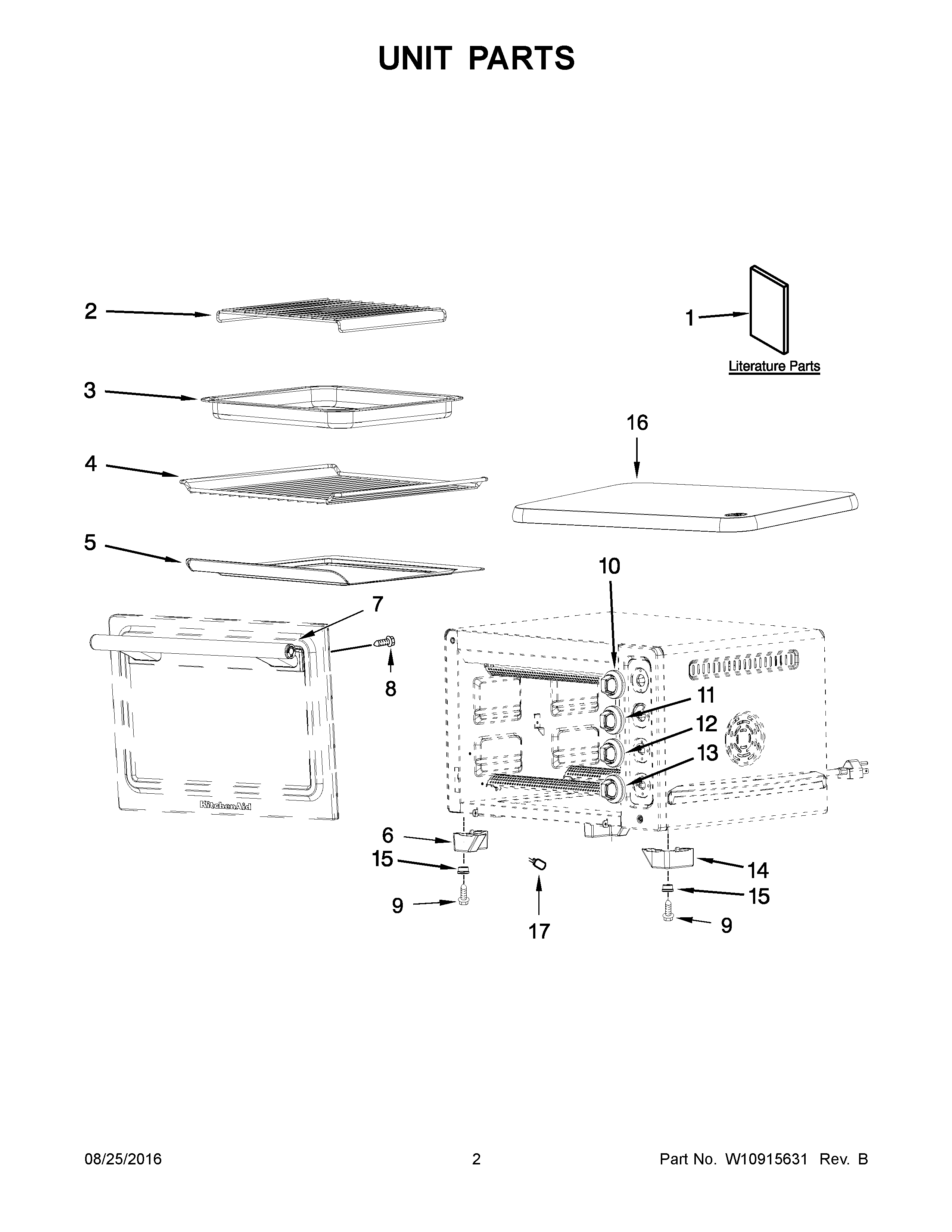

KCO253CU0 02 – UNIT PARTSadmin2025-04-26T12:35:23+00:00KCO253CU0 02 – UNIT PARTS
Products
| Position | Product |
|---|
| 1 | USE & CARE GUIDE |
| 2 | W11171130 Whirlpool Rack |
| 3 | PAN, BROIL |
| 4 | RACK, WIRE |
| 5 | TRAY, CRUMB |
| 6 | W10328488 Whirlpool Foot |
| 7 | W10915663 Whirlpool Handle |
| 7A | W10920620 Whirlpool Handle |
| 8 | SCREW, HANDLE |
| 9 | W10328484 Whirlpool Screw |
| 10A | W10920621 Whirlpool Knob |
| 10 | KNOB, FUNCTION (KCO253*) |
| 11 | W10915665 Whirlpool Knob |
| 11A | KNOB, TEMPERATURE (KCO263*) |
| 12 | W10915666 Whirlpool Knob |
| 12A | KNOB, TIMER (KCO263*) |
| 13A | KNOB, TOAST (KCO263*) |
| 13 | W10915667 Whirlpool Knob |
| 14 | FOOT, RIGHT |
| 15 | W10328486 Whirlpool Foot Assembly |
| 16 | CUTTING BOARD (KCO263*) |
| 17 | LAMP, BULB (KCO263*) |
