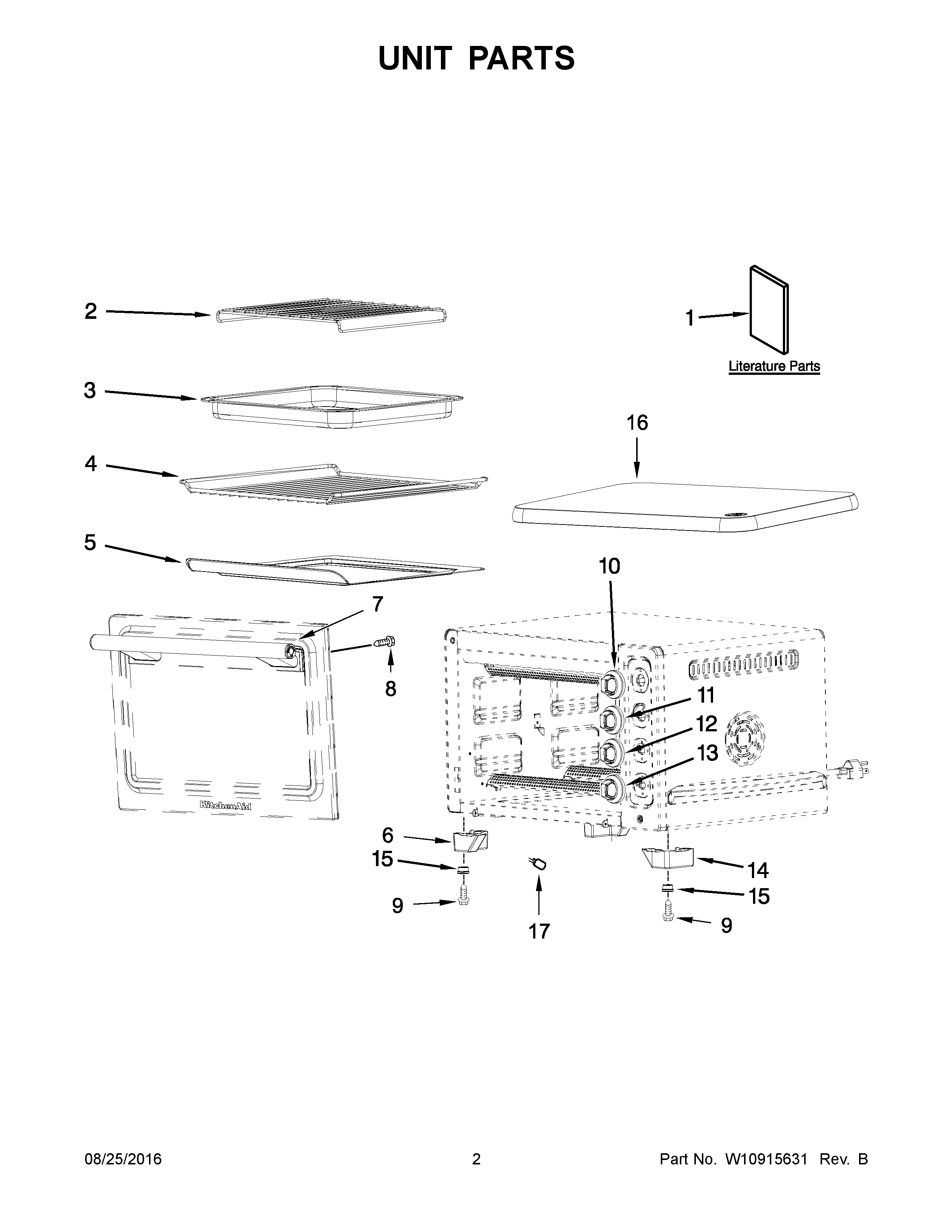

KCO263SZ0 02 – UNIT PARTS

KCO263SZ0 02 – UNIT PARTS

Written by

in

KCO263SZ0 02 – UNIT PARTS

Products

PositionProduct
1USE & CARE GUIDE
2W11171130 Whirlpool Rack
3PAN, BROIL
4RACK, WIRE
5TRAY, CRUMB
6W10328488 Whirlpool Foot
7W10915663 Whirlpool Handle
7AW10920620 Whirlpool Handle
8SCREW, HANDLE
9W10328484 Whirlpool Screw
10AW10920621 Whirlpool Knob
10KNOB, FUNCTION (KCO253*)
11W10915665 Whirlpool Knob
11AKNOB, TEMPERATURE (KCO263*)
12W10915666 Whirlpool Knob
12AKNOB, TIMER (KCO263*)
13AKNOB, TOAST (KCO263*)
13W10915667 Whirlpool Knob
14FOOT, RIGHT
15W10328486 Whirlpool Foot Assembly
16CUTTING BOARD (KCO263*)
17LAMP, BULB (KCO263*)
