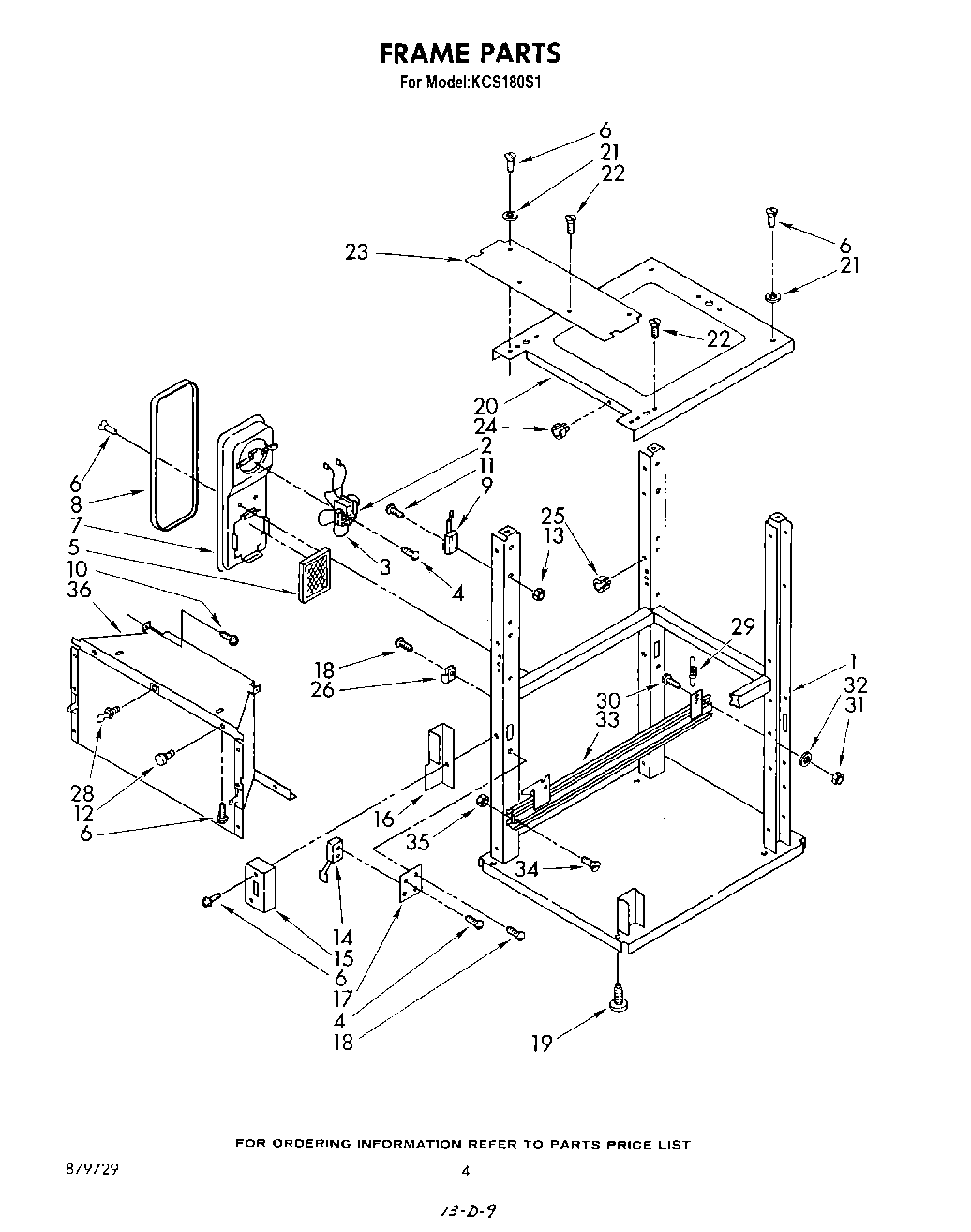

KCS180S1 03 – FRAME

Products

Position	Product
1	Frame (Not a Serviceable Part)
2	Motor, Fan
3	Blade, Fan
4	Screw 6-32 X 7/8
5	Filter, Air
6	Screw
7	Housing, Filter
8	Gasket, Housing
9	Switch, Ram Stop
11	Screw, 10-24 x 1/2
12	Bumper, Door (2)
13	Nut, 6-32 (4)
14	Switch, Drawer
15	Block
16	Barrier
17	Bracket
18	WP3390631 Whirlpool Screw
19	Foot, leveling (4)
20	Plate, Frame Cover
21	Lock Washer No.10 Ext. Shake- proof
22	Screw, 6 x 3/8 (2)
23	Plate, Top Front
24	Bushing (2)
25	Strain Releif
26	WPL 4159031
28	4162660 Whirlpool Compactor Door Strike
29	Spring, Track (4)
30	Screw, 1/4-20 x 3/8 (4)
31	Nut, 1/4-20 (4)
32	Washer (4)
33	4162448 Whirlpool Compactor Slide Kit
34	Screw, 10-32 x 3/8 (2)
35	WP776338 Whirlpool Compactor Nut
36	Bin, Litter
