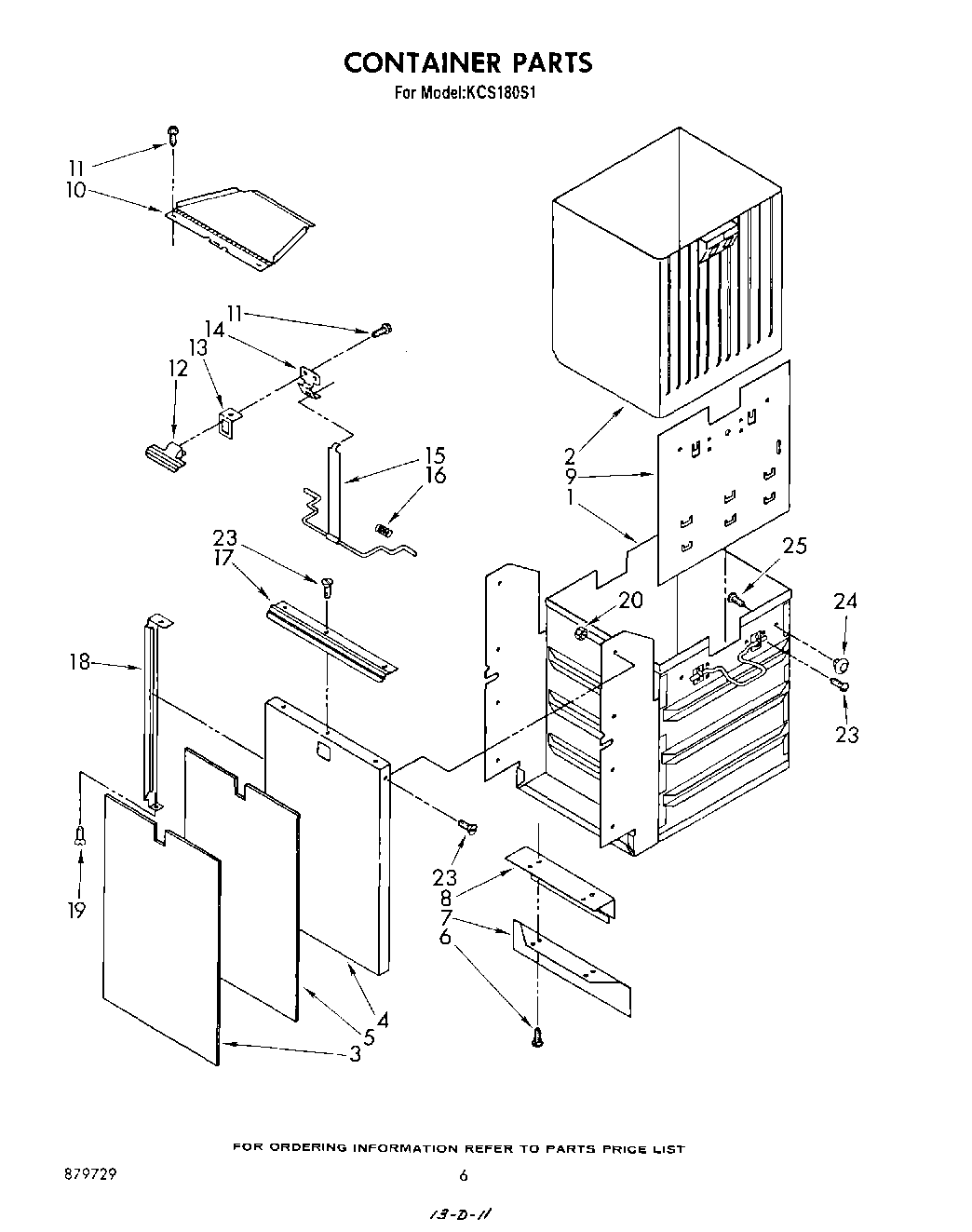

KCS180S1 04 – CONTAINER

Products

Position	Product
1	Container
2	Liner, Container
3	Panel, Container (White & Almond)
3	Panel, Container (Harvest Gold & Black)
4	Front, Container
5	Filler, Panel
6	WP3390631 Whirlpool Screw
7	Plate, Toe
8	Bracket, Toe Plate
9	Plate, Releif
10	Cover, Storage
11	WP4159387 Whirlpool Compactor Screw
12	Handle, Pull
13	Bezel, Handle
14	Bracket, Handle
15	Latch, Container
16	Spring, Latch (Left Side)
16	Spring, Latch (Right Side)
17	Handle, Container
18	Trim, Front (Bottom)
18	Trim, Front (Left Side)
18	Trim, Front (Right Side)
19	Screw, 6 X 1/4
20	WP776338 Whirlpool Compactor Nut
23	Screw, 10-32 x 5/16 (2)
24	Retainer, Bag (4)
25	Screw
