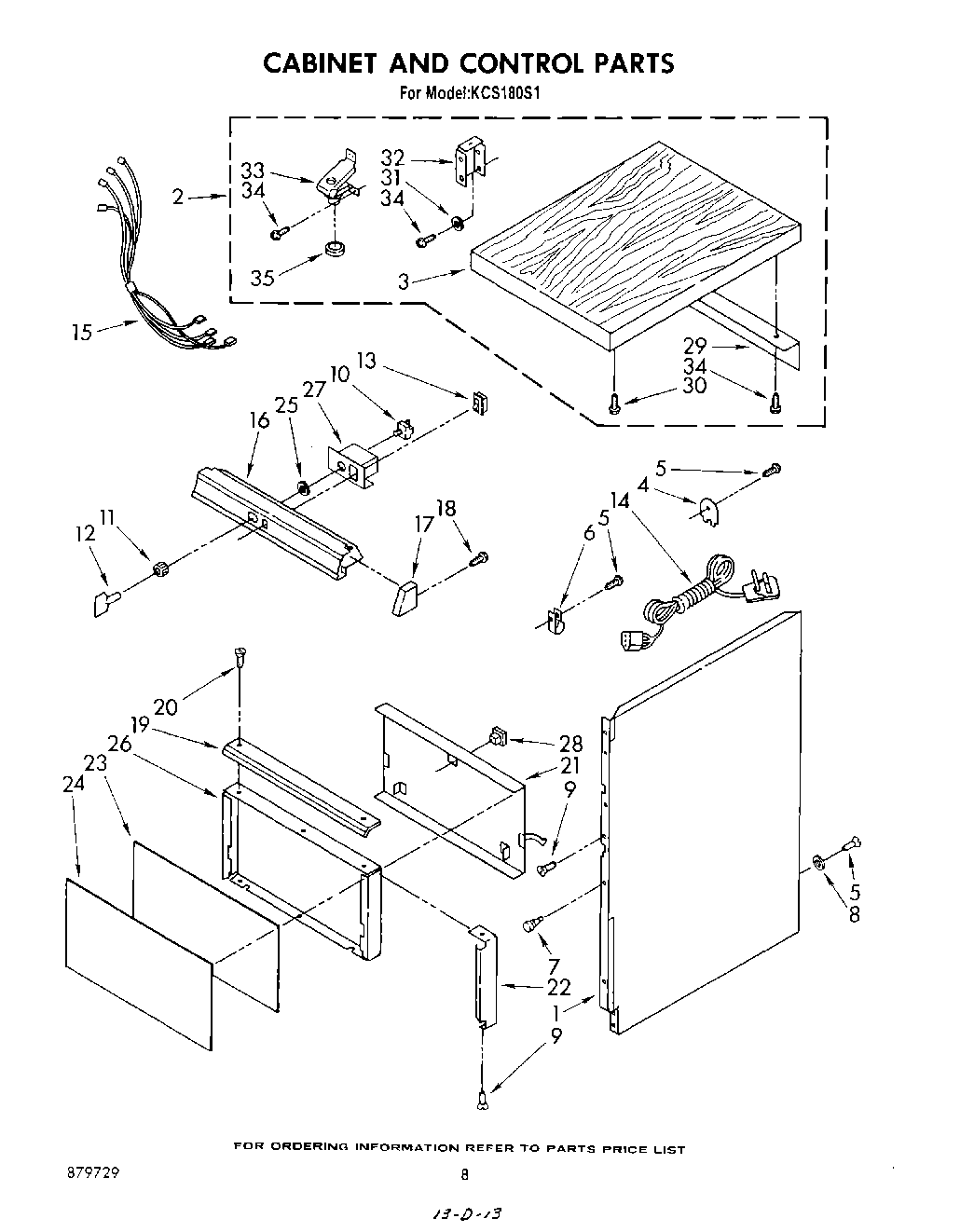

KCS180S1 05 – CABINET AND CONTROLadmin2025-04-26T12:36:47+00:00KCS180S1 05 – CABINET AND CONTROL
Products
| Position | Product |
|---|
| 1 | Panel, Cabinet (Left Side) |
| 1 | Panel, Cabinet (Right Side) |
| 1 | Panel, Cabinet (Back) |
| 2 | Freestanding, Conversion Kit |
| 3 | Top, Wood |
| 4 | Plate, |
| 6 | Clamp, Wire |
| 7 | Bumper, Door (2) |
| 9 | WP4159387 Whirlpool Compactor Screw |
| 10 | Switch, Rotary |
| 11 | Nut, Switch |
| 12 | WP241877 Whirlpool Screw |
| 13 | Switch, Rocker |
| 14 | Cord, Power |
| 15 | Harness, Wiring (Motor Drive To Directional Switch) |
| 15 | Harness, Wiring (Power Distribution) |
| 15 | Harness, Wiring (Interlock To Bypass) |
| 15 | Harness, Wiring (Main Harness) |
| 15 | Harness, Wiring (Rocker Switch To Fan Motor) |
| 15 | Harness, Wiring (Ram Switch To Key) |
| 16 | Escutcheon, Control |
| 17 | End Cap (Right Side) |
| 17 | End Cap (Left Side) |
| 18 | Screw, 4 x 1/4 (4) |
| 19 | Handle, Container |
| 20 | Screw, (2) |
| 21 | Panel, Litter Bin Rear |
| 22 | Trim, Litter Bin (Right Side) |
| 22 | Trim, Front (Bottom) |
| 22 | Trim, Litter Bin (Left Side) |
| 23 | Filler, Bin Panel |
| 24 | Insert, Door (Almond & White) |
| 24 | Insert, Door (Harvest Wheat & Onyx Black) |
| 25 | Washer |
| 26 | Top, Bin |
| 27 | Barrier, Switch |
| 28 | 4162660 Whirlpool Compactor Door Strike |
| 29 | Bracket, Wood top |
| 30 | 681615 Whirlpool Screw |
| 31 | Lock Washer No.10 Ext. Shake- proof |
| 32 | Block, Leveling Leg (Right Side) |
| 32 | Block, Leveling Leg (Left Side) |
| 33 | Bracket, Foot (4) |
| 34 | Screw |
| 35 | Clip, Foot (4) |
