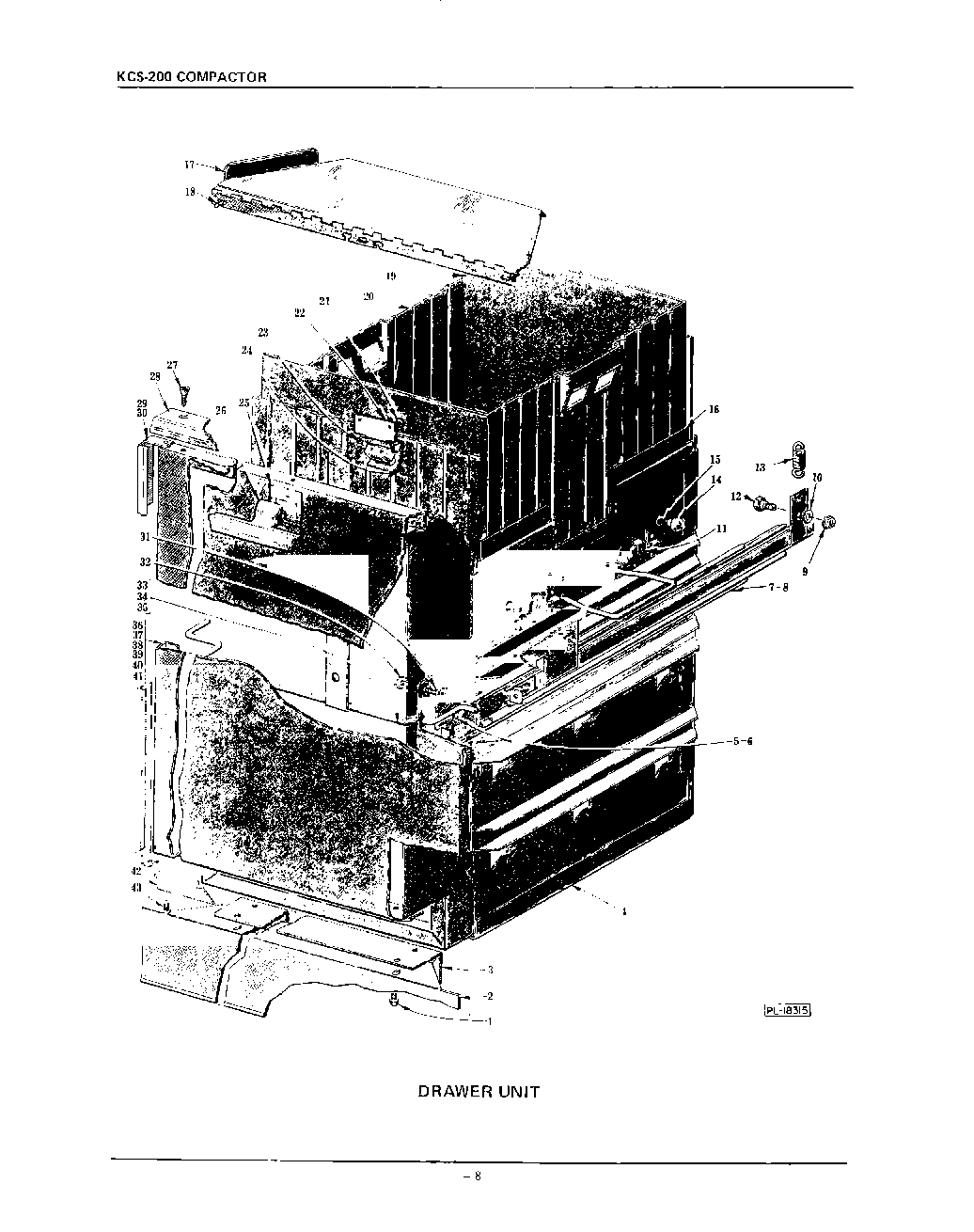

| 1 | Screw & Washer Assy. - No.10-32 x 3/8`` Phil. Hex Hd., Type AB |
| 2 | Kickboard |
| 3 | Plate - Kickboard Support |
| 4 | Drawer Assy |
| 5 | Mach. Screw - No.10-32 x 3/8`` Phil. Flat Hd |
| 7 | Drawer Track Assy (R.H.) |
| 8 | Drawer Track Assy (L.H.) (Not Shown) |
| 9 | Lock Nut - 1/4``-20 Flange ``Whiz-Lock`` |
| 10 | Washer |
| 11 | Self-Tapping Screw - No.10-32 x 5/16`` Phil. Rd. Hd., Type F |
| 12 | Shoulder Screw - Special |
| 13 | Spring - Drawer |
| 14 | Retainer - Poly Bag |
| 15 | Self-Tapping Screw No.8 x 5/16`` Phil. Rd. Hd., Type BF |
| 16 | Pressure Relief Plate & Screw Assy. (Incls. item No.11) |
| 17 | Hinge & Storage Cover Assy |
| 19 | Liner - Drawer (Inner) |
| 20 | Liner - Drawer (Outer) |
| 21 | Self-Tapping Screw 10-16 x 3/8 Phil. Truss Hd., Type AB |
| 22 | Hinge & Handle Mtg Brkt Assy (Incls item No.23) |
| 23 | Nut - Push |
| 24 | Self-Tapping Screw - No.10-24 x 3/8`` Phil. Pan Hd., Type TT |
| 25 | Bezel - Drawer Panel Handle Trim |
| 26 | Handle - Drawer |
| 27 | Self-Tapping Screw - No.10-32 x 5/16`` Phil. Undercut Flat Hd., Type TT |
| 27 | D-11 |
| 28 | Handle - Pull |
| 29 | Trim - Drawer (L.H.) |
| 30 | Trim - Drawer (R.H.) (N |
| 31 | WPL SC7118 |
| 32 | Lock Nut No.10-32 Flange ``Whiz-Lock`` |
| 33 | WPL C240763 |
| 34 | WPL C241562 |
| 35 | WPL C241563 |
| 36 | WPL D24058711 |
| 37 | WPL C241773 |
| 38 | xKit - Panel Insert (Fresh Avocado/Coffee) |
| 39 | xKit - Panel Insert (SST) |
| 40 | xKit - Panel Insert (Almond/White) |
| 41 | xKit - Panel Insert (Harvest Wheat/Onyx Black) |
| 42 | Trim - Bottom |
| 43 | WPL SD3354 |
