KCS200E 03 – MOTOR

Written by

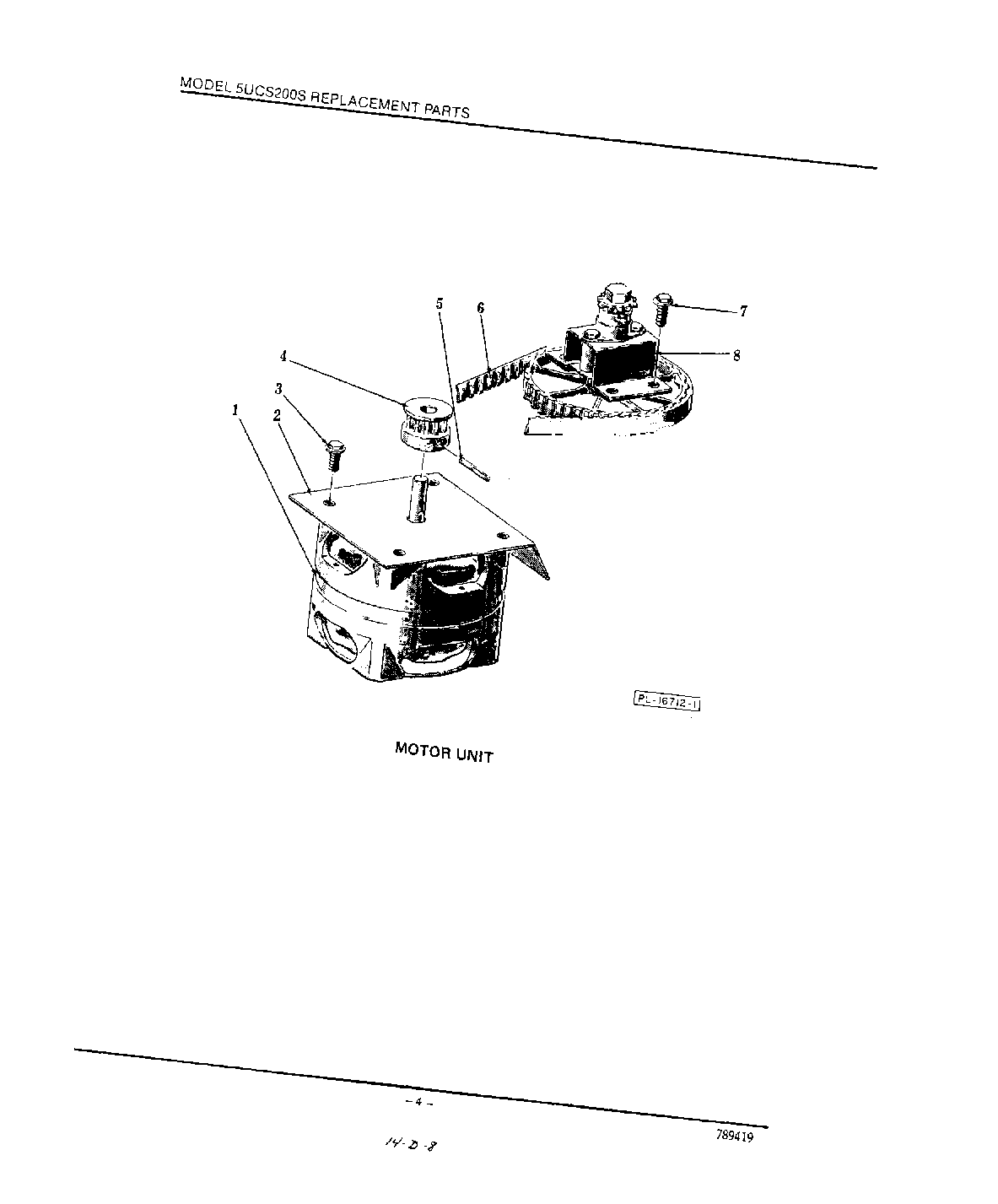

KCS200E 03 – MOTOR

Products

Position	Product
1	Motor Assy. (Incls. items No.2, 3, 4 & 5)
2	Deflector – Debris
4	Pulley – Gear Belt
5	Spiral Pin-3/16“ Dia. x 1-1/2“ Lg
6	Belt – Drive
7	Mach. Screw – 5/16“-18 x 1/2“ Hex Flange Hd. “Whiz- Lock“
8	Ram Drive Sprocket Mount Assy
