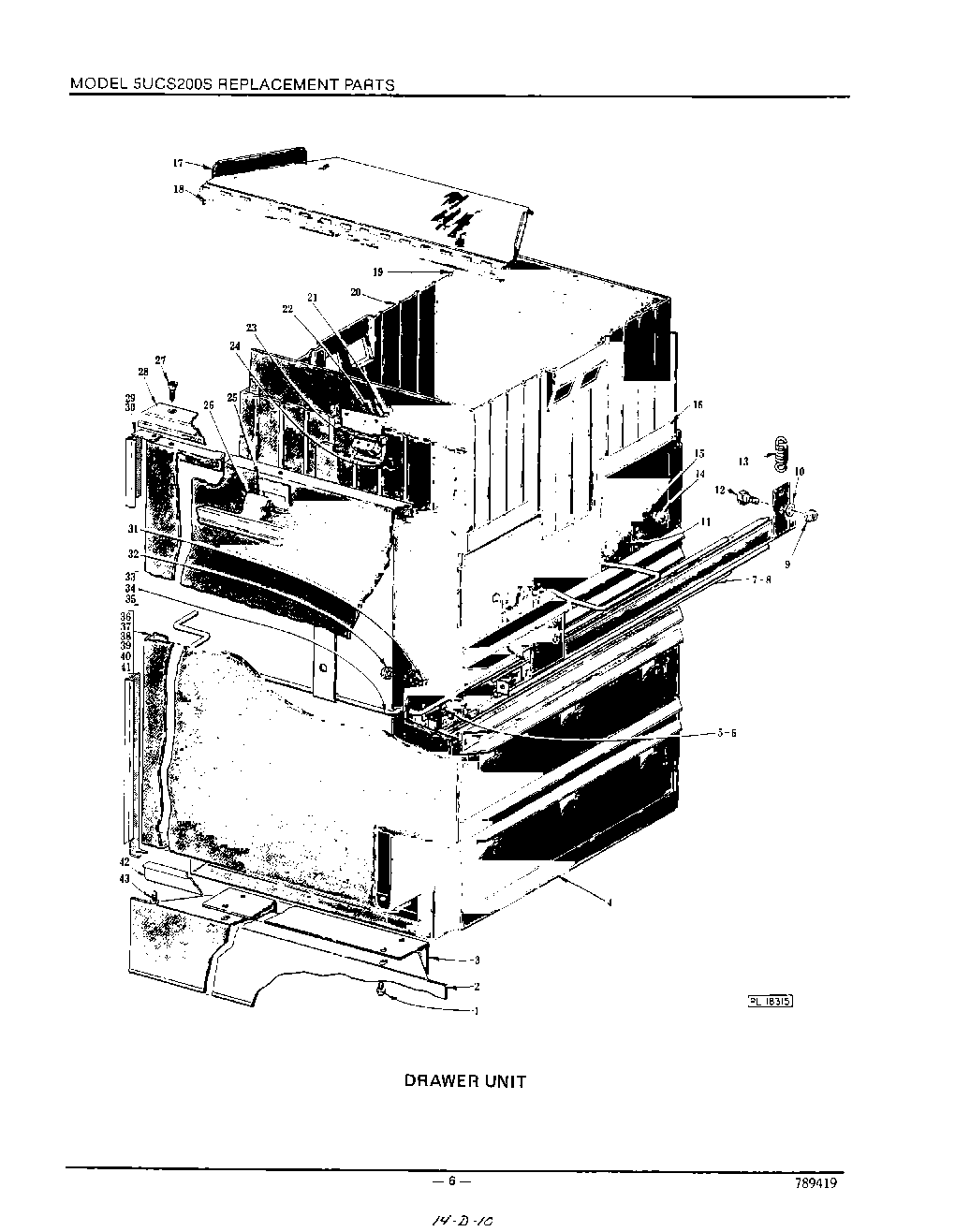

KCS200E 05 – DRAWER

Products

Position	Product
1	Screw & Washer Assy. – No.10-32 x 3/8“ Phil. Hex Hd., Type AB
2	Kickboard
3	Plate – Kickboard Support
4	Drawer Assy
5	Mach. Screw – No.10-32 x 3/8“ Phil. Flat Hd
7	Drawer Track Assy (R.H.)
8	Drawer Track Assy (L.H.) (Not Shown)
9	Lock Nut – 1/4“-20 Flange “Whiz-Lock“
10	Washer
11	Self-Tapping Screw – No.10-32 x 5/16“ Phil. Rd. Hd., Type F
12	Shoulder Screw – Special
13	Spring – Drawer
14	Retainer – Poly Bag
15	Self-Tapping Screw No.8 x 5/16“ Phil. Rd. Hd., Type BF
16	Pressure Relief Plate & Screw Assy. (Incls. item No.11)
17	Hinge & Storage Cover Assy
19	Liner – Drawer (Inner)
20	Liner – Drawer (Outer)
21	Self-Tapping Screw 10-16 x 3/8 Phil. Truss Hd., Type AB
22	Hinge & Handle Mtg Brkt Assy (Incls item No.23)
23	Nut – Push
24	Self-Tapping Screw – No.10-24 x 3/8“ Phil. Pan Hd., Type TT
25	Bezel – Drawer Panel Handle Trim
26	Handle – Drawer
27	Self-Tapping Screw – No.10-32 x 5/16“ Phil. Undercut Flat Hd., Type TT
28	Handle – Pull
29	Trim – Drawer (L.H.)
30	Trim – Drawer (R.H.) (N
31	WPL SC7118
32	Lock Nut No.10-32 Flange “Whiz-Lock“
33	WPL C240763
34	WPL C241562
35	WPL C241563
36	WPL D24058711
37	WPL C241773
38	xKit – Panel Insert (Fresh Avocado/Coffee)
39	xKit – Panel Insert (SST)
40	xKit – Panel Insert (Almond/White)
41	xKit – Panel Insert (Harvest Wheat/Onyx Black)
42	Trim – Bottom
43	WPL SD3354
