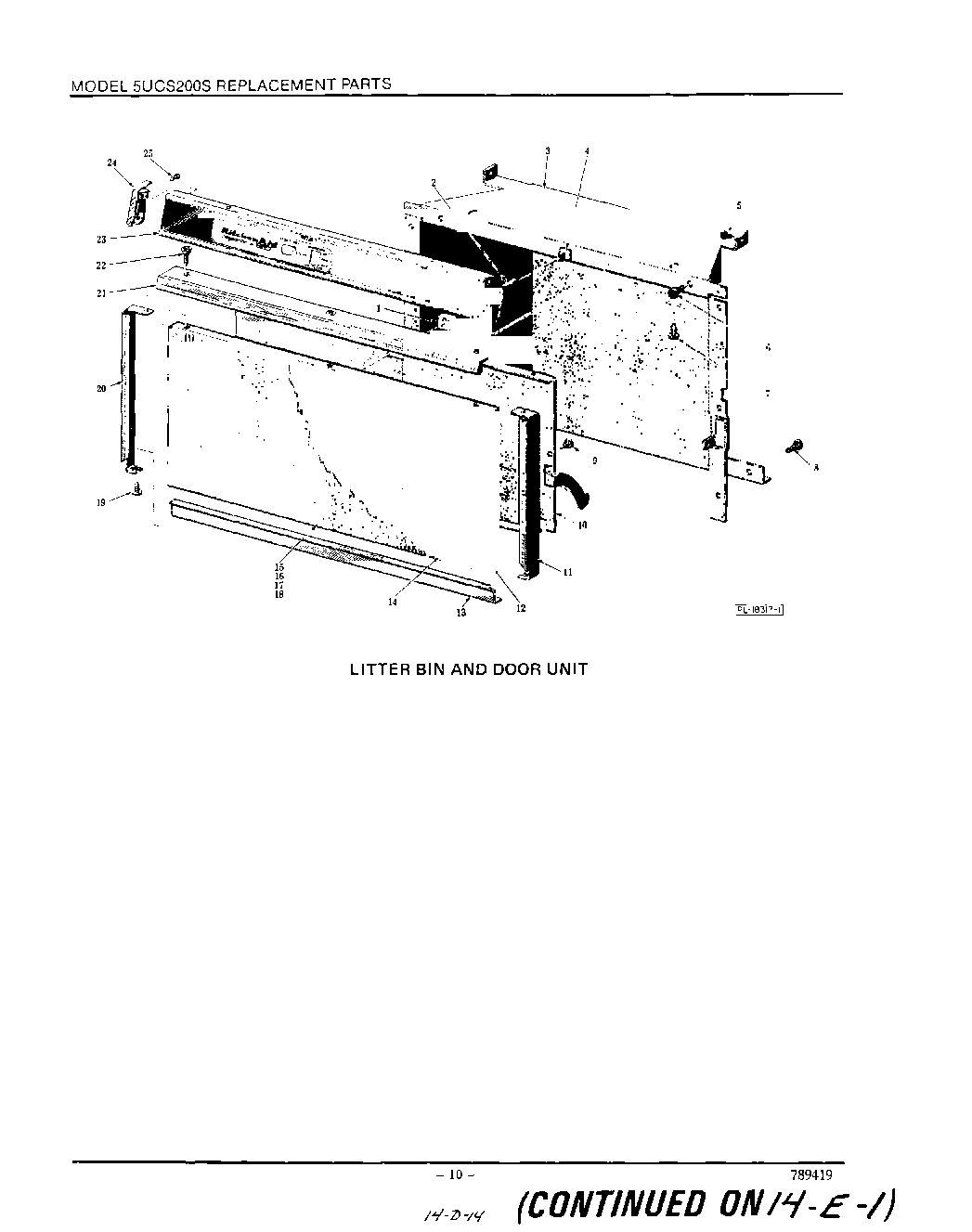

KCS200E 07 – LITTER BIN AND DOOR

Products

Position	Product
1	Catch - Door
2	End Cap - Trim Panel (R.H.)
3	Litter Bin Assy (Incls items No.4 & 6)
4	Strike & Catch Kit (Incls. item No.1)
5	Self-Tapping Screw - No.10-24 x 1/2`` Phil. Pan Hd., Type TT
6	Bumper - Rubber (Door)
7	Self-Tapping Screw 10-16 x 1/2 Phil. Rd. Hd., Type AB
8	Screw & Lock Washer Assy. - No.10 x 1/2`` Slotted Hex Hd., Type AB
10	Door Back & Stop Assy
11	Trim - Side (R.H. Door)
12	Front - Door
13	Trim - Bottom
14	Filler - Door
15	xKit - Panel Insert (Fresh Avocado/Coffee)
16	xKit - Panel Insert (SST)
17	xKit - Panel Insert (Almond/White)
18	xKit - Panel Insert (Harvest Wheat/Onyx Black)
19	Self-Tapping Screw 10-16 x 3/8 Phil. Truss Hd., Type AB
20	Trim - Side (L.H. Door)
21	Handle - Pull
22	Self-Tapping Screw - No.10-32 x 5/16`` Phil. Undercut Flat Hd., Type TT
23	Panel - Trim
24	End Cap - Trim Panel (L.H.)
25	Self-Tapping Screw - No.4 x 1/4`` Phil. Pan Hd., Type AB
25	xIncls. Drawer & Litter Bin Door Panel Inserts.
