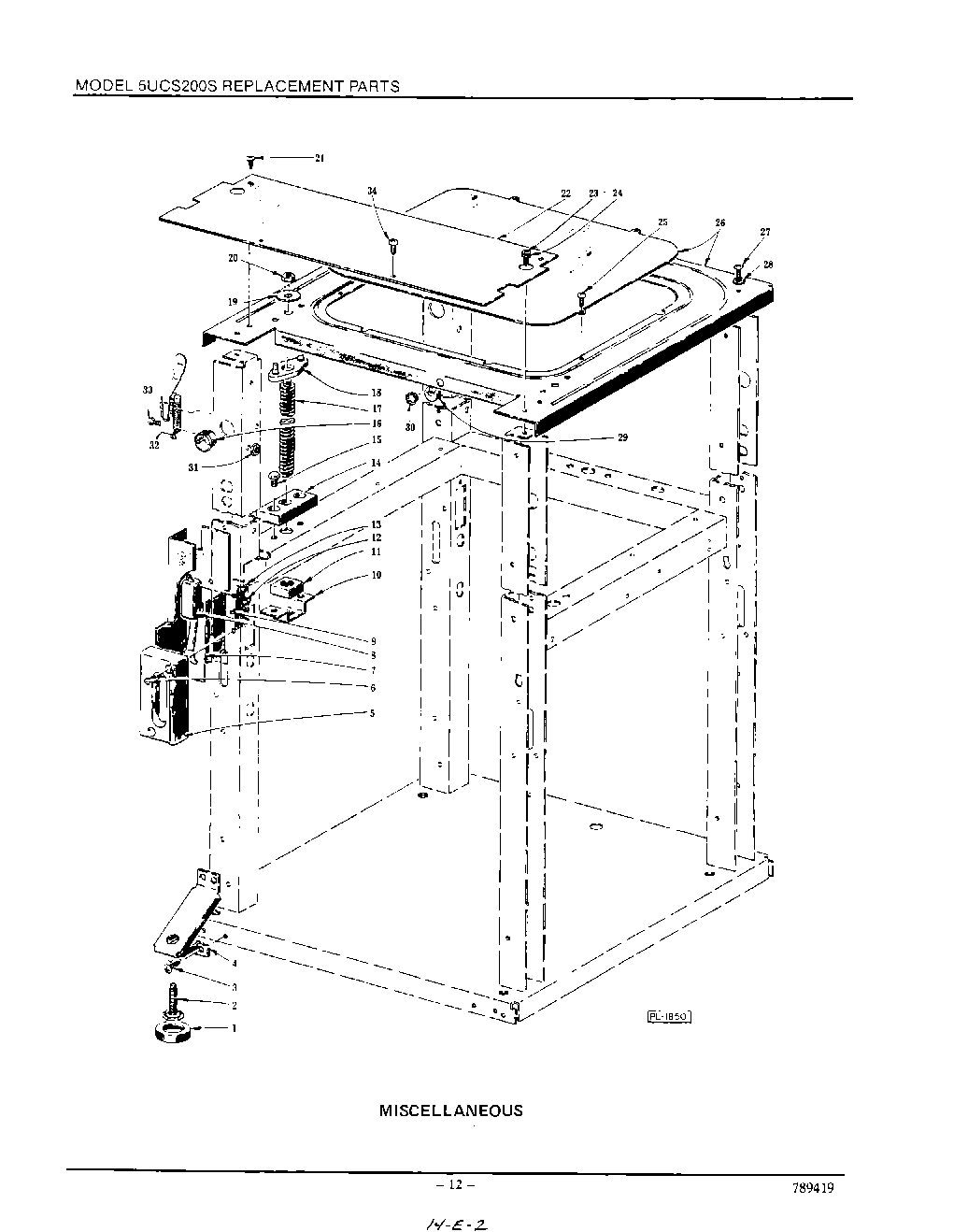

KCS200E 09 – MISCELLANEOUS

Products

Position	Product
1	xCap - Leveling Foot
2	Foot - Leveling
4	xFoot Bracket Assy
5	Block - Pilot
7	Barrier - Drawer Interlock
8	Switch - Interlock (Drawer)
9	Screw & Washer Assy. - No.10-32 x 3/8`` Phil. Hex Hd., Type AB
10	Plate - Jack Screw Retainer
11	Nut - Jack Screw Retainer
12	Self-Tapping Screw 6-32 x 7/8 Phil. Pan Hd., Type F
13	Bracket - Drawer Interlock
14	Cushion - Lower Ram Stop
15	Screw - Cushion Shoulder
16	Bushing - 3/4`` (Open/Closed)
17	Jack Screw & Nut Assy. (Incls. item No.20)
18	Cushion - Frame Top
19	Washer
20	Full Nut - 5/16``-18 Hex Fin
22	Plate - Top Front Enclosure
26	Frame Top & Cover Plate Assy (Incls item No.25)
27	Self-Tapping Screw 10-16 x 1/2 Phil. Rd. Hd., Type AB
28	Lock Washer
29	Strain Relief (Use with D-241787)
30	Bushing - 1
31	WPL NS381
32	WPL B113832
33	WPL SC964
34	WPL SD1011
34	WPL ARI80723A5
