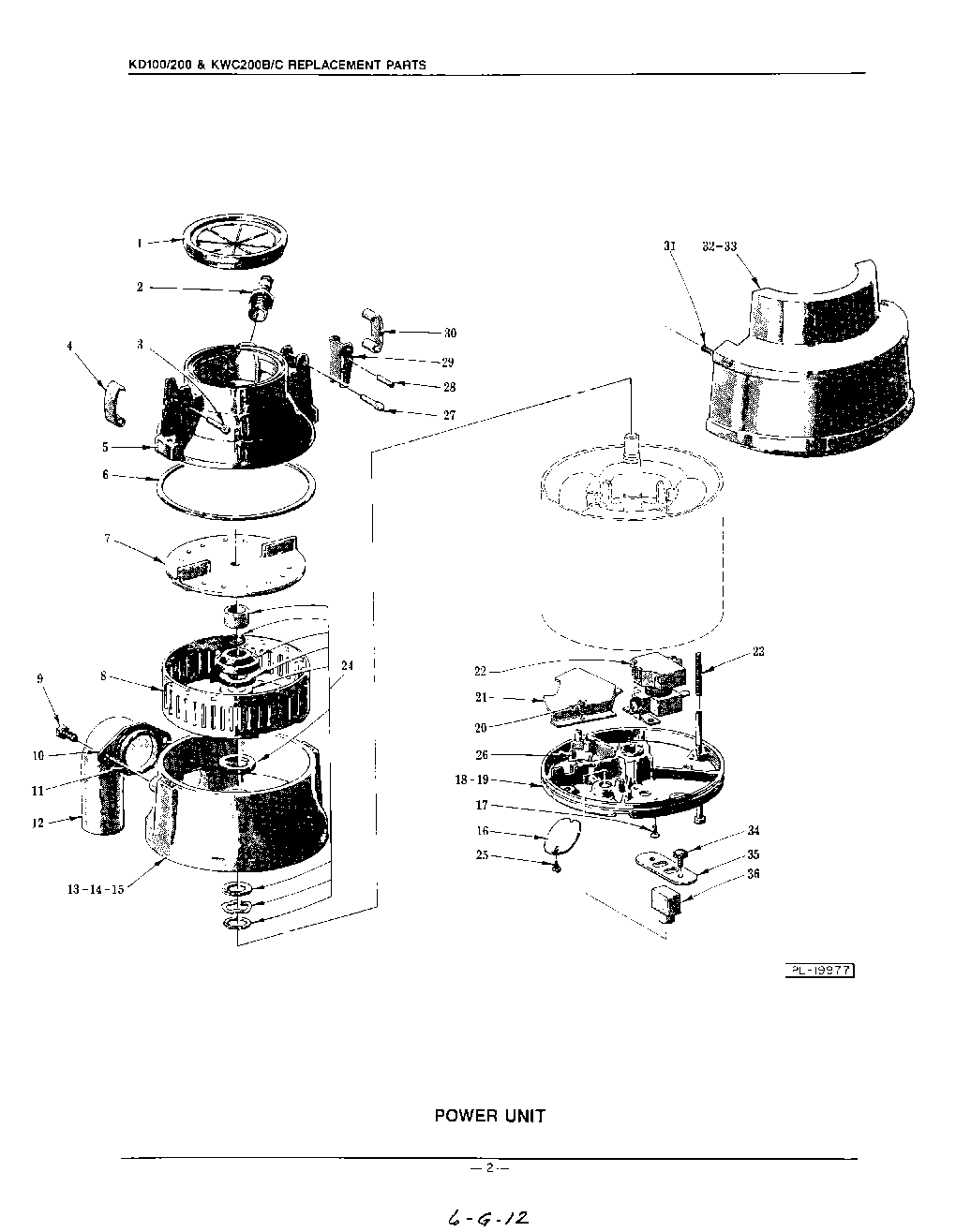

KD200 02 – SECTION

Products

Position	Product
1	Guard – Splash
2	Connector – Male Hose
5	Housing – Upper (Gray)
6	Gasket – Waist
7	Flywheel Assy
8	Ring – Shredder
9	Cap Screw – 1/4-20 x 1/2 Hex Hd
10	Flange – Spout
11	Seal – Spout
12	Spout & Seal Assy. (Incls. item 11)
13	Lower Housing Assy. (Gray) (KD100/KD200)
14	Lower Housing Assy. (Gray) (Hobart Motor) (KWC200C)
15	Lower Housing Assy. (G.E. Motor) (KWC200B/C)
16	Cover – Elec. Access
17	Mach. Screw 8-32 x 1/4 Flat Hd
18	Bearing Bracket Assy. (Gray) (Hobart Motor)
19	Bearing Bracket Assy. (G.E. Motor)
21	Barrier – Electrical Enclosure
22	Relay (115 V., 60 Hz.)
23	Screw – Stator
24	Water Seal Service Kit
25	Self-Tapping Screw 6-32 x 5/16 Phil. Pan Hd., Type T
26	Screw – Machine Grounding
27	Groov-Pin – Type C Driv-Loc, 1/8“ x 1-1/4“
28	Pin – Hinge
29	WP596669 Whirlpool Hose Clamp
30	Hook – Clamp
31	Self-Tapping Screw 6-20 x 11/16 Phil. Pan Hd., Type B
32	Shell – Sound Barrier (Front)
33	Shell – Sound Barrier (Punched) (Rear)
34	Screw Assy. (Protector)
35	Retainer – Protector
36	Protector
