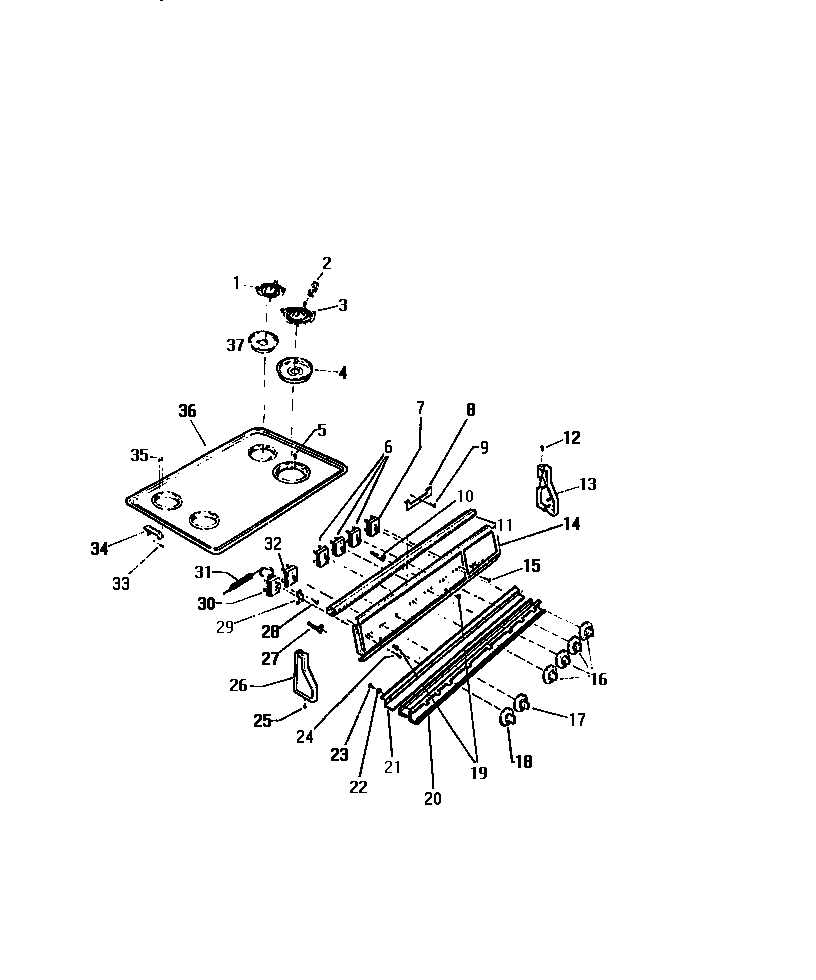

KD220GDD1 02 – TOP, CONTROL PANEL

Products

Position	Product
1	318372210 Frigidaire Oven Range 6" 1250W Surface Element
2	5303935058 Frigidaire Oven Burner Receptacle Kit
3	316442300 Frigidaire Oven 2100W Coil Element 8
4	316048413 Frigidaire Oven Range Chrome 8" Drip Bow
6	5303935086 Frigidaire Oven Top Burner Switch Kit
8	WCI K1316744
8A	WCI K1317218
9	131243700 Frigidaire Screw
11	WCI K1316506
13	WCI K1316502
14	WCI K5089501
15	SCREW
16	WCI K5088101
17	WCI K5088107
18	WCI K5088104
19	LENS
20	WCI K1319752
21	WCI K1324928
22	WCI KGM9423534
24	SCREW - THERMO BRACKET 6-32 X 3/16 (2)
25	WCI K1164566
26	WCI K1316503
27	PILOT LIGHT, OVEN, 250 V
28	SCREW
29	BRACKET
30	THERMOSTAT
31	WCI K1305350
32	SWITCH SELEC.
33	WCI K1164550
34	WCI K1317482
35	5308014215 Frigidaire Oven Screw
36	WCI K1317553
37	316048414 Frigidaire Oven Range Chrome 6" Drip Bowl
