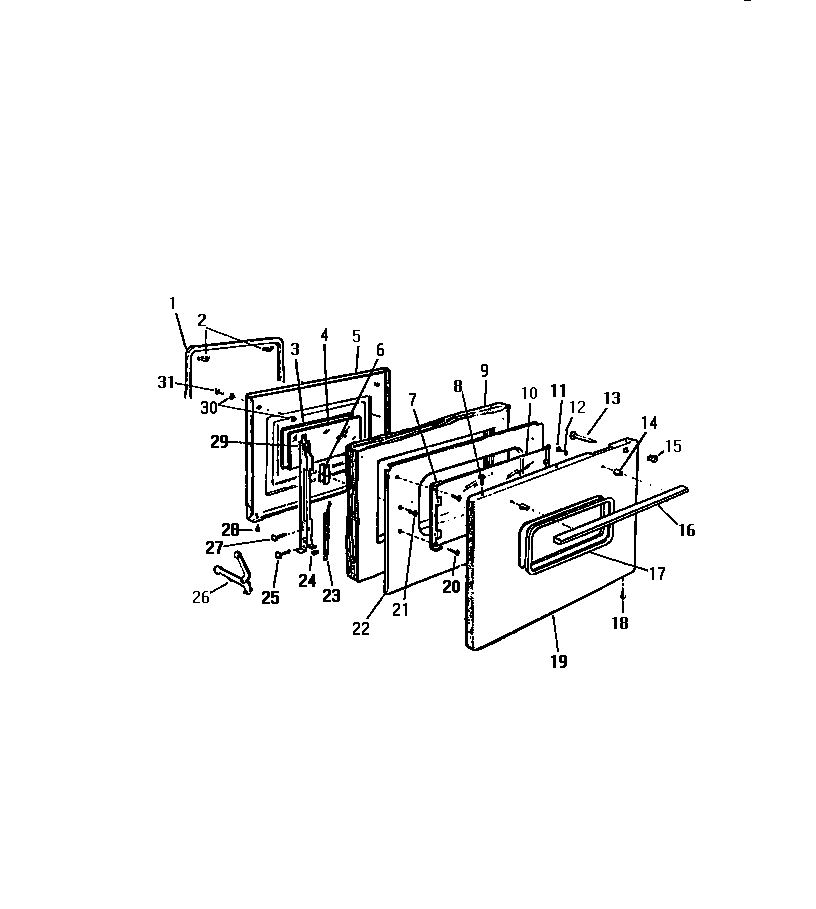

KD220GDF1 03 – DOOR

Products

Position	Product
1	GASKET (WITH CLIPS)
2	WCI K1309666
3	WCI K1325686
4	GLASS – INNER DOOR
5	WCI K1325500
6	WCI K1325510
7	WCI K1325270
9	WCI K1325629
10	WCI K1325512
11	WCI K5104201
12	WCI Q410505
13	WCI K1313983
14	SPACER (2)
15	WCI K1310071
16	HANDLE – DRAWER (CHROME)
17	MOULDING OUTER GLASS
19	PANEL-DOOR (COFFEE)
20	08002868 Frigidaire 0 Screw Assembly
22	WCI K1325509
23	SPRING
24	ROLLER PACKAGE-OVEN DOOR (2)
25	AXLE
26	ARM ASSY.
27	RIVET
29	CHANNEL ASSY (COMPLETE W/ROLLER & STUD)
30	WASHER, PADDED
31	WCI K1164550
