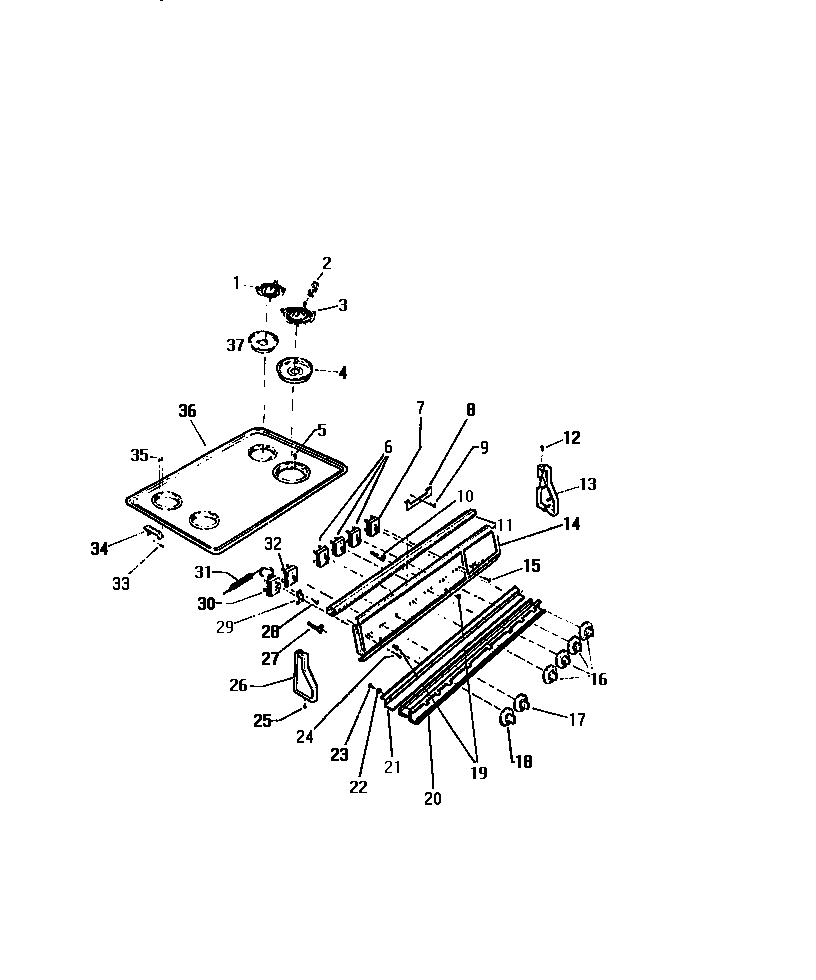

KD220GDH1 02 – TOP, CONTROL PANEL

KD220GDH1 02 – TOP, CONTROL PANEL

Written by

in

KD220GDH1 02 – TOP, CONTROL PANEL

Products

PositionProduct
1318372210 Frigidaire Oven Range 6" 1250W Surface Element
25303935058 Frigidaire Oven Burner Receptacle Kit
3316442300 Frigidaire Oven 2100W Coil Element 8
4316048413 Frigidaire Oven Range Chrome 8" Drip Bow
65303935086 Frigidaire Oven Top Burner Switch Kit
8WCI K1316744
8AWCI K1317218
9131243700 Frigidaire Screw
11WCI K1316506
13WCI K1316502
14WCI K5089501
15SCREW
16WCI K5088101
17WCI K5088107
18WCI K5088104
19LENS
20WCI K1319752
21WCI K1324928
22WCI KGM9423534
24SCREW – THERMO BRACKET 6-32 X 3/16 (2)
25WCI K1164566
26WCI K1316503
27PILOT LIGHT, OVEN, 250 V
28SCREW
29BRACKET
30THERMOSTAT
31WCI K1305350
32SWITCH SELEC.
33WCI K1164550
34WCI K1317482
355308014215 Frigidaire Oven Screw
36WCI K1317552
37316048414 Frigidaire Oven Range Chrome 6" Drip Bowl
